TSC TTP-345 Programming Manual

TSC AUTO ID Technology Co., Ltd. 53 Copyright 2013 All Rights Reserved.
Example
Sample code

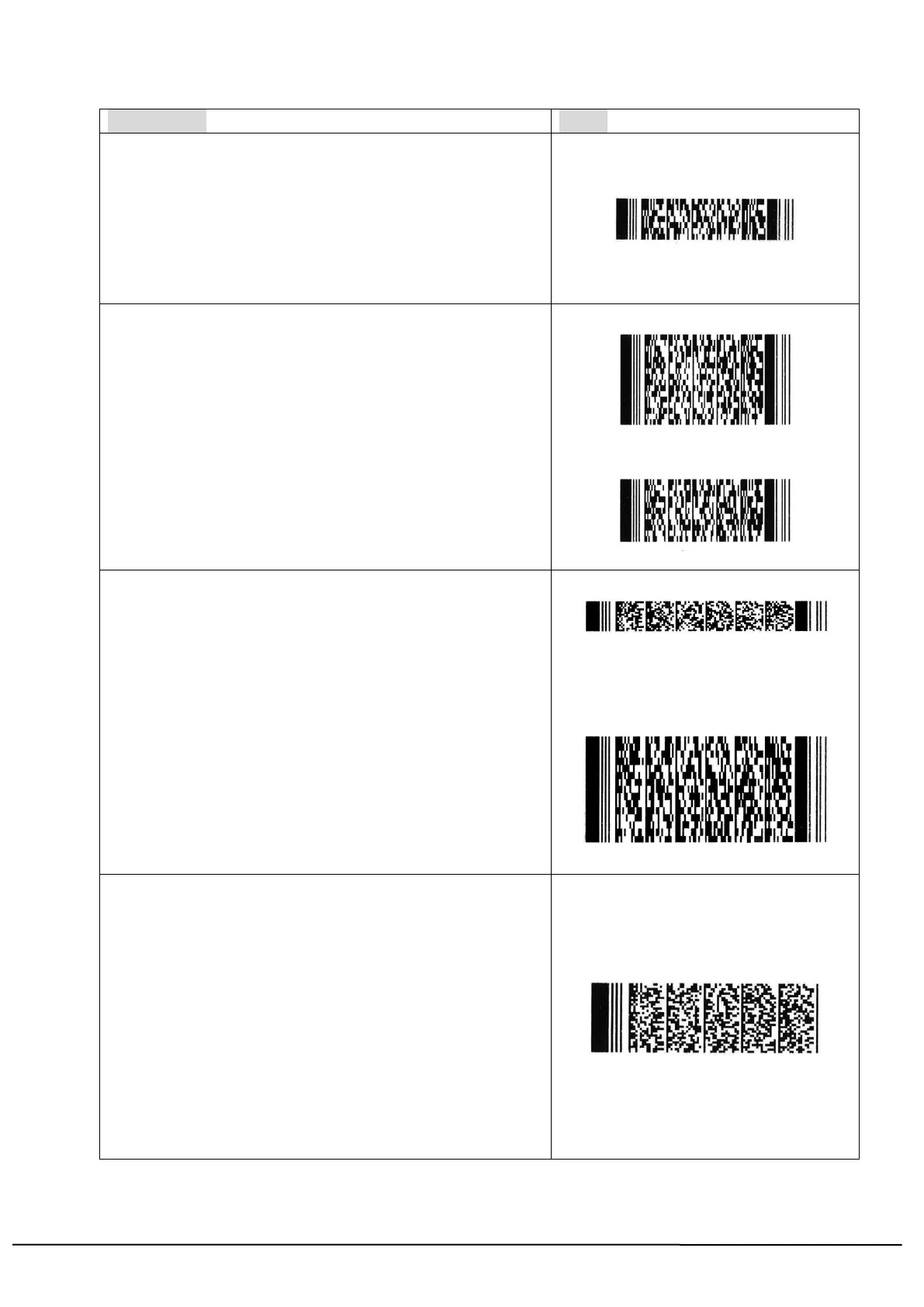

Result
SIZE 4,1
GAP 0,0
DIRECTION 1
REM *****WITHOUR OPTIONS*****
CLS
PDF417 50,50,400,200,0,"Without Options"
PRINT 1,1
SIZE 4,1.5
GAP 0,0
DIRECTION 1
REM *****OPTION:E3*****
CLS
PDF417 50,50,400,200,0,E3,"Error correction level:3"
PRINT 1,1
REM *****OPTION:E4*****
CLS
PDF417 50,50,400,200,0,E4,"Error correction level:4"
PRINT 1,1
SIZE 4,1.5
GAP 0,0
DIRECTION 1
REM *****OPTION:E4 W4*****
CLS
PDF417 50,50,600,600,0,E4,W4,"Error correction level:4 module
width 4 dots"
PRINT 1,1
REM *****OPTION:E4 W4 H4*****
CLS
PDF417 50,50,600,600,0,E4,W4,H4,"Error correction level:4 module
width 4 dots bar height 4 dots"
PRINT 1,1
SIZE 4,1.5
GAP 0,0
DIRECTION 1
REM *****OPTION:E4 W4 H4 R40 C4 T1*****
CLS
PDF417 50,50,800,800,0,E4,W4,H4,R40,C4,T1,"Error correction
level:4
Module Width 4 dots
Bar Height 4 dots
Maximum Number of Rows:5 Rows
Maximum number of columns:90 Cols
Truncation:1"
PRINT 1,1

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
