TSC TTP-345 Programming Manual

TSC AUTO ID Technology Co., Ltd. 54 Copyright 2013 All Rights Reserved.
SIZE 4,2.5
GAP 0,0
DIRECTION 1
REM *****OPTION:P1 E4 M1
U50,300,50,W4,H4,R60,C4,T0,L297*****
CLS

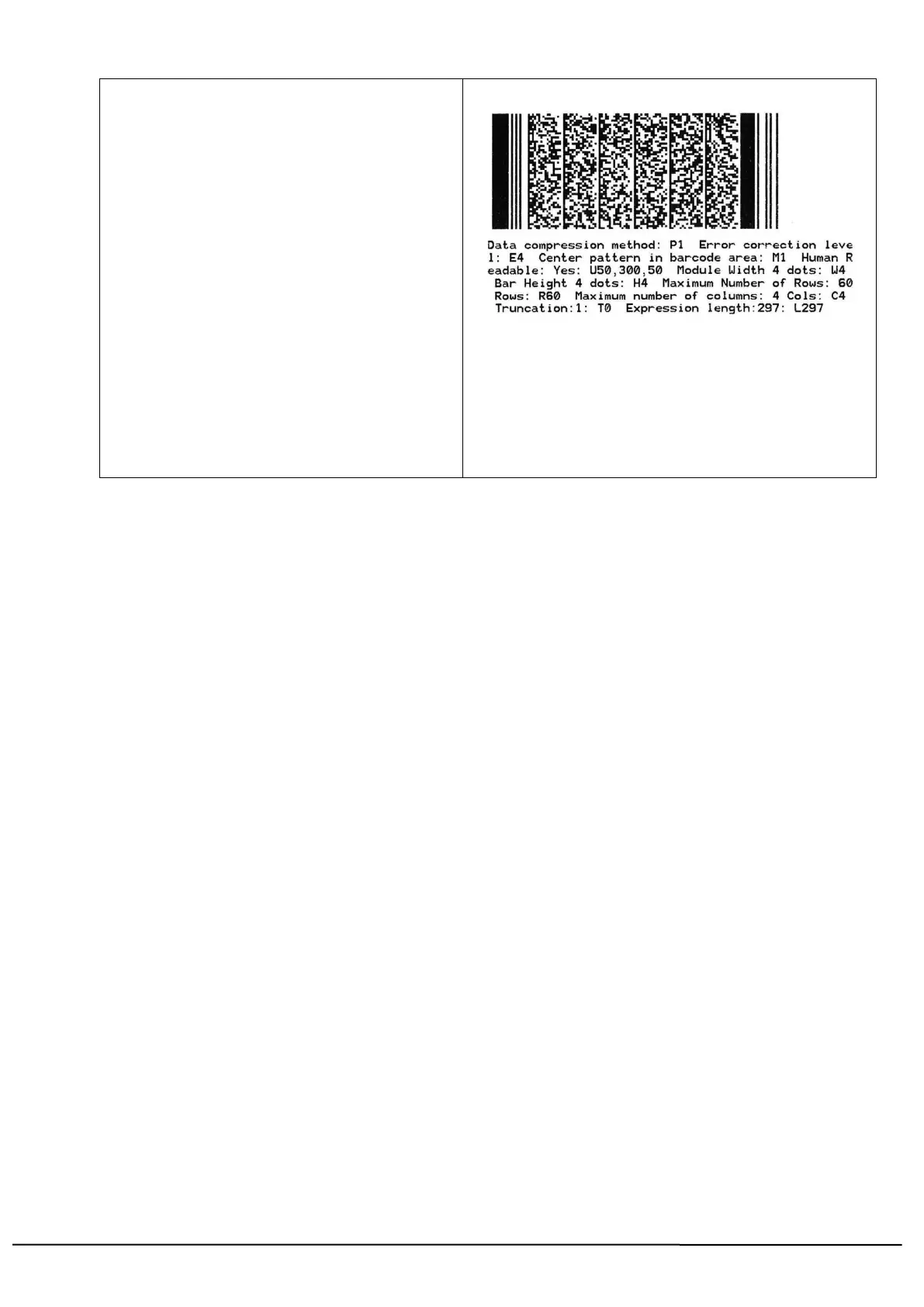

PDF417
50,50,900,600,0,P1,E4,M1,U50,300,50,W4,H4,R60,C4,
T0,L297,Data compression method: P1
Error correction level: E4
Center pattern in barcode area: M1
Human Readable: Yes: U50,300,50
Module Width 4 dots: W4
Bar Height 4 dots: H4
Maximum Number of Rows: 60 Rows: R60
Maximum number of columns: 4 Cols: C4
Truncation:1: T0
Expression length:297: L297
PRINT 1,1

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
