A-8 APPENDIX REPLACING OVEN COMPONENTS

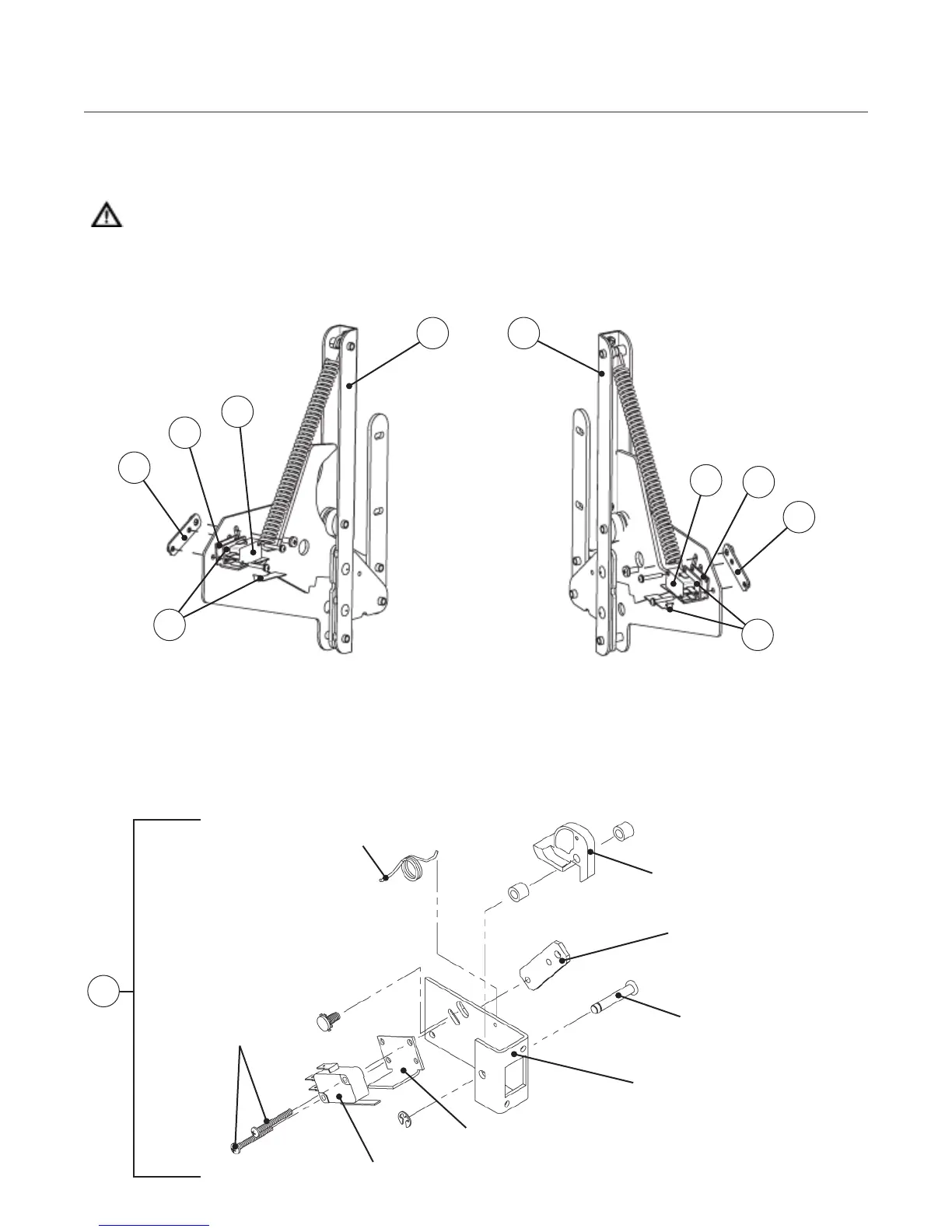

Oven Door and Related Parts
DANGER: Before removing any oven part, be sure the oven has completed “cooling down” (see
“Step 10” on page 12) and is removed from the power source.
NOTE: For clarity, some components have been removed from the illustrations below.
Bracket, Latch, Primary Switch
* When replacing the primary switch:
a.) Discard one of the switches supplied with kit NGC-3033
b.) Use the shorter screws (see Figure below)
c.) Follow all instructions in the provided field service bulletins FSB-10057 and FSB-10094
d.) Discard FSB-10055
Spring, Door Latch, Primary Switch
10
Toggle, Latch, Primary Switch
Plate, Door Switch, Primary
Pin, Clevis, 3/16 Dia x 1”, P Switch
Stop, Paddle, Door Switch, Primary
Interlock Switch (Primary)*
Use shorter screws*
5 6
8
9
12
13
15
12
13
15
To Next Page
