TurboChef Encore Touch Rapid

A-11

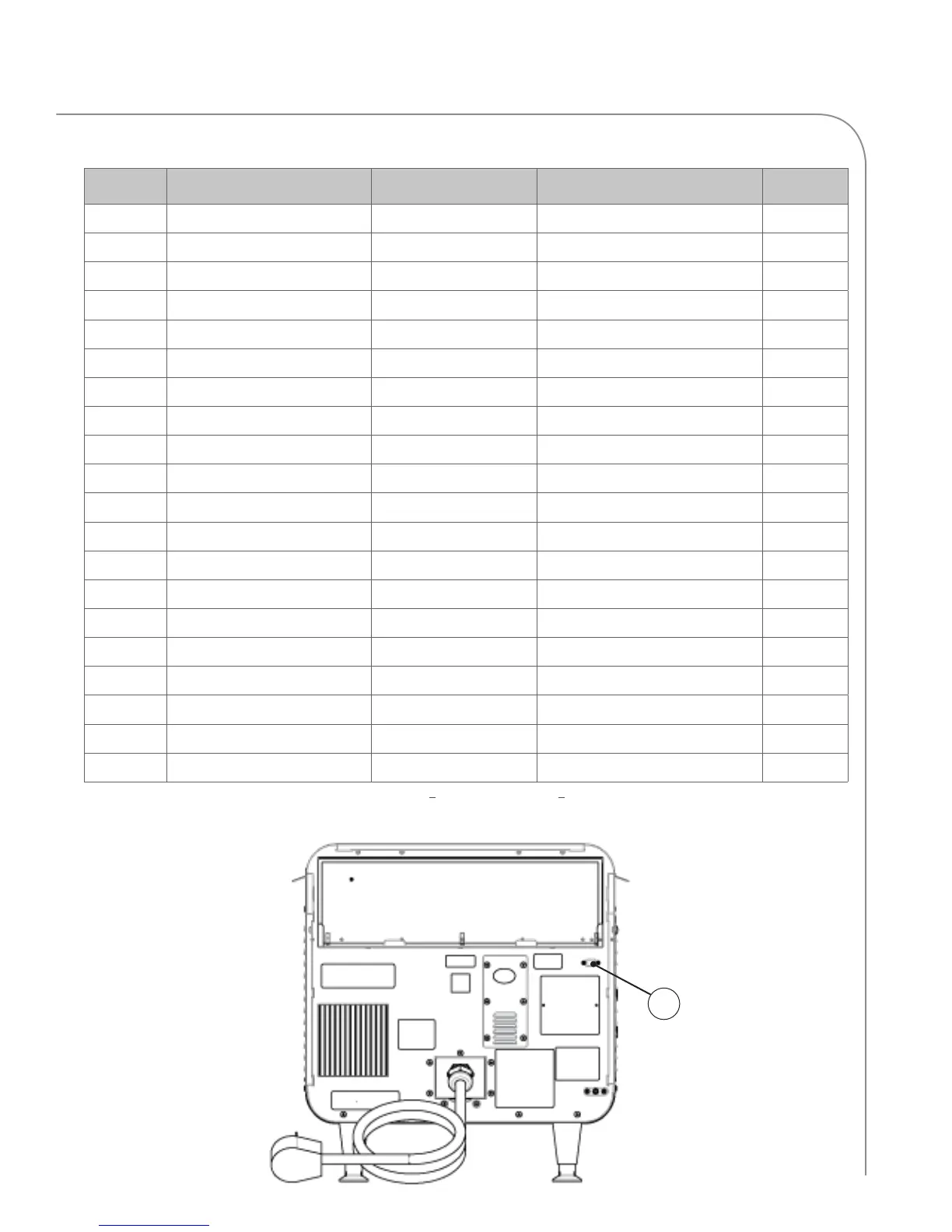

APPENDIX  REPLACING OVEN COMPONENTS
Figure
Reference #
Item Description Item Part Number Fastener Description
Fastener Part
Number
1 Bracket, Control Board, Support, LHS ENC-1570 Nut, Keps Hex, #6-32, EXT Tooth, CRES 102961 (qty 2)
2 Bracket, Control Board, Support, RHS ENC-1571 Nut, Keps Hex, #6-32, EXT Tooth, CRES 102961 (qty 2)
3 Cable, Extension, Ethernet 100164 Screw, #4-40 x .25, PPH Sems Int Tooth, SS 101520 (qty 2)
Not Shown Cable, Extension, USB 103193 None None
Not Shown Cable, Light Ring to USB/Card Reader 100182 None None
Not Shown Cable, Speaker CON-7077 None None
Not Shown Cable, Touch Screen to Control Board CON-7076 None None
4 Cover, USB Port ENC-1602 None None
5 Display, Touch Screen CON-3023*
Screw, #6-32 x 3/8 Lg, PPHD, SEMS, CRES
Washer, Lock, #10 EXT TH, CRES
102911 (qty 4)
102260 (qty 4)
Not Shown Harness, Wiring, Low Voltage ENC-1403 None None
6 Housing, Display and Controls
ENC-1501 (Housing Only)
ENC-3030 (Housing Assembly)
Screw, #8-32 x 3/8”, PFH, 100 Deg, SS
Screw, #8-32 x 5/8”, PFH, 100 Deg, SS
102809 (qty 3)
102811 (qty 2)
7 Kit, Control Board CON-3019 Screw, #6-32 x 1/4”, Int Tooth, PPH, SS 102910 (qty 2)
8 Kit, Light Ring (TurboChef) ENC-3005-1 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 4)
9 Kit, Light Ring (SUBWAY®) ENC-3005-2 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 4)
10 SD Card, Programmed CON-7096 None None
11 Speaker CON-7048 Screw, Drill PT, 6-32 x 3/8, PPH, Zinc 101684 (qty 4)
12 Speaker Gasket 104322-2 None None
13 Speaker Holder ENC-1441 Screw, #6-32 x 38 Lg, PPHD, SEMS, CRES 102911 (qty 2)
14 USB/Smart Card Reader CON-7075 Screw, #6-32 x 38 Lg, PPHD, SEMS, CRES 102911 (qty 4)
Not Shown Wire, Display Jumper, 3-Pin i1-9475 None None
*Sux determines how the display is programmed; e.g. CON-3023-4 includes the ENC-1139-4 menu.
