TurboChef Encore Touch Rapid

A-13
APPENDIX  REPLACING OVEN COMPONENTS

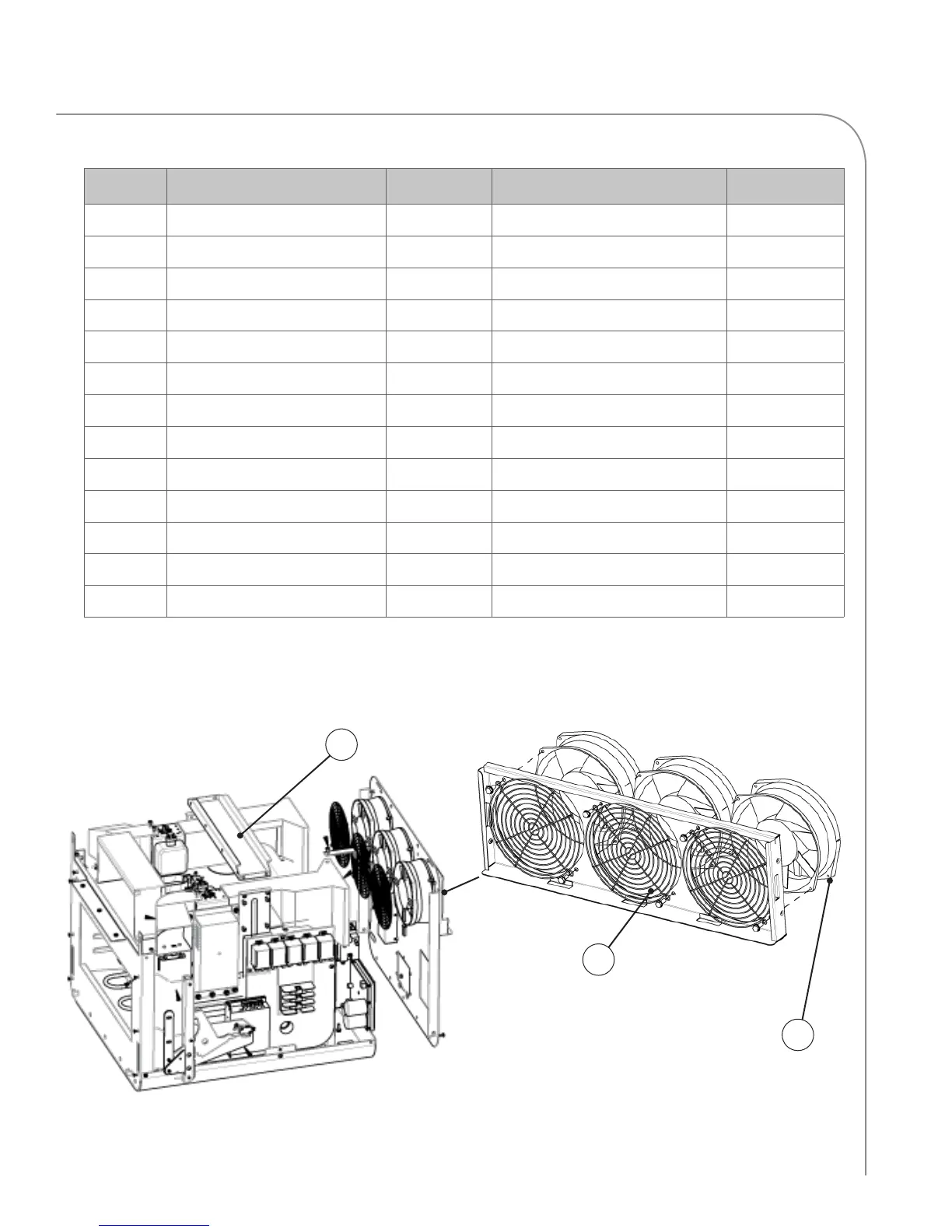

Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number
1 Bracket, Back Wall Support (Bracket Only) ENC-1374 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
2 Bracket, Cooling Duct ENC-1206 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
3 Bracket, Power Cord ENC-1388 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 7)
4
EMI Filter, 1 Ph
EMI Filter, 3 Ph
100548
100547
Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 4)
5 Fan, Cooling, Electrical Compartment TC3-0433 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
6 Finger Guard 100086 Screw, #10-32 x 1/2, Hex Wshr Hd, Type 23 101408 (qty 2 each)
7 Power Cord, 60 Hz, 208-240 VAC, 1 Ph 100187 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
8 Power Cord, 50 Hz, 220-230 VAC, 1 Ph 100195 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
9 Power Cord, 50/60 Hz, 220-230 VAC, 3 Ph 100194 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 4)
10 Power Cord, 50/60 Hz, 380-415 VAC, 3 Ph ENC-1250 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 5)
11 Power Cord, Aus/NZ, Clipsal, 400V, 3Ph ENC-1257 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 5)
12 Power Cord, Japan, 1 Ph NGC-1390 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 3)
13 Power Cord, Japan, 3 Ph NGC-1383 Nut, #10-32, Keps, Ext Tooth, SS 102963 (qty 4)
See Page A-14 and A-15 for more power components.
2
5
6
