TurboChef Encore Touch Rapid - Page 113

A-15

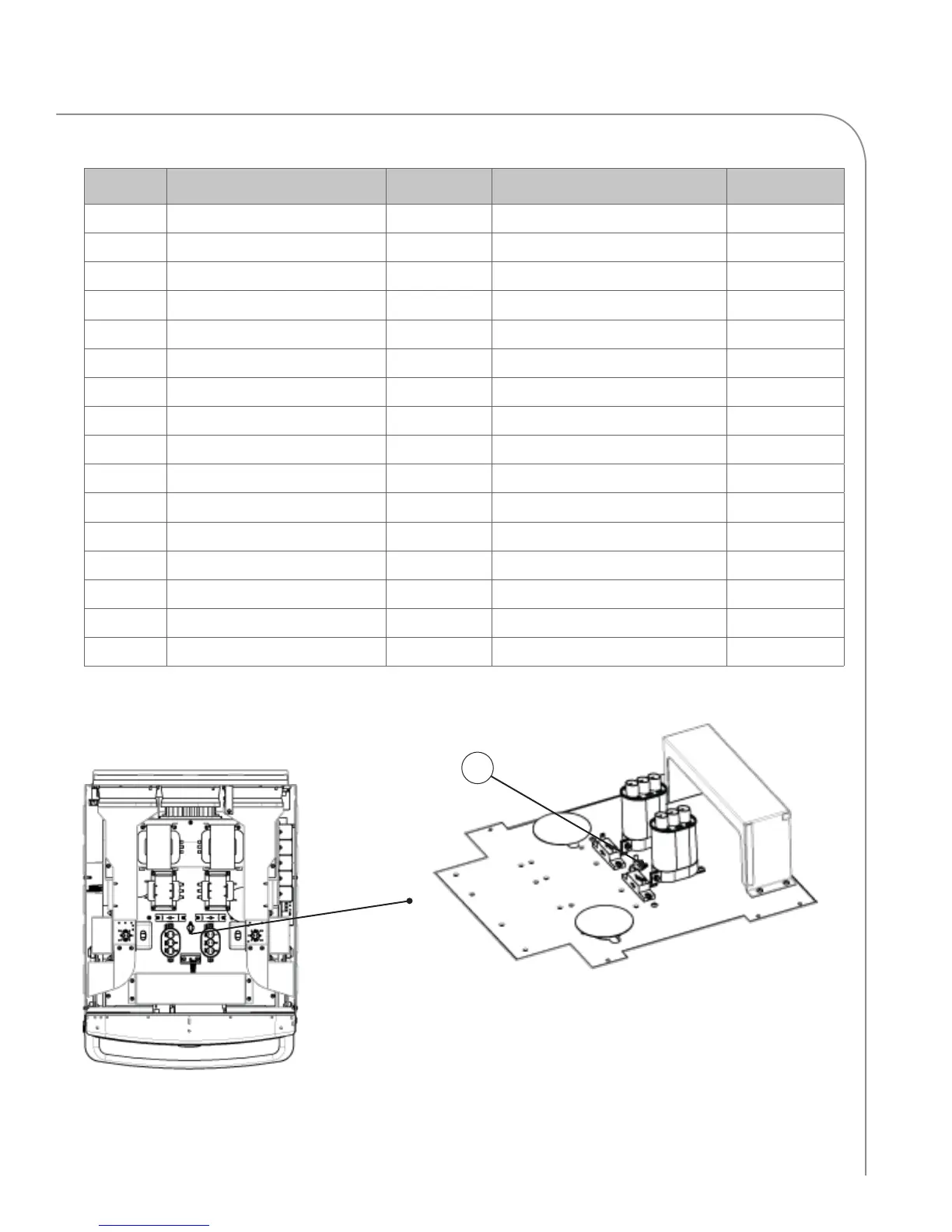

APPENDIX  REPLACING OVEN COMPONENTS
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number
1 Fuse Block, 3 Pole, 30 Amp 103566 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 2)
2 Fuse, F1, 12 amp, Class CC, ATMR 100592 None None
3 Fuse, F2, 12 amp, Class CC, ATMR 100592 None None
4 Fuse, F3, 20 amp, Class CC, ATMR 100599 None None
5 Panel, Electrical, RHS (Panel Only) ENC-1336 Screw, #8 x 1/2, Serr Ph Truss Hd, Sheet Mtl 101688 (qty 3)
6 Power Supply, 24 VDC NGC-3069 Screw, #6 x 3/8, PPHD, Drill Point, Zinc 101684 (qty 2)
7 Relay (K1 - Filament) 101273 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 1)
8 Relay (K2 - Anode) 101273 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 1)
9 Relay (K3 - Monitor) 101273 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 1)
10 Relay (K6 - Voltage) 101272 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 1)
11 Relay (K7 - Magnetron Cooling Fan) 101273 Nut, #6-32, Keps Hex, Ext Tooth, Cres 102961 (qty 1)
12 Thermostat, Cooling Fan, EC, 120F 102086 Screw, #6 x 3/8, PPHD, Drill Point, Zinc 101684 (qty 2)
13 Voltage Sensor (North America only) 100783 Screw, #6-32 x 1, PPH, SS 101580 (qty 1)
Not Shown Harness, Wiring, Heater ENC-1401 None None
Not Shown Harness, Wiring, Cooling Fan ENC-1405 None None
Not Shown Harness, Wiring, Line Voltage ENC-1404 None None
12
