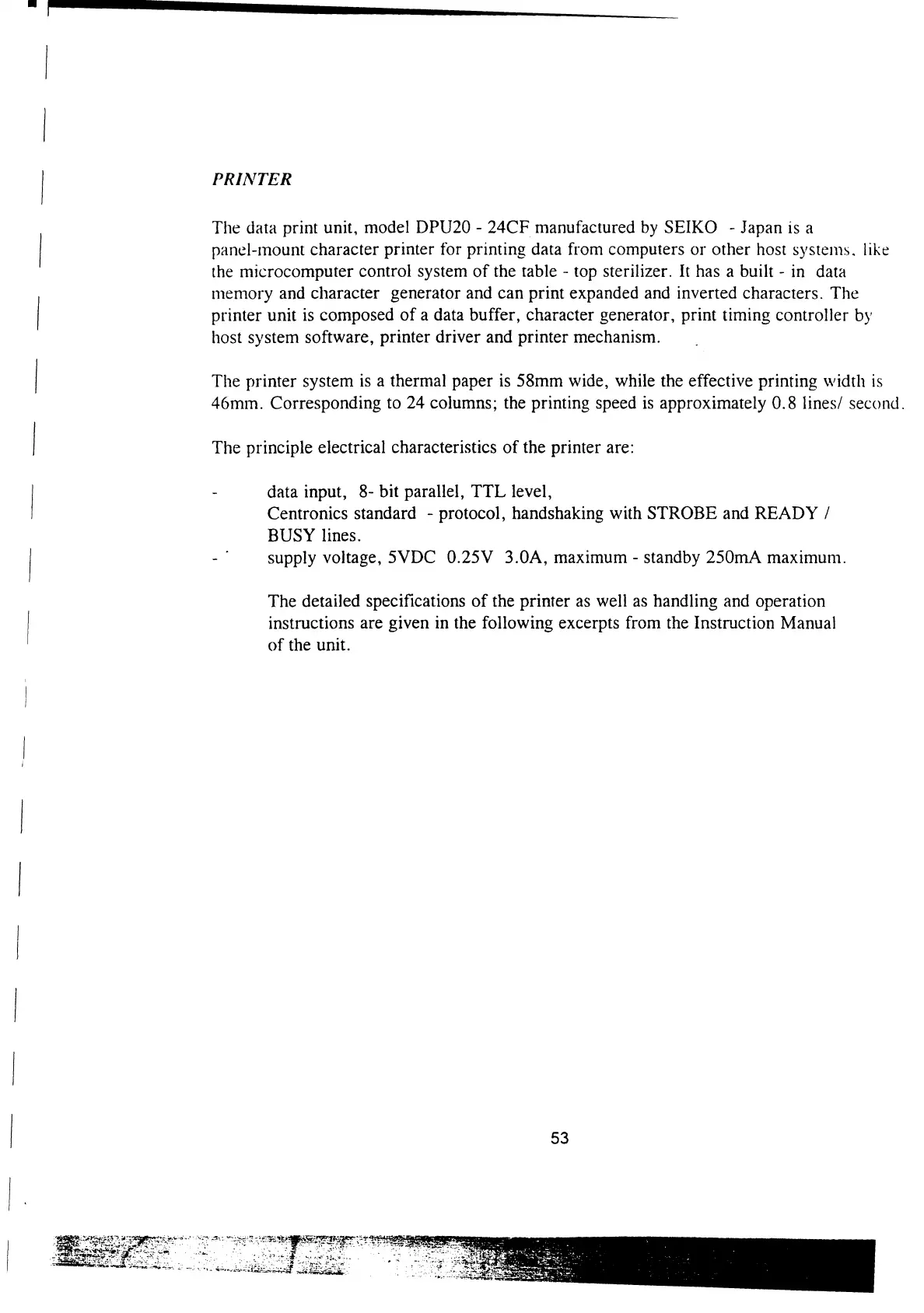

PRINTER
The
data
print
unit,
model
DPU20
-
24CF
manufactured
by
SEIKO
-
Japan
is
a
|
panel-mount
character
printer
for
printing
data
from
computers
or
other
host
systems.
like
the
microcomputer
control
system
of
the
table
-
top
sterilizer.
It
has
a
built
-
in
data
memory
and
character
generator
and
can
print
expanded
and
inverted
characters.
The
|
printer
unit
is
composed
of
a
data
buffer,
character
generator,
print
timing
controller
by
host
system
software,
printer
driver
and
printer
mechanism.
|
The
printer
system
is
a
thermal
paper
is
58mm
wide,
while
the
effective
printing
width
1s
46mm.
Corresponding
to
24
columns;
the
printing
speed
1s
approximately
0.8
lines/
second.
|
The
principle
electrical
characteristics
of
the
printer
are:
|
-
data
input,
8-
bit
parallel,
TTL
level,
Centronics
standard
-
protocol,
handshaking
with
STROBE
and
READY
/
BUSY
lines.
supply
voltage,
SVDC
0.25V
3.0A,
maximum
-
standby
250mA
maximum.
The
detailed
specifications
of
the
printer
as
well
as
handling
and
operation
|
instructions
are
given
in
the
following
excerpts
from
the
Instruction
Manual
of
the
unit.
|
