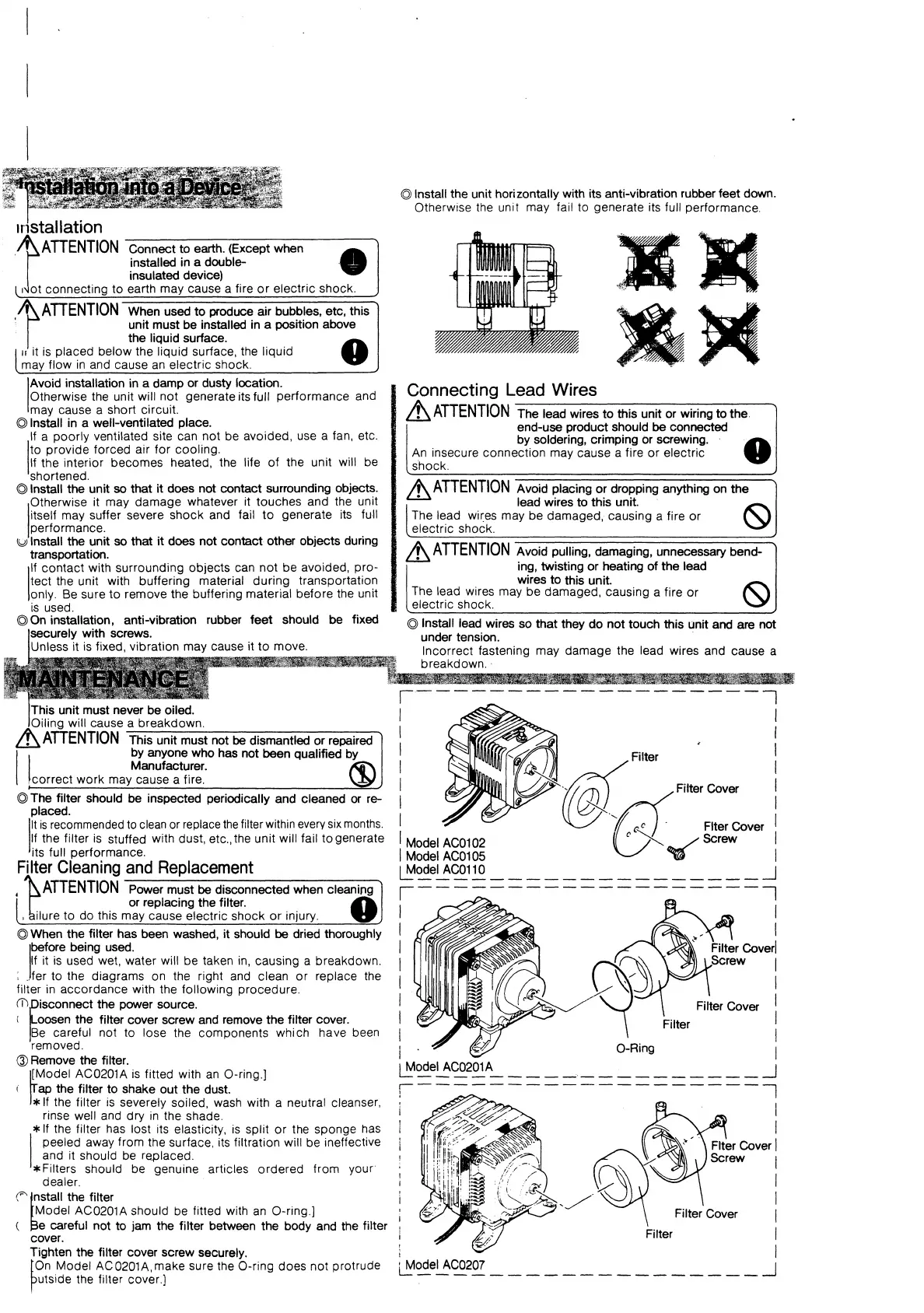

install
ATTENTION Connect to earth. (Except when
installed in a double-
insulated device) 0
| Not connecting to earth may cause a fire or electric shock. _,
ATTENTION When used to produce air bubbles, etc, this |
unit must be installed in a position above
the liquid surface.
ir itis placed below the liquid surface, the liquid O
may flow in and cause an electric shock. D
Avoid installation in a damp or dusty location.
Otherwise the unit will not generate its full performance and
may cause a short circuit.
© Install in a well-ventilated place.
lf a poorly ventilated site can not be avoided, use a fan, etc.
to provide forced air for cooling.
lf the interior becomes heated, the life of the unit will be
shortened.
© Install the unit so that it does not contact surrounding objects.
Otherwise it may damage whatever it touches and the unit
itself may suffer severe shock and fail to generate its full
performance.
U Install the unit so that it does not contact other objects during
transportation.
If contact with surrounding objects can not be avoided, pro-
tect the unit with buffering material during transportation
only. Be sure to remove the buffering material before the unit
is used.
© On installation, anti-vibration rubber feet should be fixed
securely with screws.
Unies it is fixed, vibration may cause it to move.
X
|
This unit must never be oiled.
Oiling will cause a breakdown.
AN ATTENTION ‘This unit must not be dismantled or repaired
| by anyone who has not been qualified by
Manufacturer.
‘correct work may cause a fire.
i
© The filter should be inspected periodically and cleaned or re-
placed.
It is recommended to clean or replace the filter within every six months.
If the filter is stuffed with dust, etc., the unit will fail to generate
its full performance.
Filter Cleaning and Replacement
， ATTENTION Power must be disconnected when cleaning
or replacing the filter.
ilure to do this may cause electric shock or injury.
© When the filter has been washed, it should be dried thoroughly
before being used.
If it is used wet, water will be taken in, causing a breakdown.
fer to the diagrams on the right and clean or replace the
filter in accordance with the following procedure.
(D Disconnect the power source.
( Hoosen the filter cover screw and remove the filter cover.
Be careful not to lose the components which have been
removed.
@ Remove the filter.
Tap tr AC0201A is fitted with an O-ring.]
{
1
V
ap the filter to shake out the dust.
* If the filter is severely soiled, wash with a neutral cleanser,
rinse well and dry in the shade.
* If the filter has lost its elasticity, is split or the sponge has
peeled away from the surface, its filtration will be ineffective
and it should be replaced.
*Filters should be genuine articles ordered from your
dealer. |
(© Install the filter
[Mose AC0201A should be fitted with an O-ring.]
(
cover.
Tighten the filter cover screw securely.
On Model AC0201A,make sure the O-ring does not protrude
buts the filter cover.)
e careful not to jam the filter between the body and the filter
© Install the unit horizontally with its anti-vibration rubber feet down.
Otherwise the unit may fail to generate its full performance.
i
yl
[그
>
Connecting Lead Wires
个 ATTENTION The tead wires to this unit or wiring to the.
end-use product should be connected
by soldering, crimping or screwing. | o
An insecure connection may cause a fire or electric ©
—
A
shock.
AA ATTENTION Avoid placing or dropping anything on the
lead wires to this unit. —
The lead wires may be damaged, causing a fire or N
electric shock. η
AN ATTENTION Avoid pulling, damaging, unnecessary bend- |
ing, twisting or heating of the lead
wires to this unit.
The lead wires may be damaged, causing a fire or
electric shock.
2
© Install lead wires so that they do not touch this unit and are not
under tension. |
Incorrect fastening may damage the lead wires and cause a
breakdown. :
Fiter Cover
|
Model
ACO102
Screw
|
|
|
|
Filter Cover y
|
|
| Model ACO105 |
— — — ———— --- -- — — —— —— —P— ee
Filter Cover]
Screw |
|
Filter Cover |
Filter |
|
O-Ring
NADIA ντ ο ο 으으으 으으 -
=
|
~ «ο |
q ^, - ・ SS .
E EN Fiter Cover |
| δα \ Screw |
| "IG ” ИИ,
| WS İŞ 一
| Ng Filter Cover |
Filter |
| |
| Model AC0207 0000 0000 0 0 00 0 0 2 _
