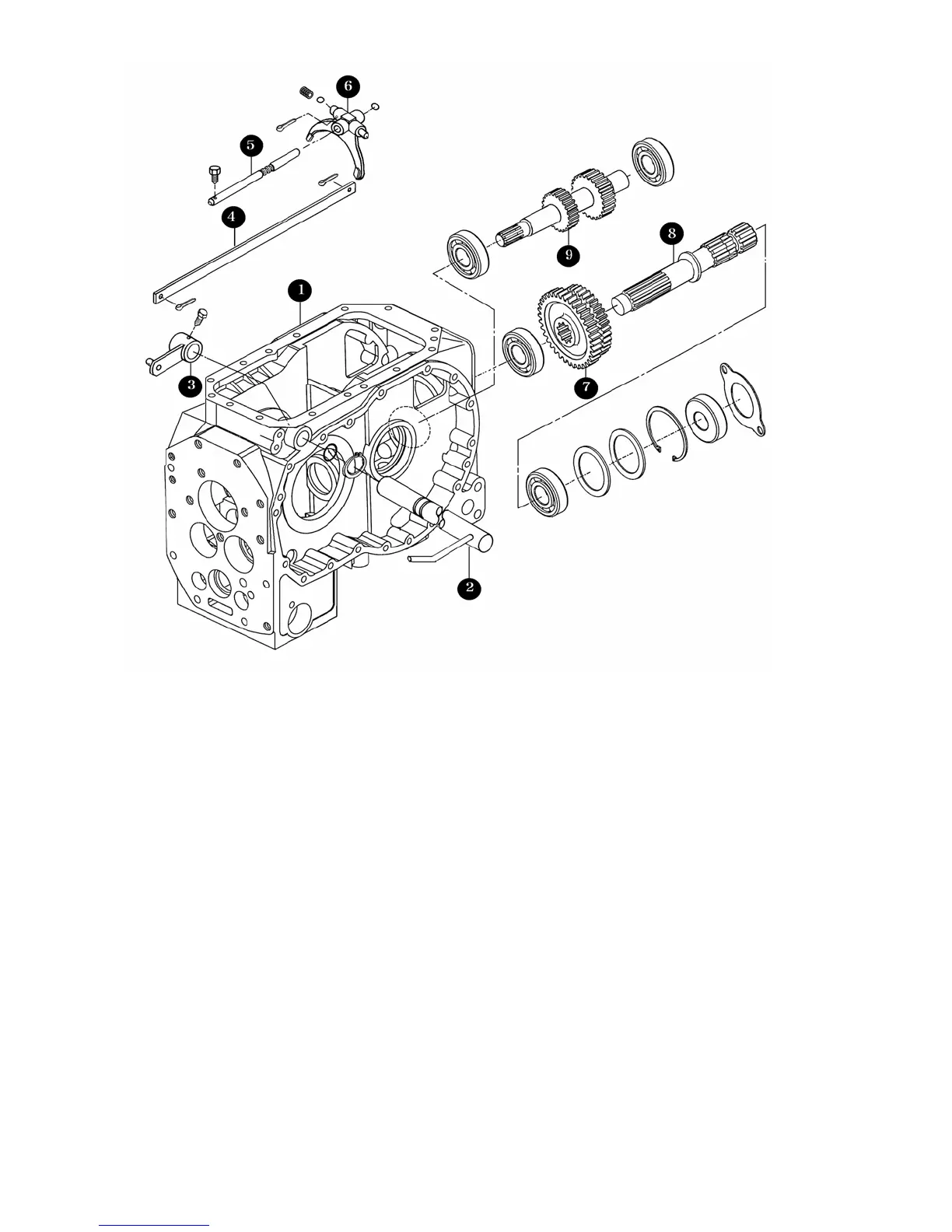

(2) PTO shaft and related parts.
1.Rear transmission case 2.Change arm 3.Cam. 4. Change plate
5.PTO shifter stay 6.PTO shifter 7.Gear spur(38-33) 8.PTO shaft
9.Gear spur(12-17)
a.Remove the rear hitch and the trailer hitch
b.Remove change plate(4)
c.Extract PTO shaft(5) rearwards and take out shifter(6)
d.Be alert to the steel ball which mat spring out of the shifter.Extract PTO shaft(10) rearwards and
remove the change gears and related parts.
e.Remove counter gear
5-31
Fig.5-59
