TYM T390 Service Manual

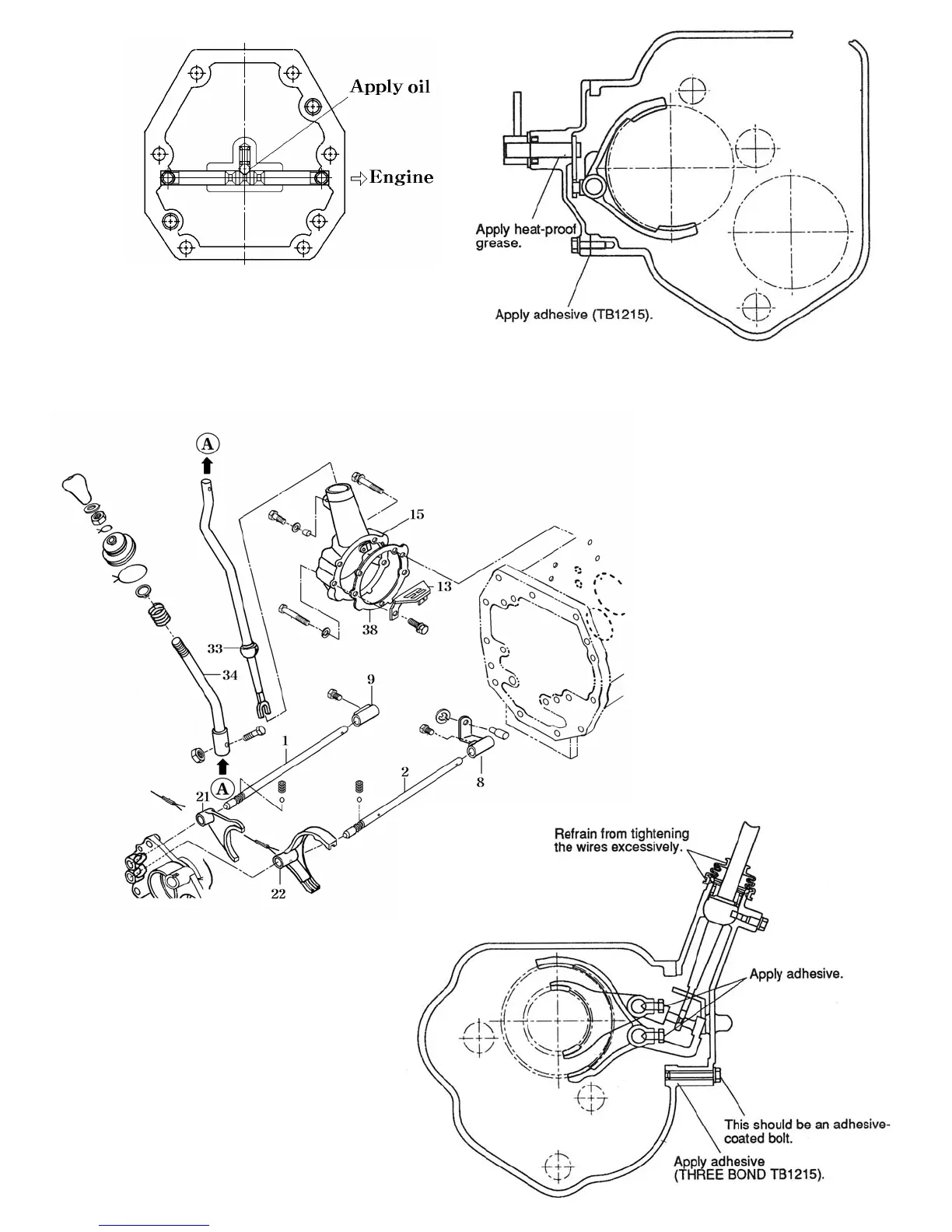

(2) Main change mechanism(Main speed shift)
(Synchromesh transmission version)
1.Rail(shifter/1
st
2
nd
)
2.Rail(shifter 3
rd
,4
th
)
8.Link
9.Link
13.Guide
15.Metal(Main)
21.Fork(shifter/main)
(1
st
,2
nd
)
22..Fork(shifter/main)
(3
rd
,4th)
33.Lever(bar/16)lower
34.Lever(bar/16)upper
38.Gasket(Main metal)
Note:
The bolt tightening the bottom
of the metal(Support) should be
coated with an adhesive ahead
of time
Fig.5-70
Fig.5-71
Fig.5-72
5-38
Fig.5-73
