(3) Range shifter (Speed range shift) mechanism

5-39

Note:

The bottom two tightening bolts should be coated

with an adhesive on their threads before being

tightened.

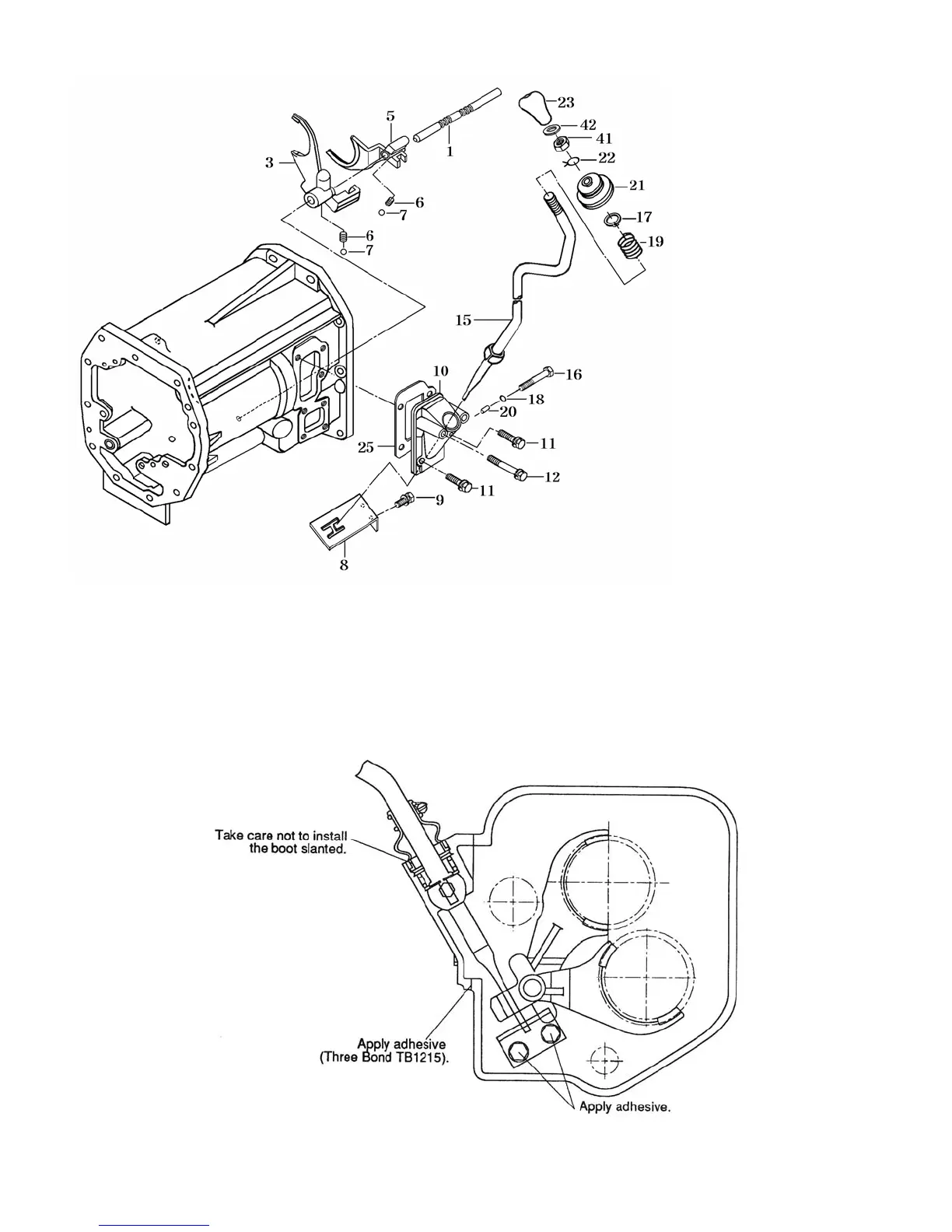

Fig.5-74

1.Rail(shifter,sub)

3.Fork(shifter,sub)

(High-Mid)

5.Hook(Shifter,sub)

(Mid-Low)

6.Shifter spring

7.Steel ball

8.Guide

9.Bolt(S)

10.Metal (SUB)

11,12.Bolt

15.lever(Bar,16)

16.Bolt

17.Snap ring

18.Seal

19.Spring

20 Pin

21.Boots

22.Wire

23.Sub shift speed grip

25.Gasket

41.Nut

42.Washer

Fig.5-75
