Note:
- When pushing the R.B.B’s(6305,6205) into the gear ,spur 12,be careful only to push
their inner races.
- The snap ring C should be securely seated in the groove and the press-processed side
turned towards the outer side.
- Be sure not to mix different pairs of the gear(spur/14).
- Every time a gear is installed,its smooth rotation should be checked.

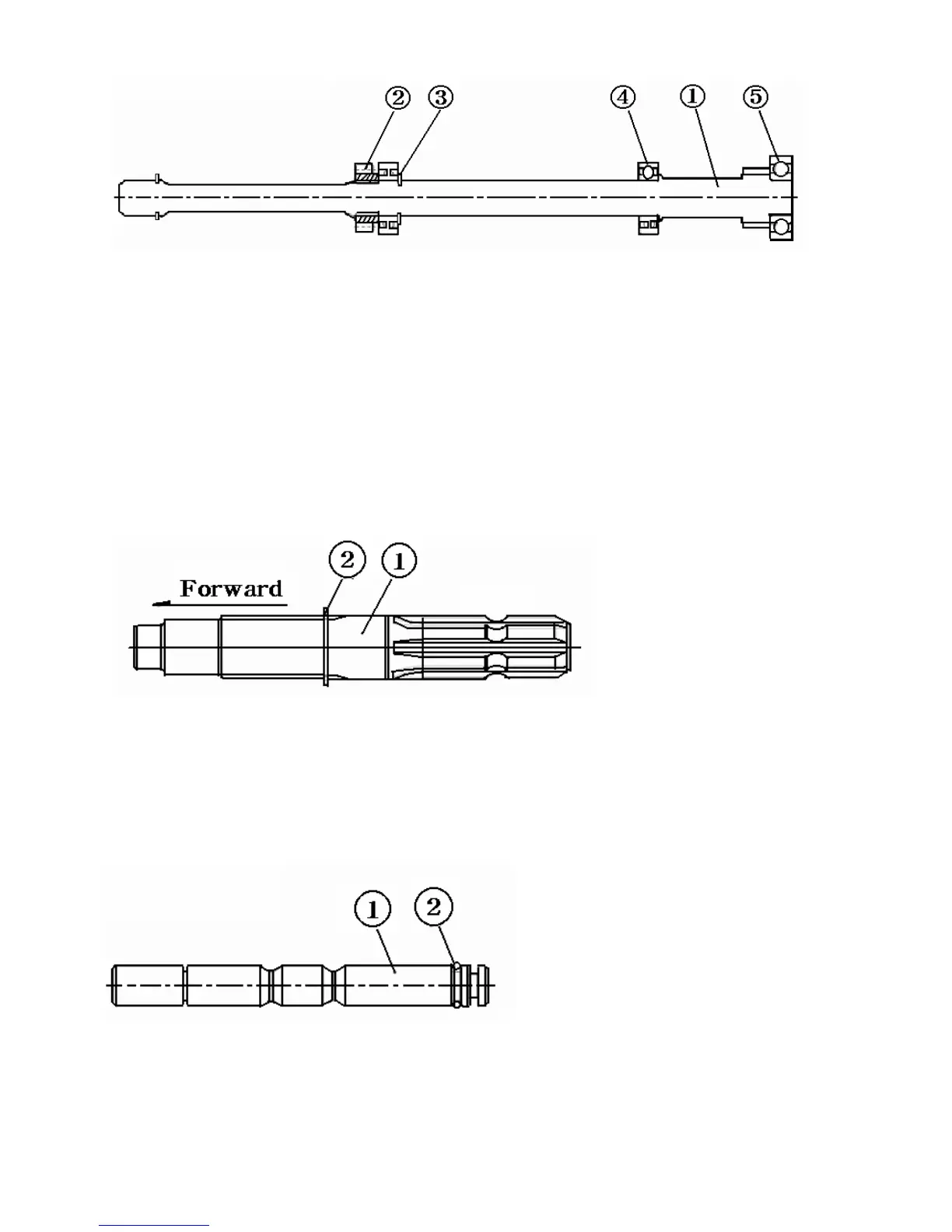

(6) REAR PTO counter shaft mechanism
a. REAR PTO shaft
b.REAR PTO shift stay
1.Gear,spur 12 2.Gear spur 14 3. Snap ring(shaft) 4. Ball bearing(6205) 5. Ball bearing(6305)
1.Shaft PTO
2.Snap ring
1.Stay PTO shift
2.O- ring
Note:
The snap ring C should be securely seated in the groove and the press-processed side
turned towards the outer side.
Note:
- When installing the O-ring to rear transmission case,take care not to damage it or
allow to fall.
5-42
Fig.5-80
Fig.5-81
Fig.5-82
