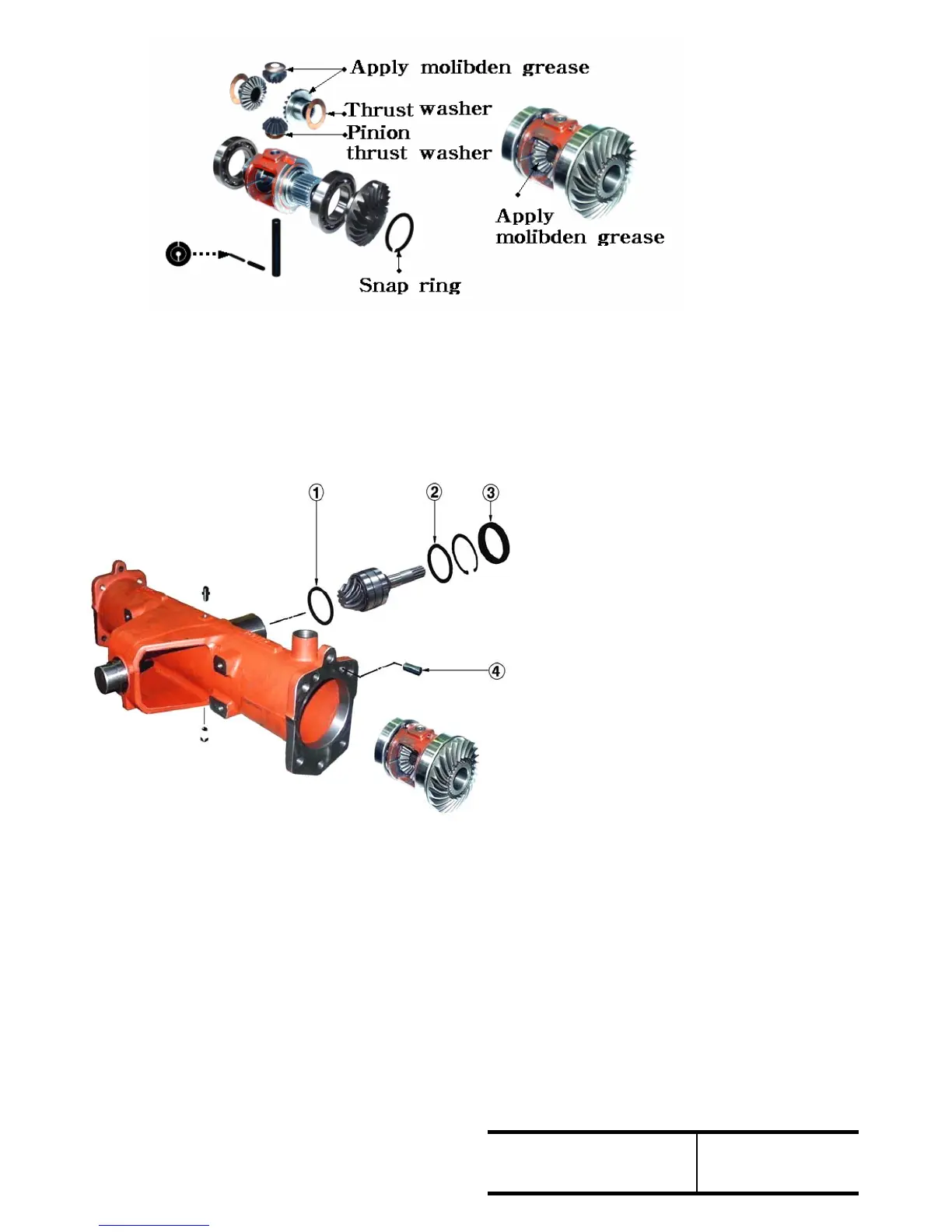

Fig.6-16
3) DIF CASE AND BEVEL PINION
1.shim
2.shim
3.shim
4.Parallel pin
1) Each friction surface should be coated
with grease in advance.
2) The bevel pinion and the ring gear make
a distinct pair after a mesh adjustment
performed at the factory. Consequently,
when reassembling the pair,be sure to
pair parts with a same reference number.
3) When installing the TRB’s from the
bevel pinion,Be sure the calking of the
lock nut and the bearings.
4) Install the snap ring and the bevel pinion
can then be installed together with the
TRB’s (Fig.6-17)
Fig.6-17
Note: Discard the removed straight pin and oil
seal and install a new pin and Oil seal
when reassembled,because this pin and oil
seal is apt to be damaged when removed.
5) Install the bearings from the Axle housing
And the ring gear,and then the ring gear can
be assembled from the Axle housing.
6) Install the straight pin(4) which retains the
axle housing.
7) When any of the bevel pinion,ring gear,TRB,
collar,etc.has been replaced,inspect the bevel
pinion assembly for thrust play in the front
axle housing through drain plug hole.
0.1-0.2
(0.004-0.008 in)
Specified thrust play
mm(in)
6-9
