3. FINAL CASE
3-1. Front gear case 1.
6-10

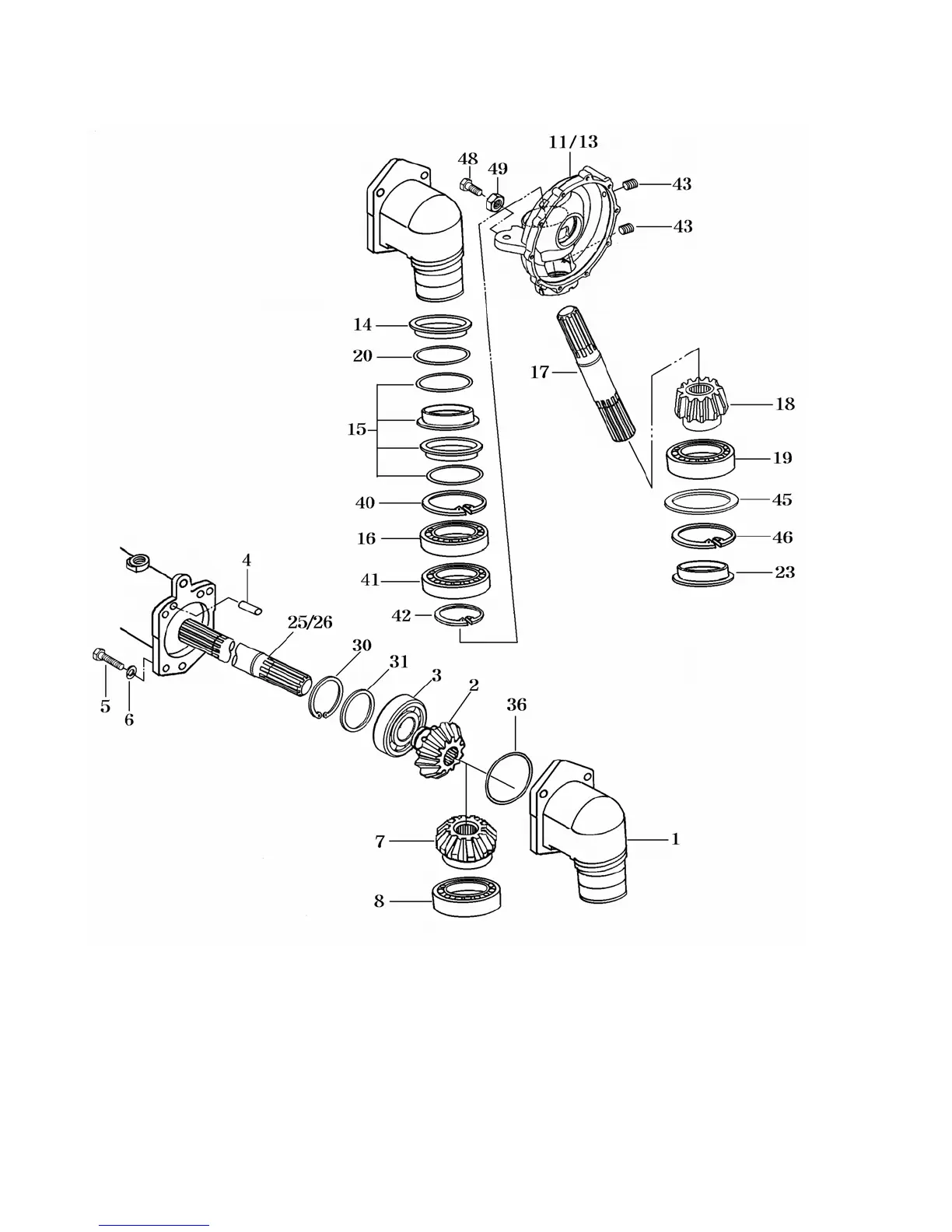

Fig.6-18
1.Final drive case(A) 2.Gear bevel(9) 3.RBB(6208) 4.Pin,parallel 5.Bolt(fine) 6.Washer spring
7.Gear bevel(16) 8.RBB(6207) 11.Final drive case(B)(L) 13.Final drive case(B)(R)
14. Housing seal 15.Seal 16.RBB(6014) 17.shaft 18.Gear bevel(11) 19.RBB(6308)
20.O-ring 23.Cap 90 25.Shaft RH(296) 26. shaft LH(480) 30.C-ring
31.collar(68X80X2) 40.Snap ring 41.RBB(6012) 42.Snap ring
43.Plug 45.shim 46 Snap ring 48.Bolt 49.Nut
To Next Page
