TYM T390 Service Manual

SECTION 3.DISASSEMBLY,INSPECTION,AND REASSEMBLY
Separate the rear axle housing from the rear transmission referring to paragraph 6.(1) of SECTION 4.
SEPARATION OF MAJOR BLOCKS in Chapter 2
1) REAR AXLE HOUSING AND BRAKE SYSTEM
7-3

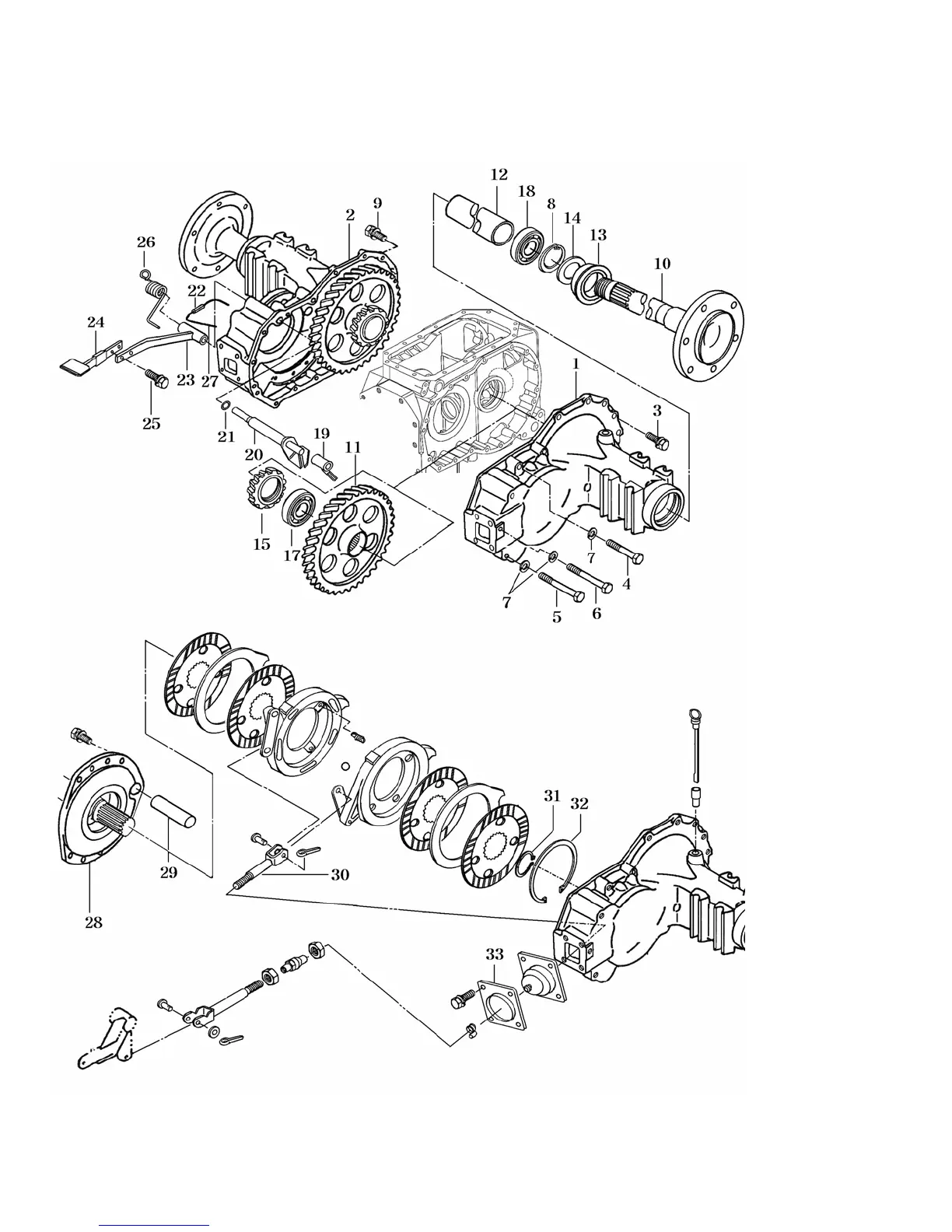

Fig.7-2
1.Housing(Axle,LH)
2. Housing(Axle,RH)
3.4.5.6.Bolt
7.Washer spring
8.Snap ring
9.Bolt
10.Wheel shaft
11.Gear(helical/55)
12.Collar
13.Seal(Oil)
14.Collar
15.Nut(M50X1.5)
17.Roller bearing
18.Ball bearing
19.Diff lock shifter
20.Cam
21.O-ring
22.Spring pin
23.Pedal
24.Pedal(Diff-Lock)
25.Bolt
26.Spring
27.Wire
28.Brake metal
29.Torque pin
30.Brake Rod
31.Snap ring
32.Snap ring
33.Plate
