8-11

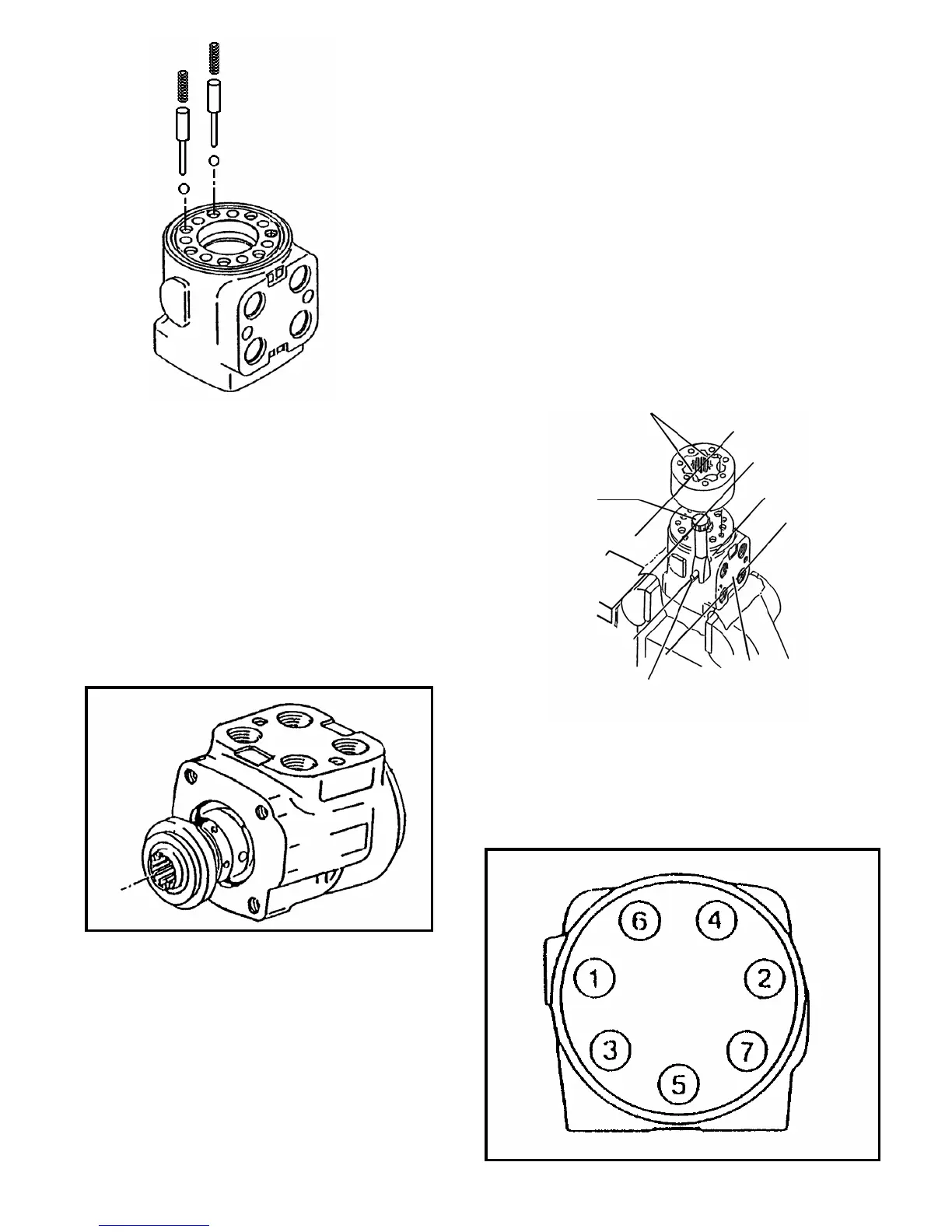

For pumps equipped with cross over check
valves,install balls,valve pins and springs in
the position noted in STEP 4.
STEP 18
Lubricate and install new o-ring into the
groove in pump body.Install plate,align
marks made in STEP 2,make sure the o-ring
groove in plate is facing outwards.
STEP 19
With pin parallel to fitting mounting
face.install drive shaft,make sure the slot in
drive shaft locates onto pin.
STEP 20
install rotor onto drive shaft.Make sure one of
the rotor teeth is aligned with the connector
mounting face.Lubricate and install a new o-
ring into the groove in plate.Align the marks
made in STEP 2, and install stator.Make sure
the o-ring groove in stator is facing outwards.
NOTE: Pin must remain parallel with the
connector mounting face as shown.
IMPORTANT: If rotor is installed
incorrectly.the steering hand pump will operate
as a motor when installed onto the tractor and
the engine is running.The steering wheel will
rotate continually which may cause damage and
injury.
STEP 21
Install spacer into rotor.Lubricate and install a
new o-ring into the groove in stator.
STEP 22
STEP 17
To Next Page
