Align the marks made in STEP 2,and install the

end cap.Install and evenly tighten the torx hand

screws in two stages to a torque of 17 Nm(12 lb ft)

then to 25 to 30 Nm (19 to 22lb ft) in the sequence

shown.

NOTE: The torx head bolts must by dry and clean

of oil.

STEP 23

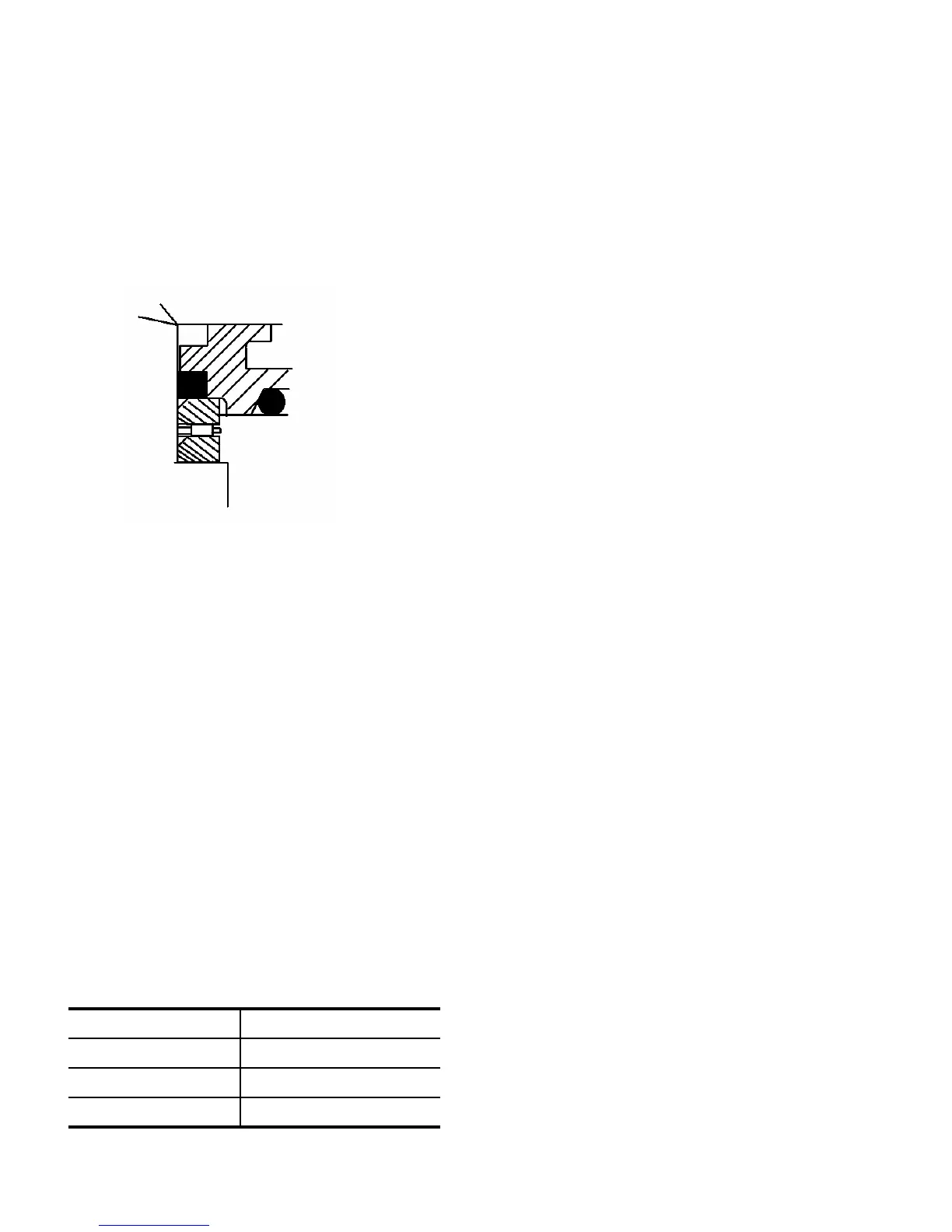

Install a new dust seal into seal bushing.

STEP 24

Install clean transmission oil into the return port

and supply port.Cover all the ports with a clean

cloth and slowly turn the pump input shaft

clockwise and counterclockwise.

STEP 25

Repeat STEP 24 until the steering hand pump is

primed of oil.

STEP 26

Lubricate new o-rings with clean transmission oil.

Install the o-rings onto the fittings.Install and

tighten the fittings.

2.9369∼737

2.4277

2.351∼230

Tighten torque(㎏f·m) Volume(㏄/rev)

8-12
