9-10
Point 2.
Turn the lift crank to the bottom position
Point 3
Insert a spool jig between the back face of the
snap ring on the main spool front and the casing
and set the clearance to be 9 mm(0.35 in).The
main spool circuit should be set for full open for
Lifting
Point 4.
Screw in the draft link boss until the clearance
with the casing becomes less than 4 mm(0.16 in)
and make sure that the boss can be pushed in and
out.Then hold the boss pulled out

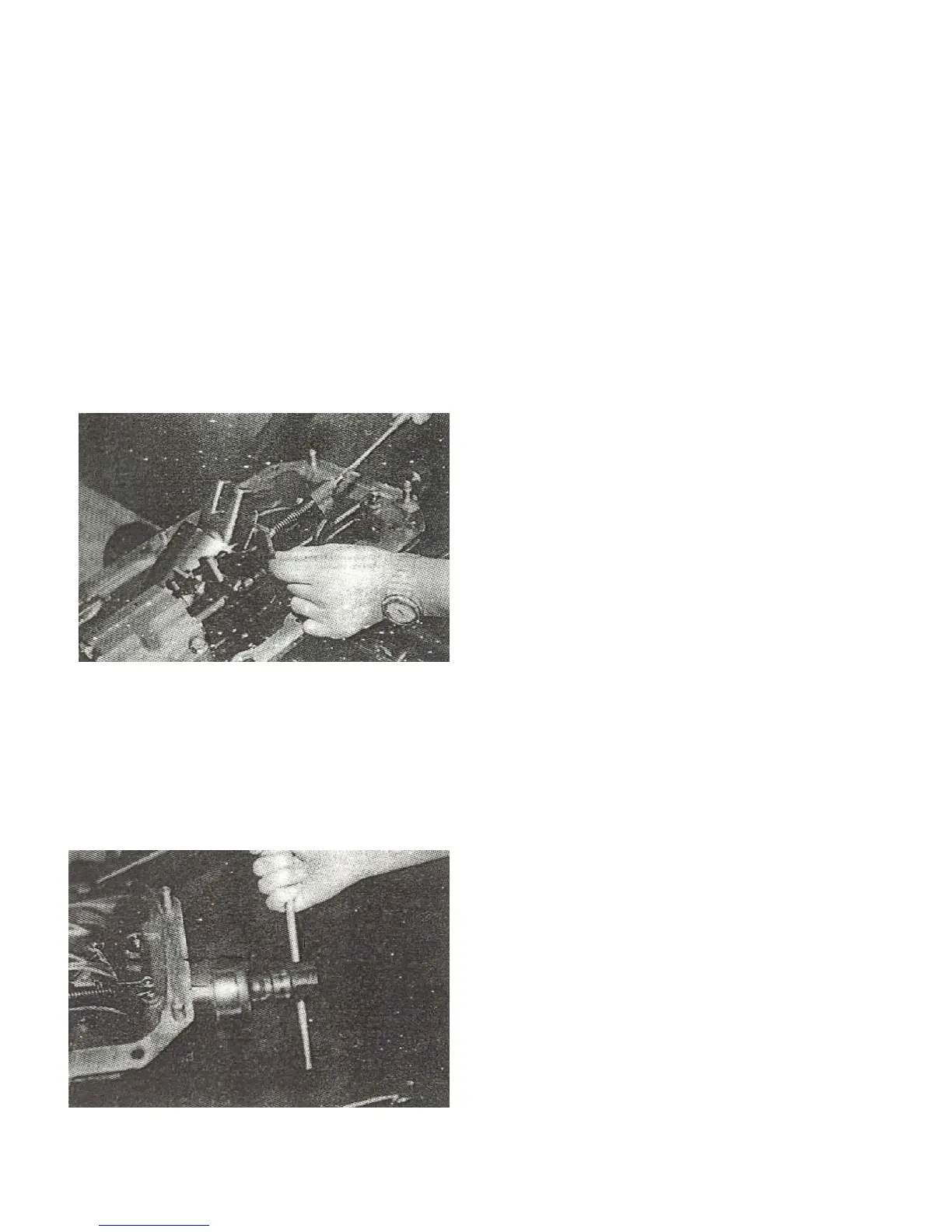

Fig.9-16
Point 5
With the arm pushed against the main spool,
eliminate any play of the draft control push rod and
arm by loosening the lock nut.
Fig.9-17
Point 6
Loosen the draft link boss and eliminate its fore
and –aft play.Then turn the boss so that the hole
in it becomes horizontal.
Thus the adjustment of the draft-control link
mechanism is completed.
