9-9
Point 5
Set the clearance between the pilot spool and the
push rod to be 0-0.2mm(0-0.008in) with the
adjusting screw.
Point 6
With the arm pushed against the main spool( the
neutral position of the main spool),set the feed-back

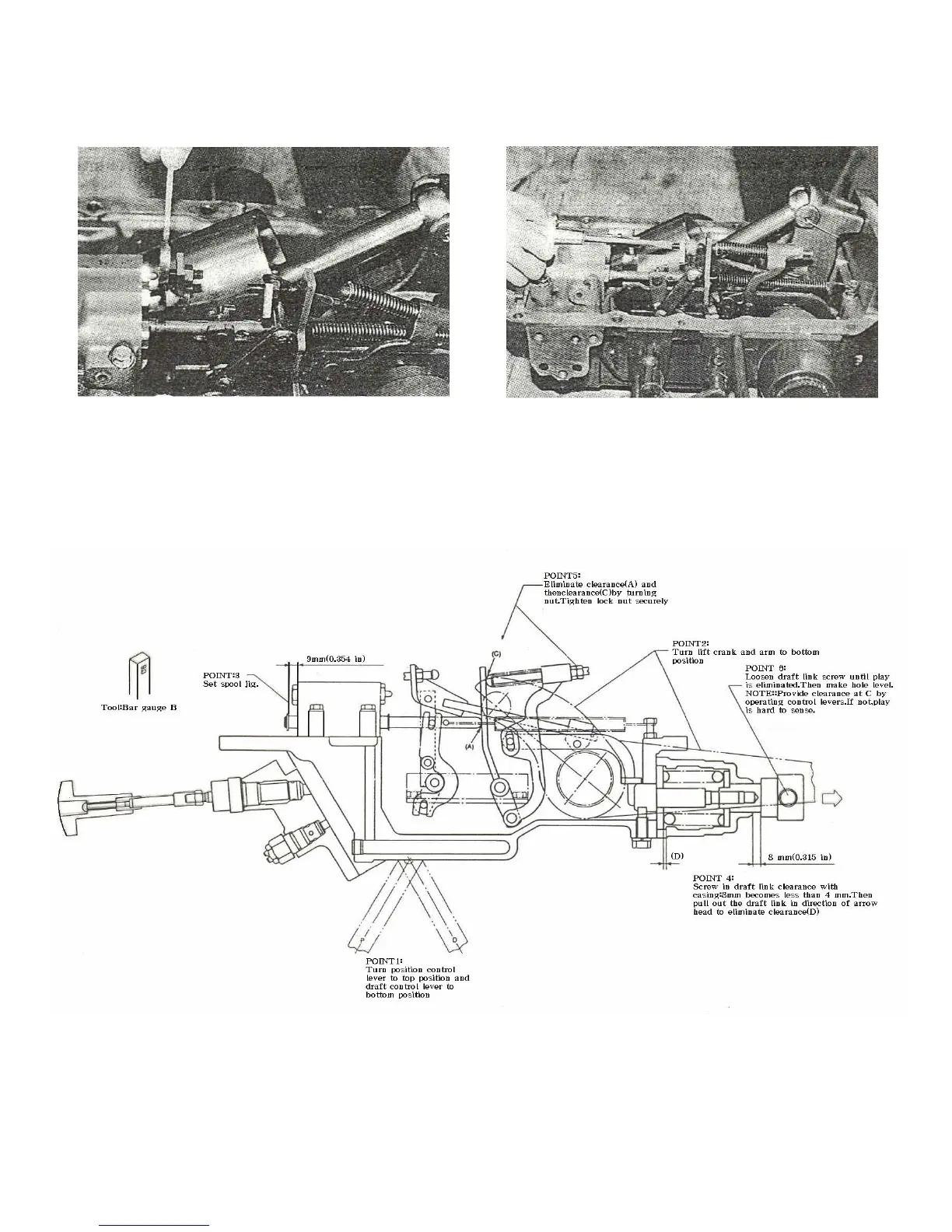

Fig.9-13
Link so that there is no play by the adjusting
screw.It is recommended to hold the draft control
push rod pushed against the arm for easier
adjustment.
Fig.9-14
Thus the adjustment of the position control link-
age is completed.
2) Adjustment of the draft-control link
mechanism
Point 1
Shift the draft control lever to the top position and
the position control lever to the bottom position.
To Next Page
