2.4 DISASSEMBLY AND INSPECTION

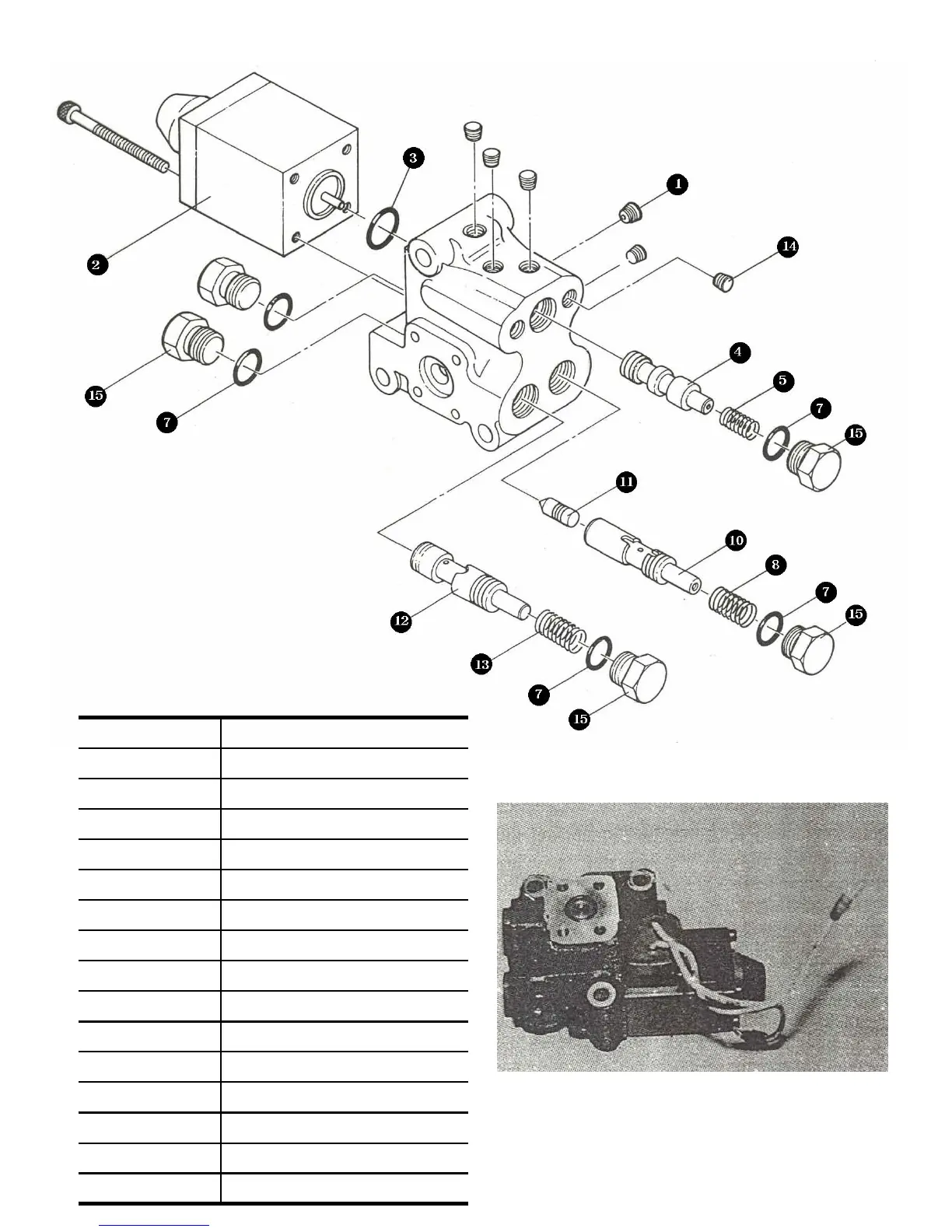

Fig.9-35
Plugs15
Blank plugs14
Sequential valve spring13
Sequential valve spool12
Piston11
Pressure-reducing valve spool10
Shim(optional)9
Pressure reducing valve spool8
O-ring7
Casing6
Changeover valve spring5
Changeover valve spool4
O-ring3
Solenoid2
Orifice(choke)1
Part NameRef. No.
Fig.9-36
9-28
