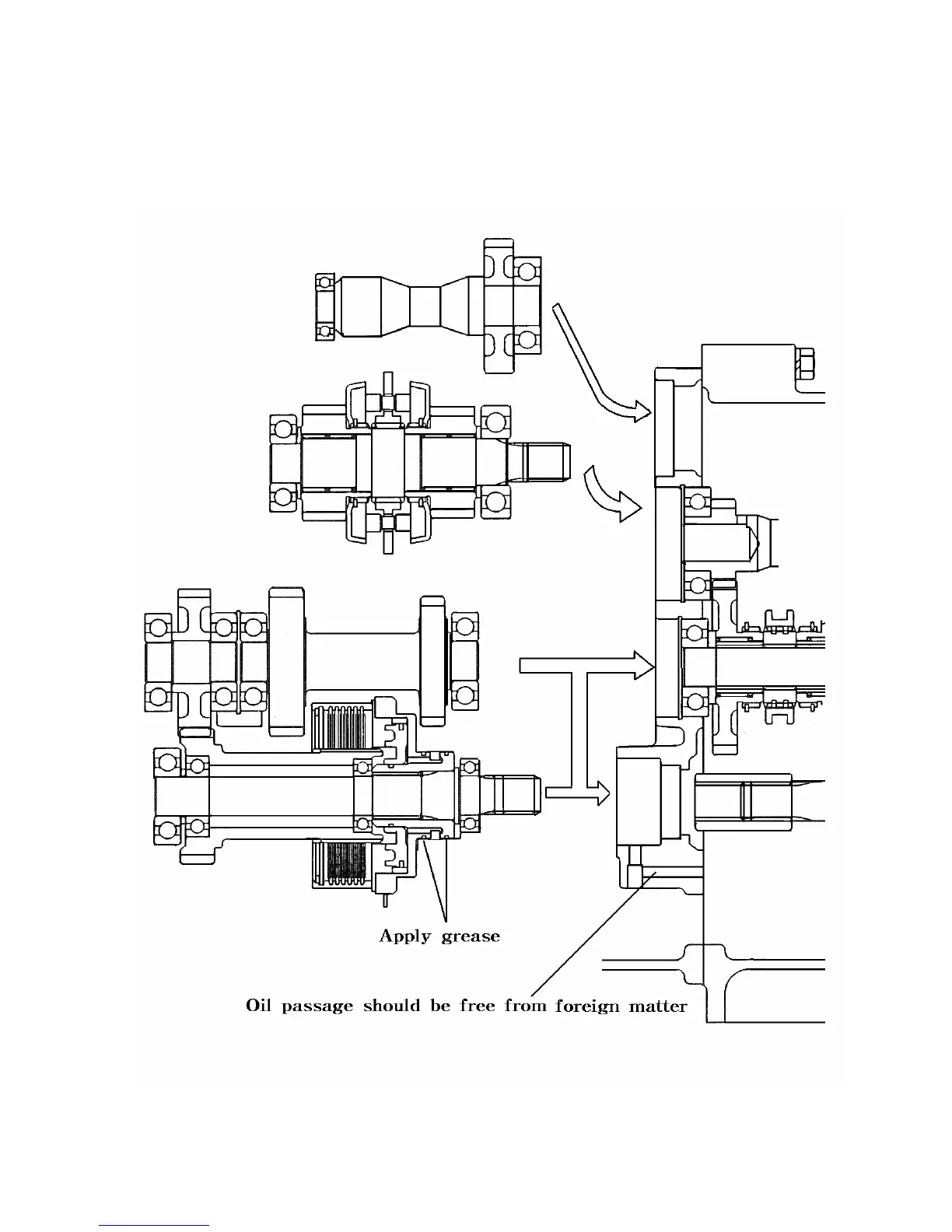

(2) installation of each sub-assembled shaft.
Install each sub- assembled shift into the reverse metal(Support).
Note:
When installing the PTO clutch assembly,apply a thin coat of grease to the seal rings and
install it taking care not to damage these rings.
Fig.5-28
5-13
