5-14
Reassemble in reverse order of disassembly,following the next instructions.
a.Install the idle shaft(12) so that the end with the tapped hole faces rearwards,that is ,on the
snap ring installed side.
b.Apply adhesive to the threads of the bolts (M8 ×20) which tighten the bearing retaining plate.
c.Oil seals should be installed in their correct direction.As an oil seal is a special eccentric
seal,be careful not interchange these seals.
d. Before installing sleeve metal(support)(1) on input metal(support)(6),apply grease to the O-ring
to prevent its damage.

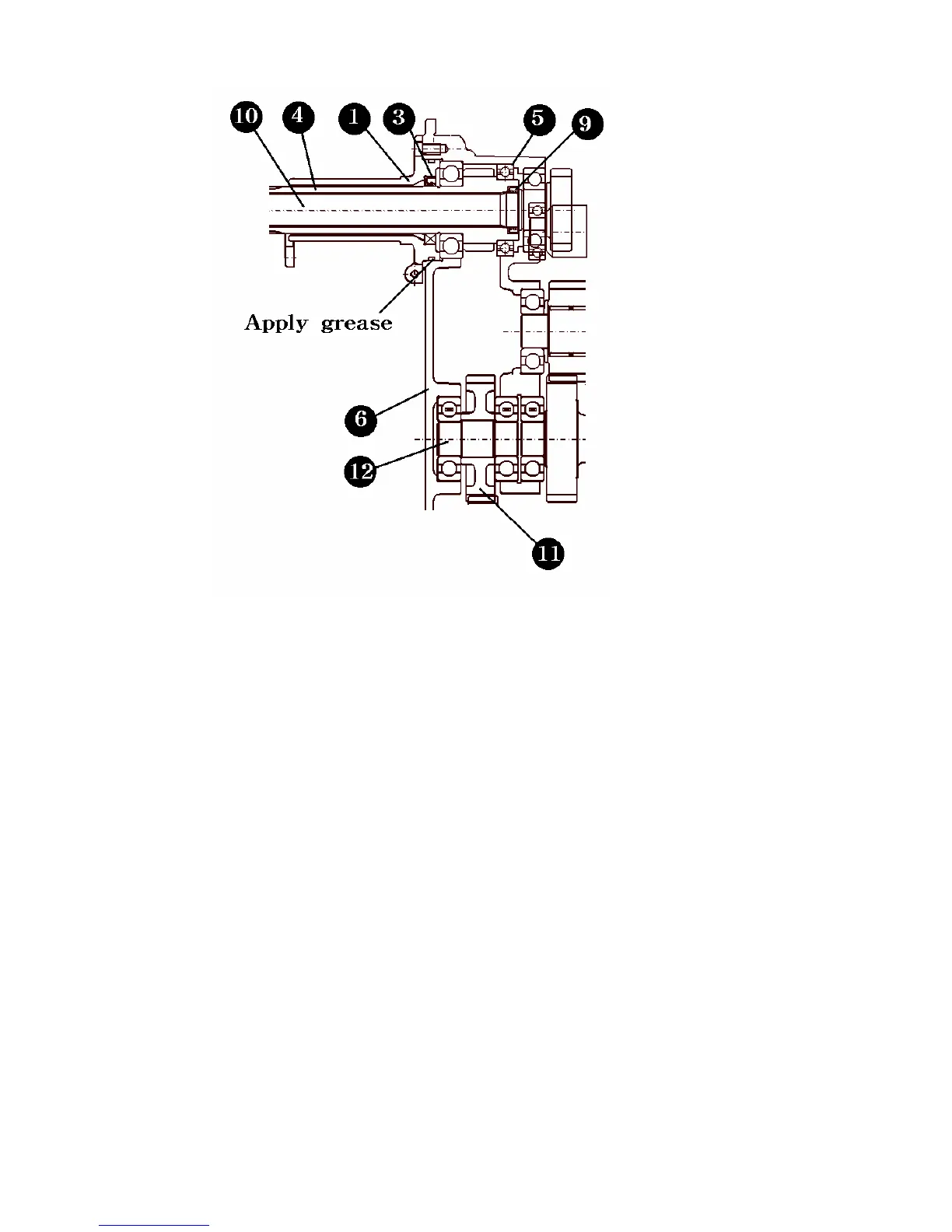

(3) installation of input metal and related parts.
Fig.5-29
