17. FITTING & REMOVING THE INTERCOM
Before fitting the intercom front; set the Address and Option Select DIL switches and check links LK1/LK2 are fitted in
the correct positions. Ensure all cables are properly terminated and secure spare wires in the clips provided.

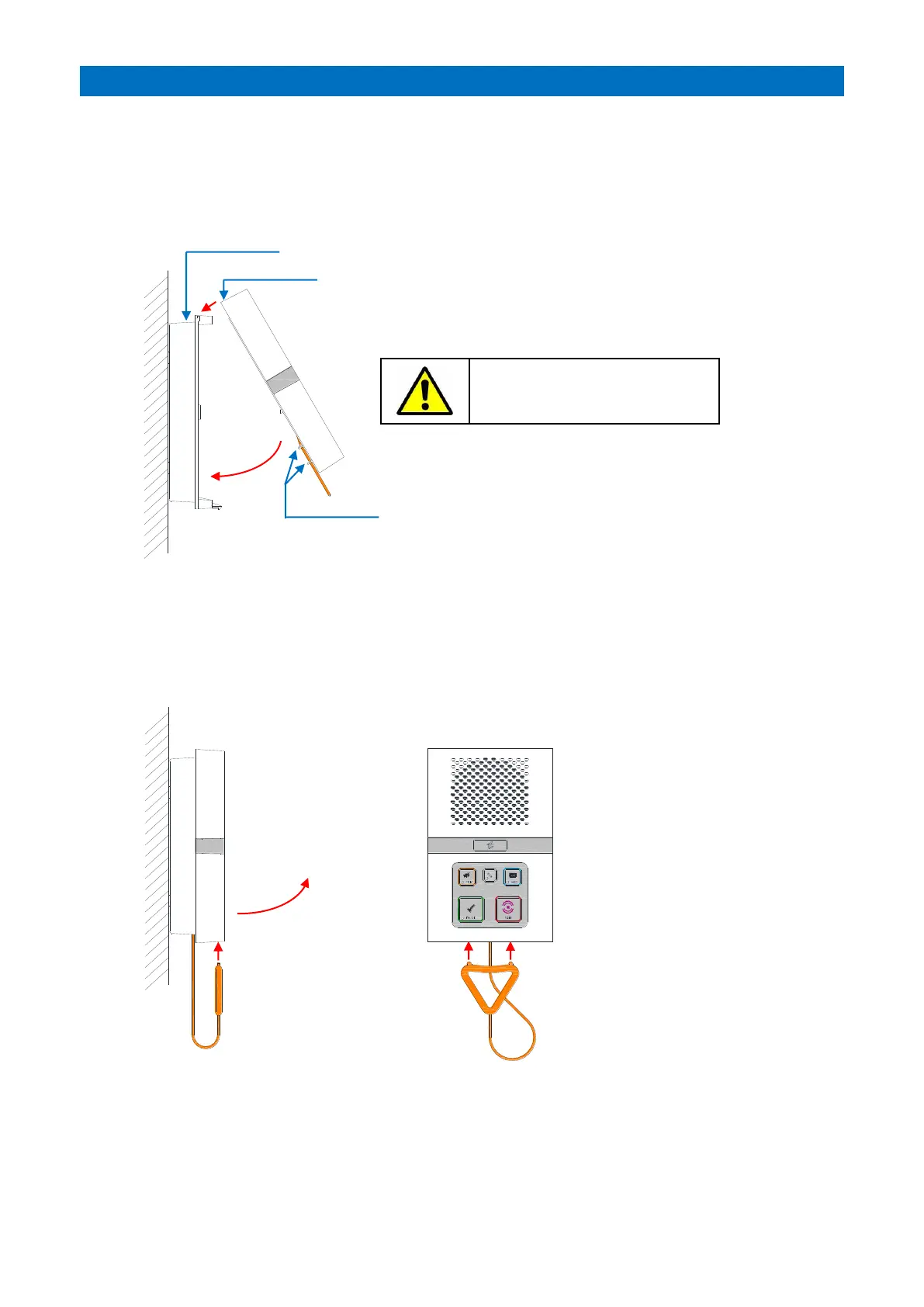

FITTING THE INTERCOM FRONT
Locate the 2 top corners of the intercom front over the 2 top corners of the intercom back, swing downwards and clip
together ensuring the pullcord is located in its slots.
REMOVING THE INTERCOM FRONT
Use the pegs on the orange triangle to push the clips one at a time on the lower face whilst pulling the front outwards
from the bottom edge.
ALWAYS CHECK THE PULLCORD
OPERATES AFTER THE FRONT IS FITTED
Base fixed to wall
Locate top 2 clips first
Ensure the orange cord is
located in these 2 slots
Swing
downward
and clip
together
2. Lift lid
outwards
from lower
edge
1. Insert the triangle
pegs into the base clips.
Apply more force to one
peg whilst gently lifting
that side of the lid.
Repeat for the other clip.
