Telephone link LK1 must
be in position A “MASTER”
when only 1 handset is
connected.
An extension handset can
be connected in parallel.
This must have its link LK1
fitted in position B
“EXTENSION”.
A maximum of two strobe
lights can be connected to
a master and an extension
telephone.

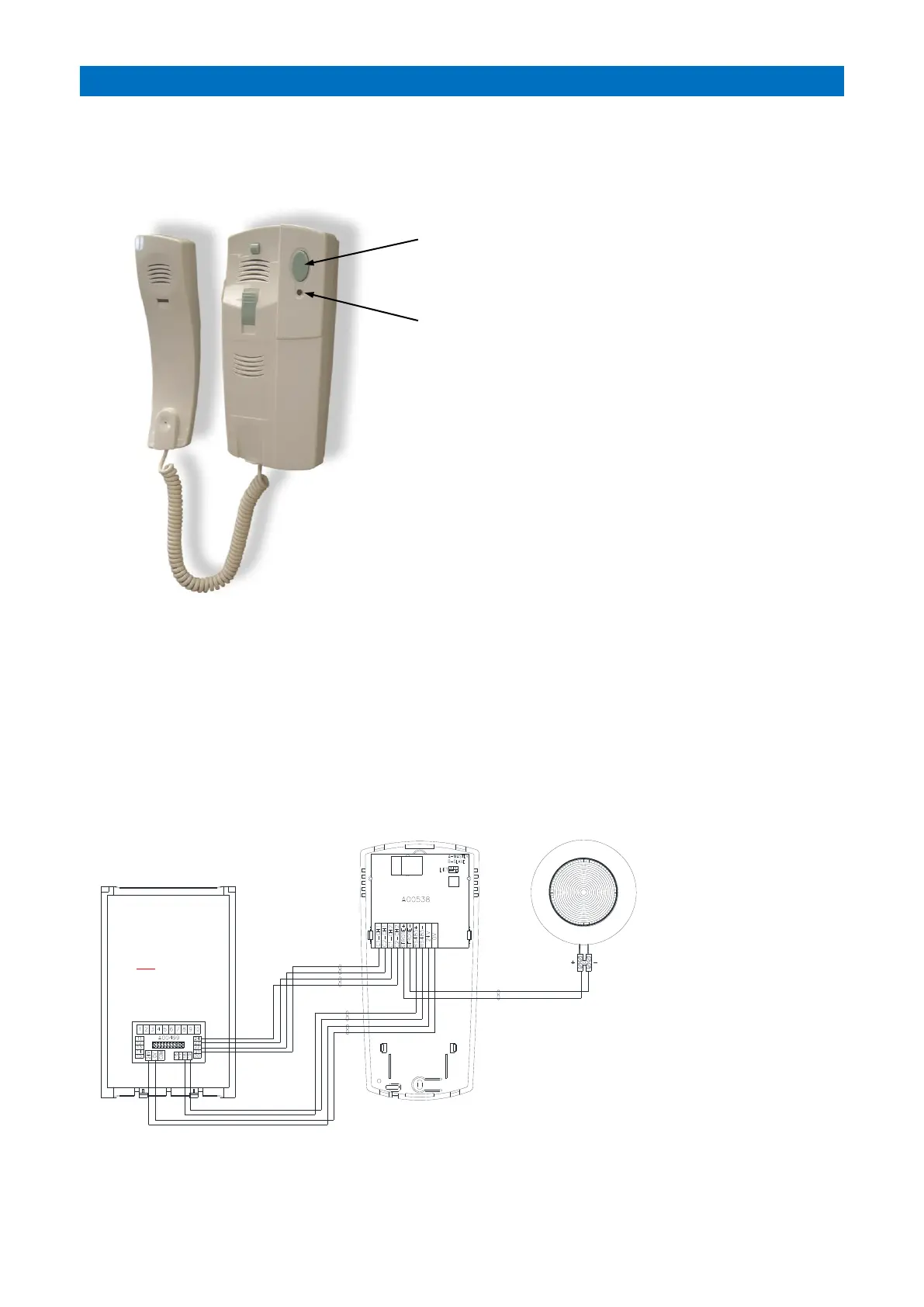

XT2 door entry telephones (Tynetec P/No. ZXT955) can be connected to a standard intercom within each dwelling.
When called, the telephone will ring for a pre-set time or until the handset is lifted. Speech is private between the
door entry panel and the dwelling called and cannot be overheard by other users from their handsets or visitors at
other door panels.
PUSHBUTTON
LED INDICATOR
INSTALLATION
The door entry telephone should be wall mounted alongside (or close to) the intercom unit within each dwelling.
Unclip the lid and screw fix the telephone base to the wall using the holes provided, ensure the base is not twisted as
this may prevent the lid fitting correctly.
TERMINATION
A 6 pair CW1308 cable is recommended* between the Advent XT2 intercom unit and the telephone.
Optional hard of hearing strobe lights (P/No. ZSL047) can be connected to the telephone to provide visual indication
when the telephone is ringing.
*See table on the following page for the recommended colour code.
The telephone has a single pushbutton to release
the door lock or select privacy mode.
The LED indicator will illuminate green for door
open or red for privacy mode.
Privacy is programmable as a simple on/off action
or with timed auto-reset (1 to 999 minutes).
