typical TW1-571 - Edge Trimmer -725;04 for 574 and 591

Controls
7.10
Edge trimmer -725/04 for 574 and 591
3
4
2
7
1
6
5

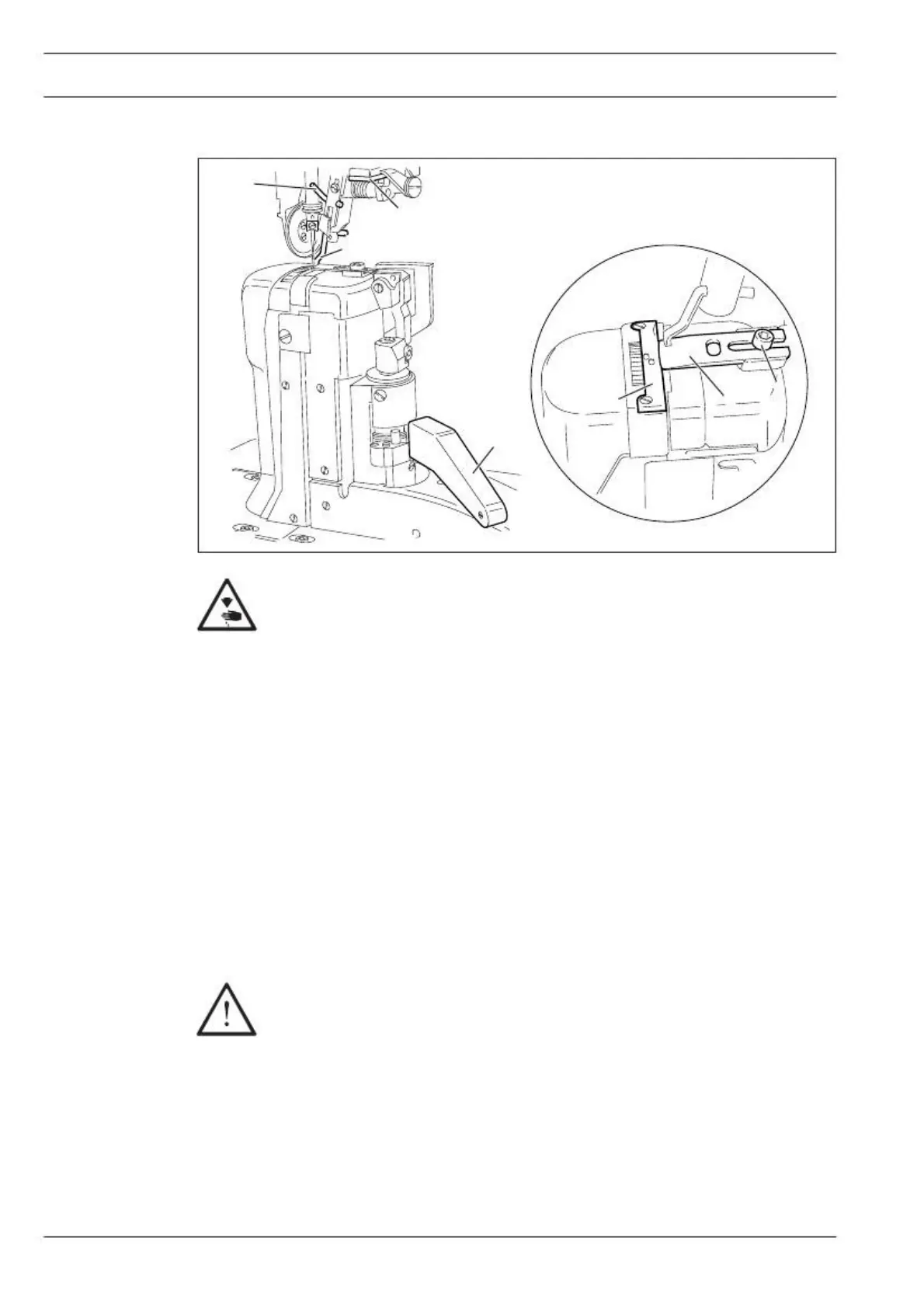

Fig. 7 - 10
Keep your hands away from the moving knife! Danger of injury!
Switch on knife drive:
● Move lever 1 backwards. The knife moves into operating position.
Switch off knife drive:
● Press lever 1. The knife swings backwards.
Switch on edge guide:
● Swing edge guide 2 into position by hand and press lever 3. The edge guide 2 moves into
its operating position.
Switch off edge guide:
● Raise edge guide 2 and let it click into position. The edge guide 2 is out of operation.
● Raise lever 4. The edge guide swings backwards.
Changing the knife:
The following work may only be carried out by technical staff or by persons who
have been properly instructed.
● Switch off the machine.
● Loosen screw 5 and remove knife 6.
● Insert new knife and push it close to needle plate insert 7.
● Slightly tighten screw 5.
● Adjust the knife according to Chapter 1.05.07 Knife position in the Adjustment Manual
and tighten screw 5.
20
