Installation and commissioning
8.02.03

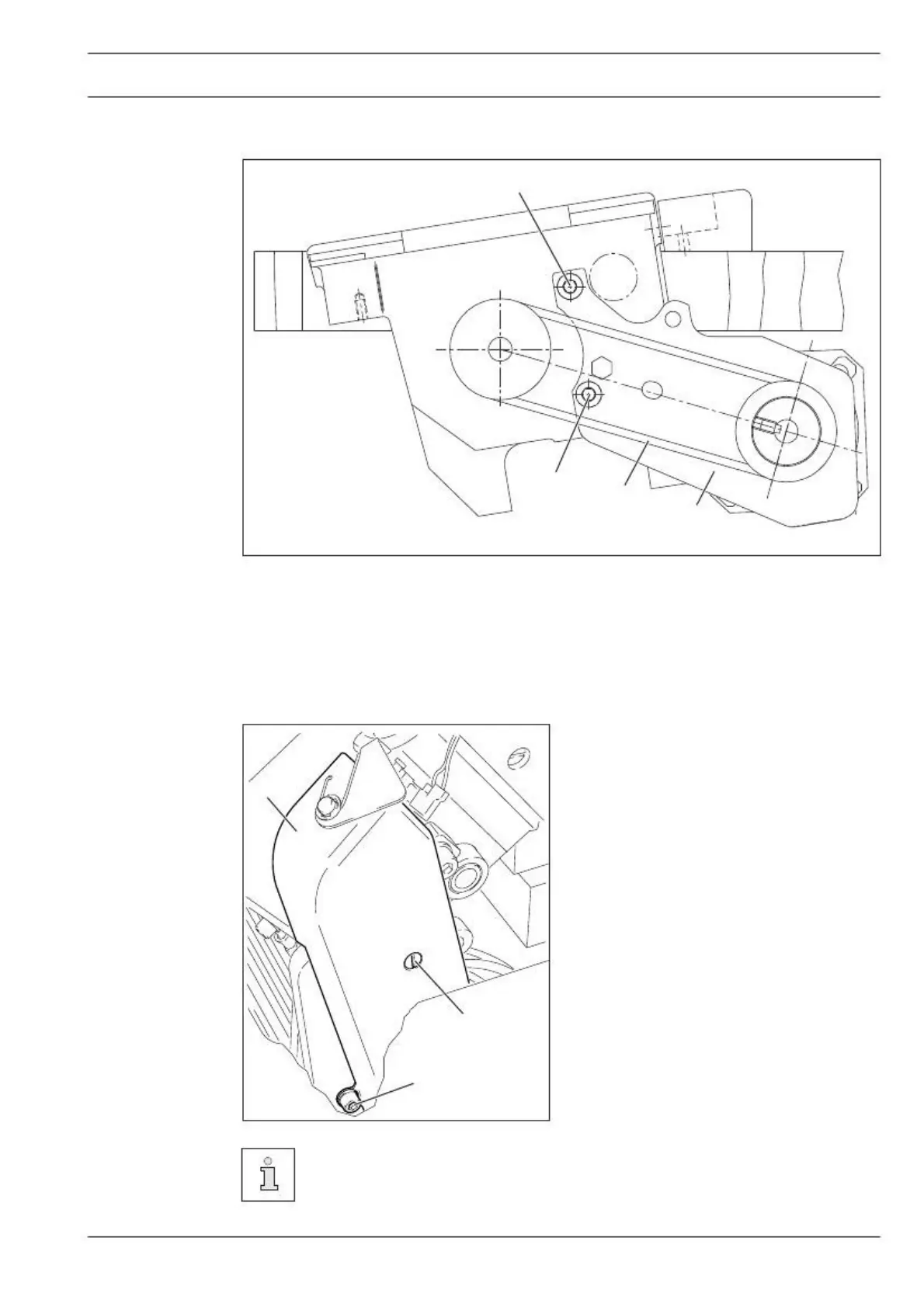

Mounting the toothed belt and adjusting the tension
3
3
Fig. 8 - 06
1
2
● In this position fit toothed belt 1.
● Swing the bearing plate 2 of the motor, so that the toothed belt is tensioned.
● In this position tighten screws 3.
8.02.04
Mounting the belt guard of the flange motor
● Attach belt guard 1 with screws 2 and 3.
1
2
3
Fig. 8 - 07
61-112
Table top mounting and circuit diagrams (see Chapter 11)
