typical TW1-571 - Lubricating the Bevel Gears

Care and maintenance
10.05
Lubricating the bevel gears
1
Fig. 10 - 04
Switch the machine off!
Danger of injury if the machine is started accidentally!
● All bevel gears must be supplied with new grease once a year.
● Tilt the sewing head back onto the support.

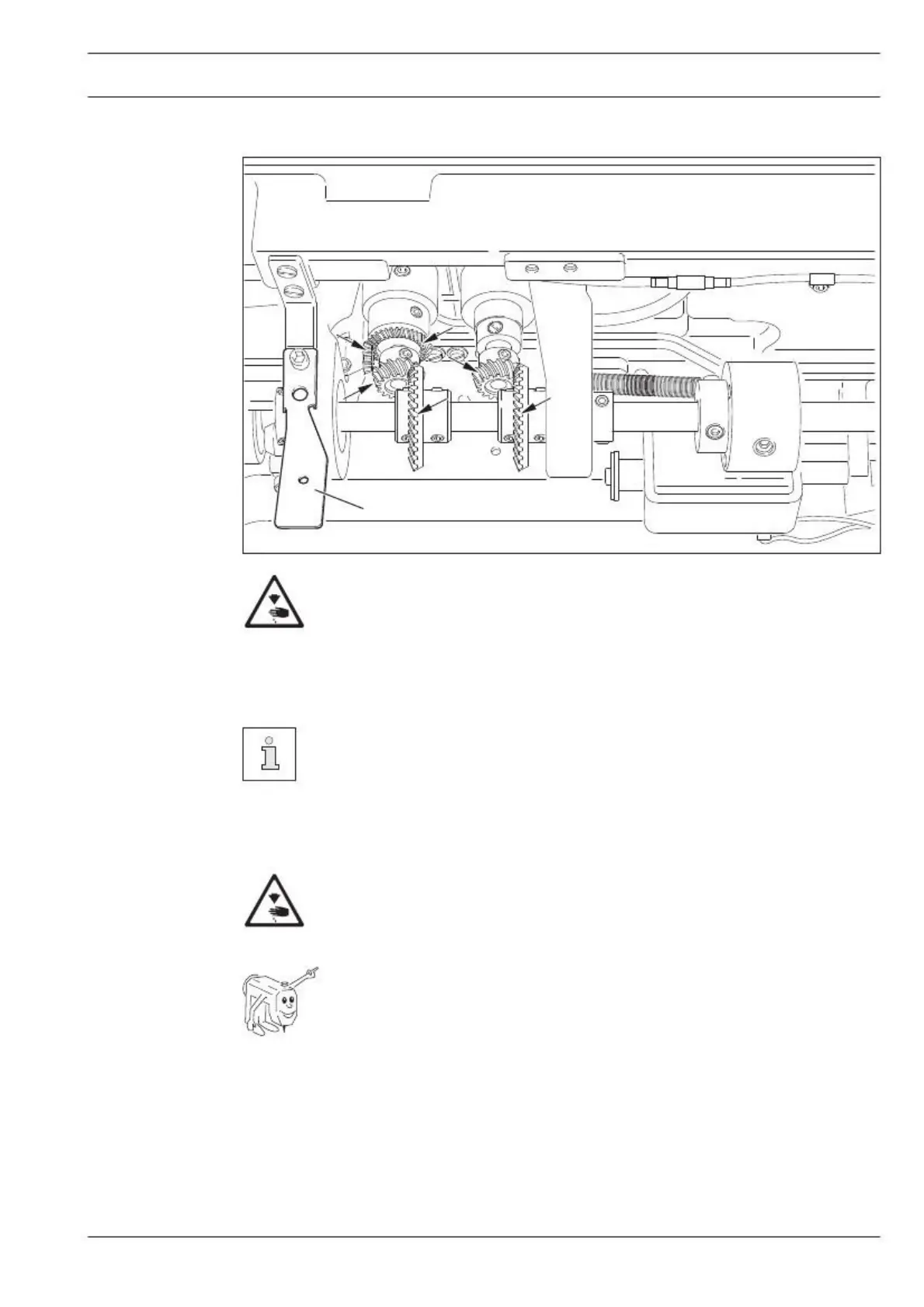

Fig. 10-04 shows the bevel gears of the 574.
● To set the sewing head upright, press tilt lock 1 backwards and set the sewing head up-
right using both hands.
Use both hands to set the sewing head upright!
Danger of crushing between the sewing head and the table top!
We recommend TYPICAL sodium grease with a dripping point of approx. 150° C,
Order No. 280-1-120 243.
