typical TW1-571 - Fitting the Tilt Lock; Fitting the Machine Cover

Installation and commissioning
8.01.02
Fitting the tilt lock
Switch off the machine!
Danger of injury if the machine
is the machine is started acci-
dentally!
2
● Screw on the tilt lock 1, provided in the
accessories, using screw 2.
Do not operate the machine wi-
thout tilt lock 1. Danger of crus-
hing between sewing head and
table top!
1

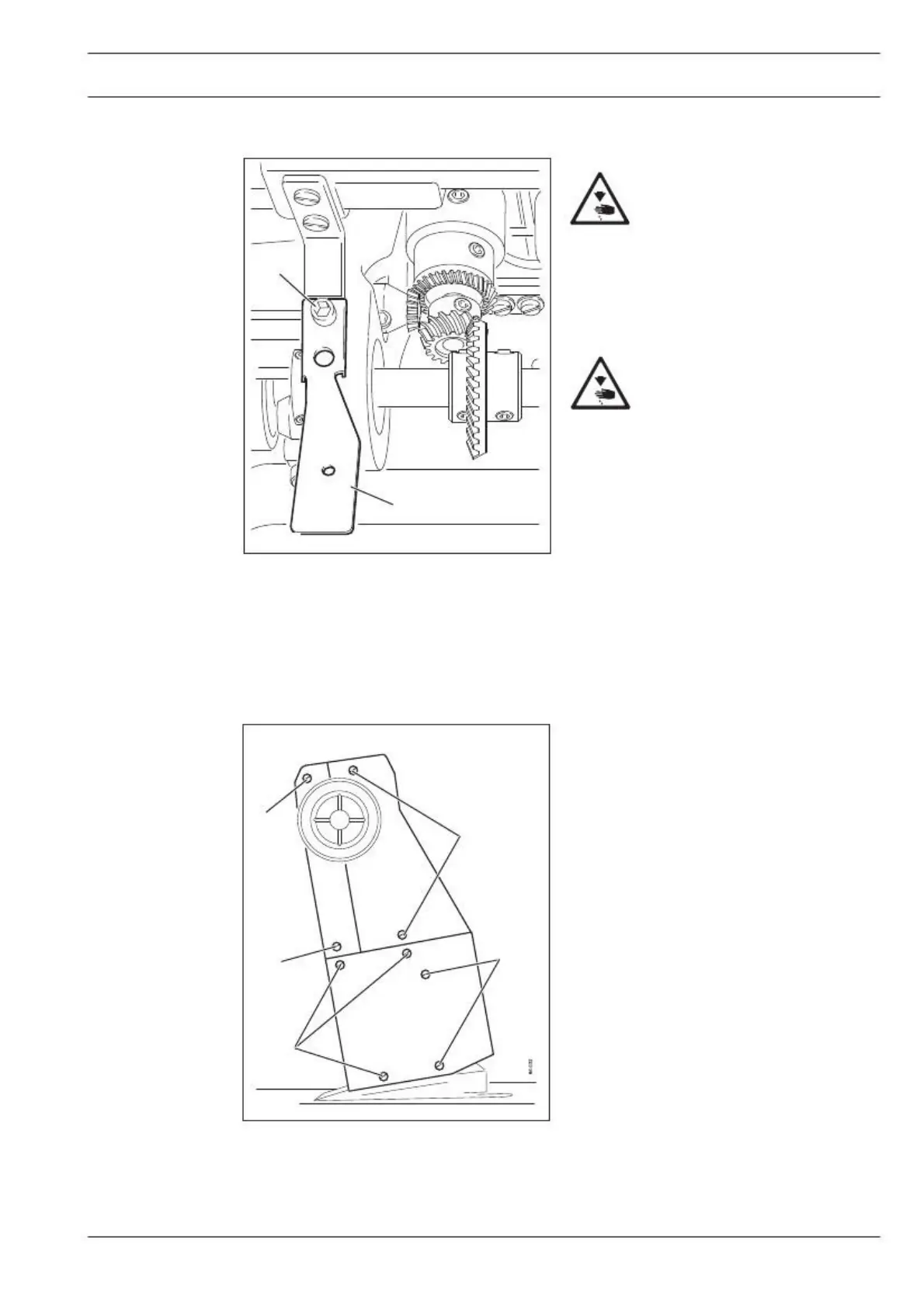

Fig. 8 - 02
8.01.03
Fitting the machine cover
● Slide the slots of the lower section of
the cover 1 behind the heads of screws
2 and attach with screws 3, then tighten
screws 2 through the holes.
4
4
● Attach right and left cover sections with
screws 4.
4
2
1
3
Fig. 8 - 03
