110
elbow joints of both arms slightly bent. The front passenger seat
should be pushed back as far as possible and the backrest should
be brought back to a vertical position to avoid any discomfort.
Incorrect seating, in case of the airbag unfolding, may result in
serious injury or death. The airbag needs space for being lled
with gas. Airbag system is an autonomous one-off device and it
does not require any maintenance during operation of the motor
vehicle. After airbag system actuation, the control unit and airbag
modules, as well as seatbelts with pretensioner should be replaced
by an authorized dealer.
ATTENTION! Because of the impossibility of the front pas-
senger airbag unfolding, do not install child seat against the
direction of movement (backrest forward) on the front passenger
seat. If the airbag actuates, a child can be seriously injured. In
motor vehicles equipped with the front passenger airbag, there is a
warning label on both sides of the sun visor (Fig. 3.37) prohibiting
the installation of child seat with backrest forward.

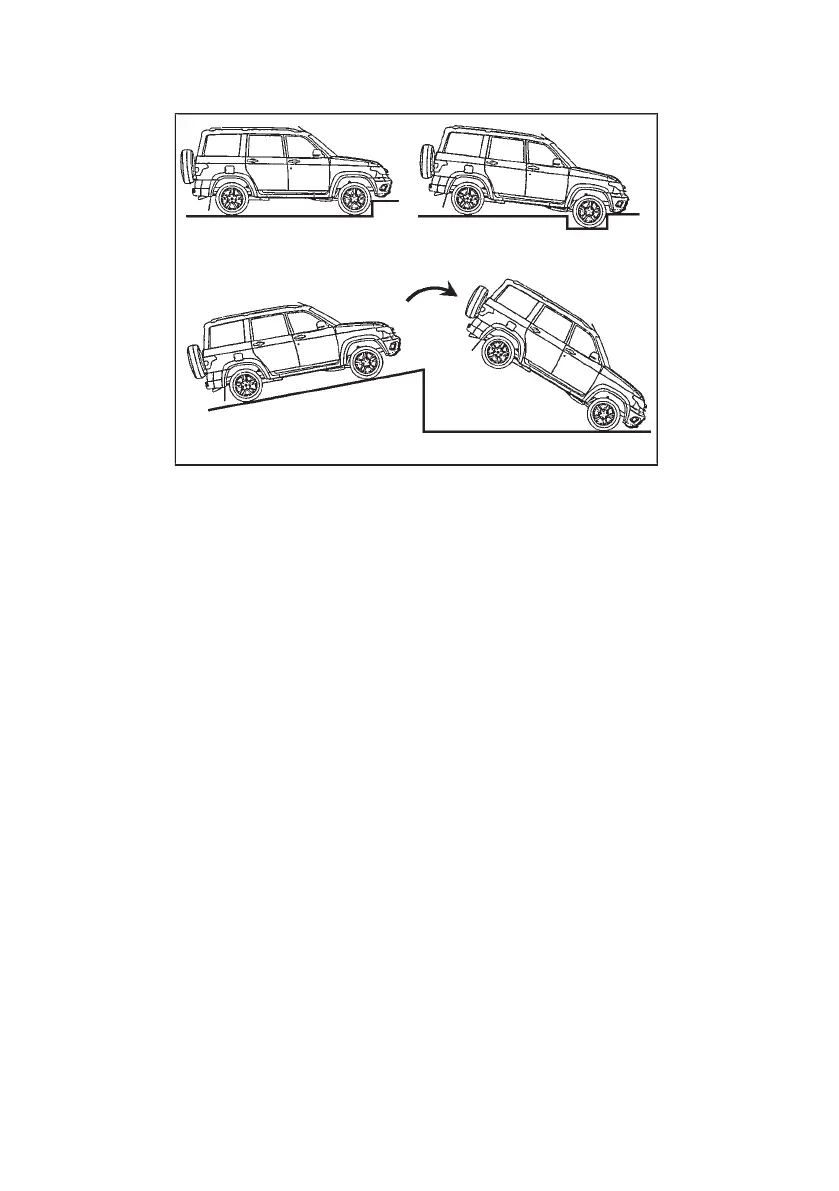

Fig. 3.36. Examples of situations when the driver
and front passenger passive safety system actuates
Bumping into curb,
pavement edge or
solid material
Falling or trembling
at deep holes
Hard ground contact or car falling from brow
