Lighting lamps
Interior lighting is performed by pilot lamps 3 (Fig. 3.25) and
rear interior light 4.
The pilot lamps unit includes sections of individual interior
lighting for the driver and the front passenger. Left and right
sections of individual lighting is switched on by pressing the cor-
responding left 1 (Fig. 3.26) or right 3 switch.
Operation mode of the interior ambient lighting depends on
switch 2 position:

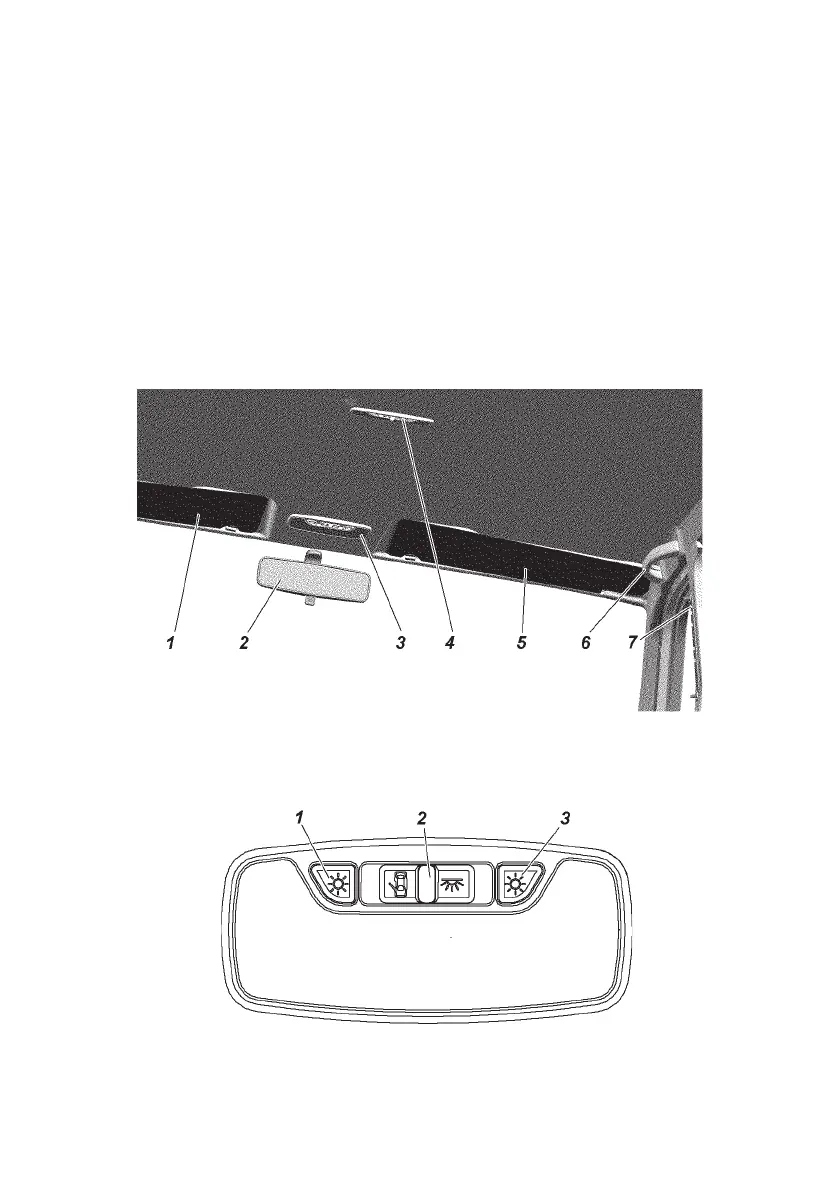

Fig. 3.16. Lighting lamps, interior rearview mirror, sun visors and hand grip:
1, 5 — sun visors; 2 — interior rearview mirror; 3 — pilot lamps unit; 4 — rear
interior lighting lamp; 6 — hand grip; 7 — seatbelt height adjuster
Fig. 3.17 Interior space lighting unit:
1 — left section switch; 2 — general lighting mode switch; 3 — right section switch
