97

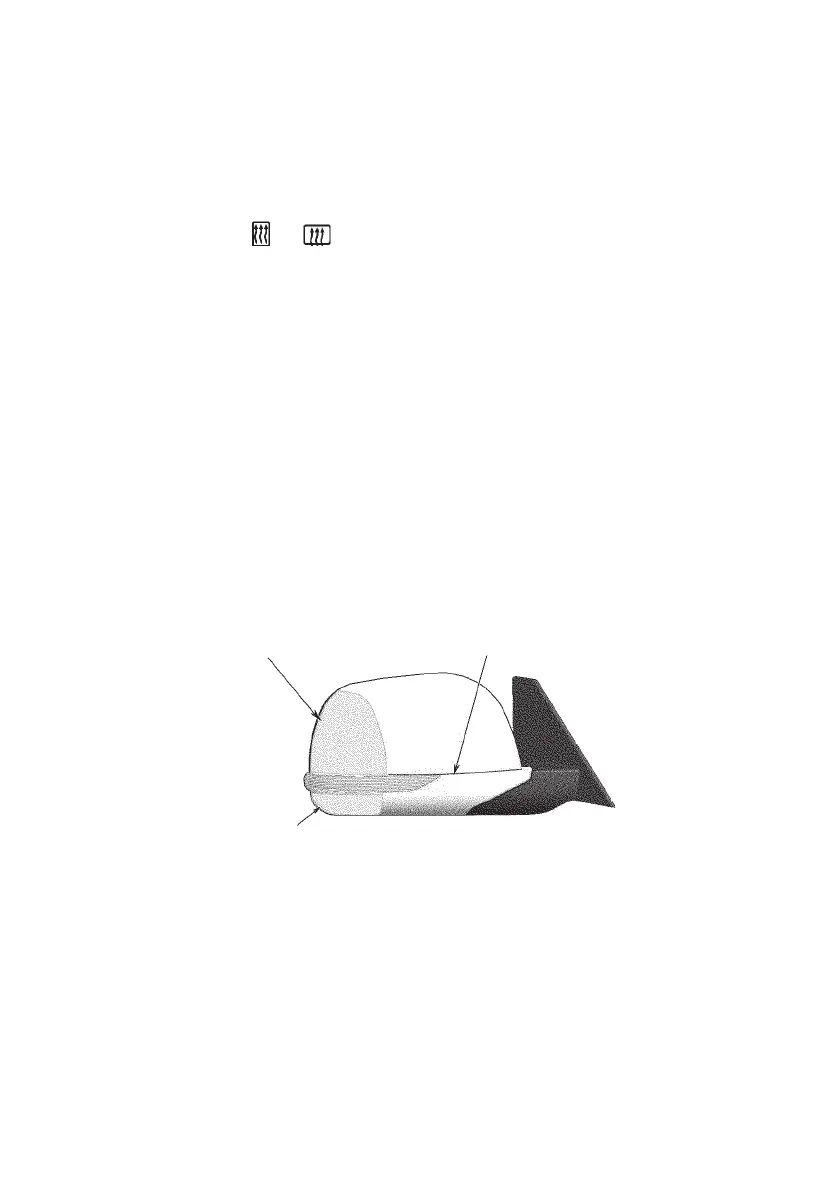

Fig. 3.27. Exterior mirror folding scheme
(for UAZ PATRIOT, UAZ PICKUP)
Exterior rearview mirrors
The exterior mirror optimal position for UAZ PATRIOT,
UAZ PICKUP is selected by switch 9 (see Fig. 3.14, for UAZ
CARGO — manual adjustment. The rearview mirrors are heated
using switch
or located on the instrument cluster.
In order to reduce the motor vehicle size when parking in tight
space, it is necessary to fold in the exterior rearview mirrors to
the side doors of the motor vehicle (for UAZ PATRIOT, UAZ
PICKUP).
The mirror folds by applying force to the most remote from
the base cover or body edge, parallel to the coupling line of the
body and the cover (Fig. 3.27).
Sun visors (Fig. 3.25)
In case of necessity it is recommended that the sun visors be
positioned in either of the two positions: ip the sun visor into its
downward position or ip it down and turn toward the side door.
Coupling line of the body
and the cover
Most remote from the
base cover edge
Most remote from the
base body edge
