LIGHTING CONTROL MODULE

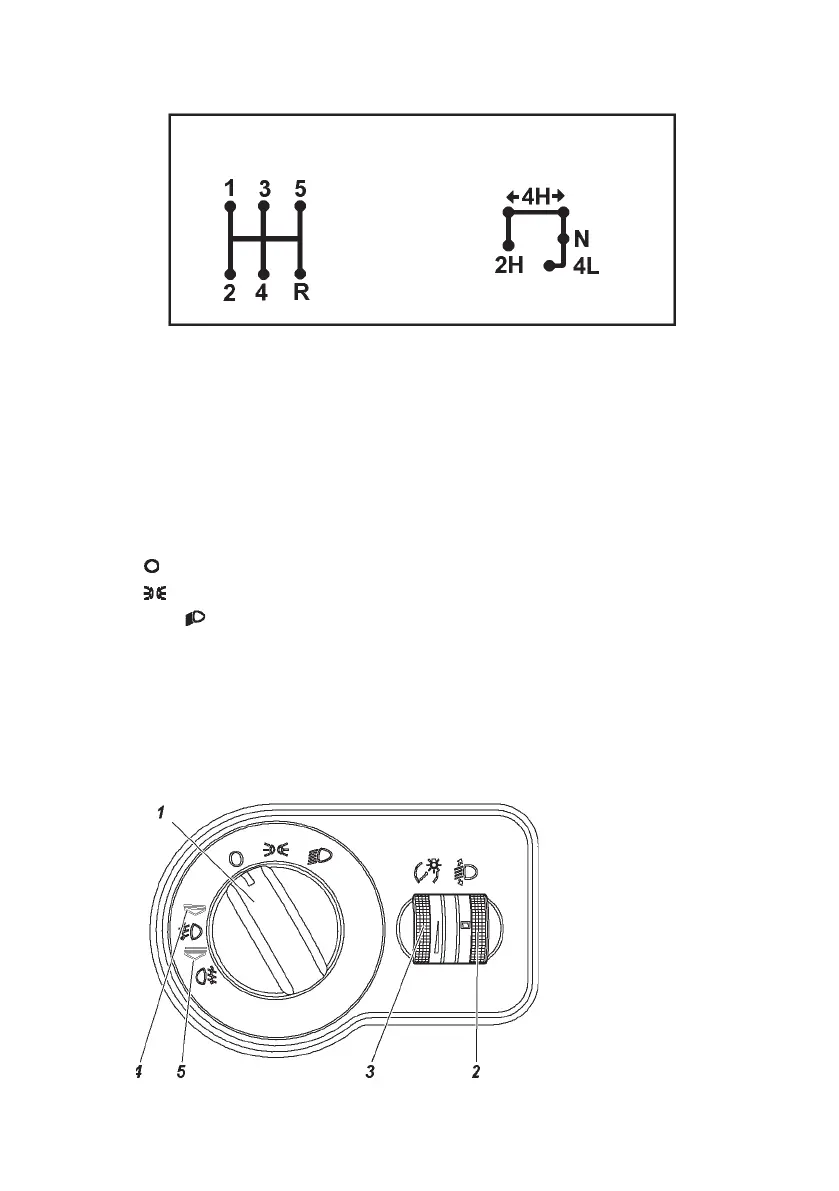

Lighting control module (LCM) is shown in Fig. 3.4.
1 — external lights switch. Has three positions (clockwise):
‘
’ — lighting is OFF (daytime running lights are ON if available);
‘ ’ — tail lamps, license plate light and cluster illuminating are
ON; ‘ ’ — tail lamps, license plate light and cluster illuminating,
headlights are ON.
2 — headlights corrector regulator. By turning the regula-
tor, the headlights light beam inclination tilt angle is corrected
depending on motor vehicle loading: ‘0’ — one driver or a driver
Fig. 3.4. Lighting
indicates control
module (see
item description
in the text)
Fig. 3.3. Positions of the gearbox and transfer case levers:
1–5 — gears; R — reverse gear; 2Н — direct gear, the front axle is disengaged;
4Н — direct gear, the front axle is engaged (the main position — left); N — neutral
position; 4L — the front axle and underdrive are engaged
Gearbox Transfer box
