UAZ PICKUP - Chapter 3: Control Elements, Interior, and Bodyshell Equipment

32
CHAPTER 3. CONTROL ELEMENTS,
MOTOR VEHICLE INTERIOR
AND BODYSHELL EQUIPMENT
Layout of the control elements and the driver’s seat equipment
is shown in Figs. 3.1, 3.2:
1 — steering column with steering wheel, with key blocks,
ignition switch, multi-function switches and steering column
tilt angle and length control lever.
2 — instrument cluster (Fig. 3.5).
3 — steering wheel lining with sound signal switch and
built-in driver’s air-bag module.
4 — air temperature sensor.
5 — solar radiation sensor.
6+ — head unit of multimedia system.

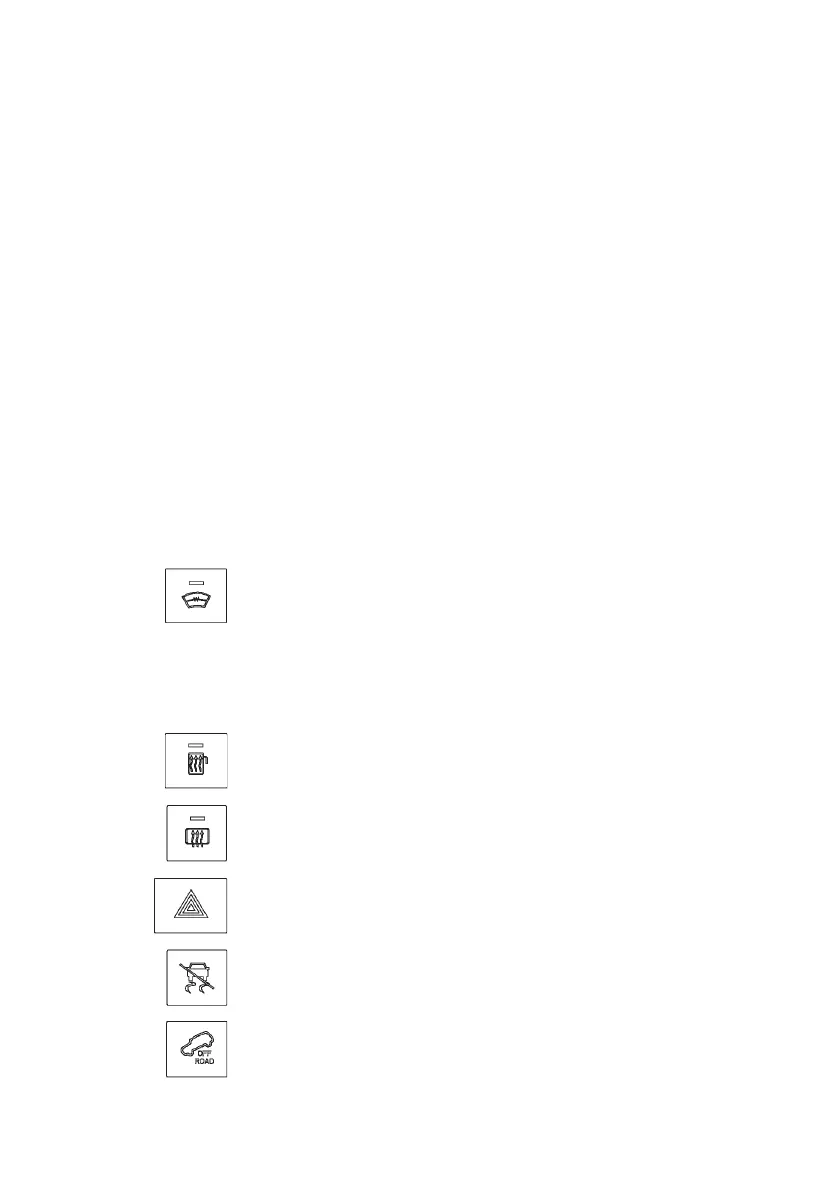

7 — device switches. Set of switches depends on the motor
vehicle package:
Windshield electrical heating switch. Briey press-
ing the switch key with ignition ON sends a signal
to the heating time relay, which actuates the heating
element of the windscreen. Windshield electrical heating will be
switched off in 12±2 min. automatically or when the switch key
is pressed again or when key is off.
Mirror heating switch (for motor vehicles without
rear screen de-mist);
Rear screen de-mist and mirror heating switch;
Alarm signal switch. For triple switch of the alarm
signal short press the switch button twice;
ESP turn-off switch;
Off-road mode switch;
