6 — coolant temperature indicator. Engine operation with
the indicator pointer in the red range is not allowed. Range of
values from 50 °С to 130 °С. Division value 10 °С.
7 — fuel level indicator.
LIGHT ALARM SWITCH
Direction indicators and headlights switch has the following
positions (Fig. 3.6)
I — neutral position. Direction indicators are OFF, low beam is
ON, if forward lighting is switched on by the external light switch;
II — right direction indicators are ON (three blinks). Unstable
position.
III — right direction indicators are ON (stable position).
IV — left direction indicators are ON (three blinks). Unstable
position.
V — left direction indicators are ON (stable position)
VI — pull, headlights high beam ash. Short-time high
beam switch regardless of vehicle light switch position. Unstable
position.
VII — (push) distance light is ON, if forward lighting is switched
on by the vehicle light switch (stable position);

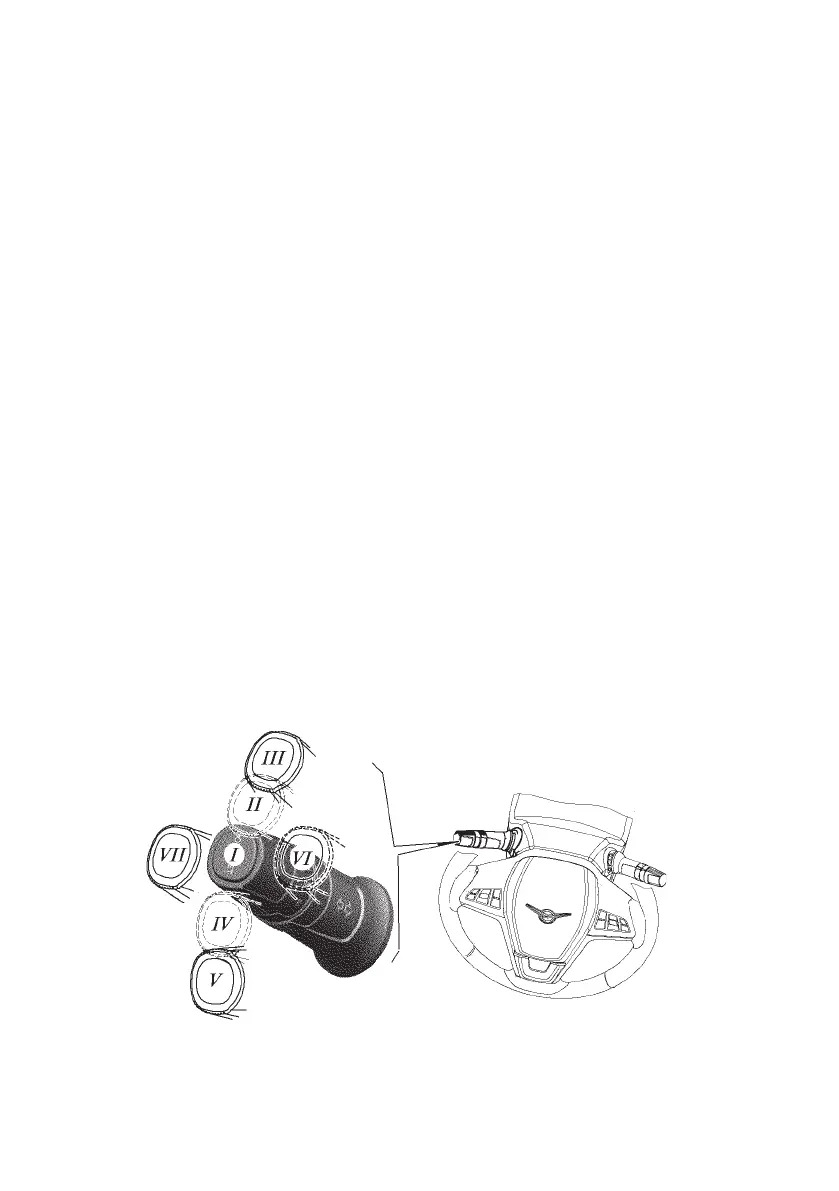

Fig. 3.6. Understeering switch left lever shift scheme at
direction indicators and headlightss control (see items names
in the relevant text)
