51

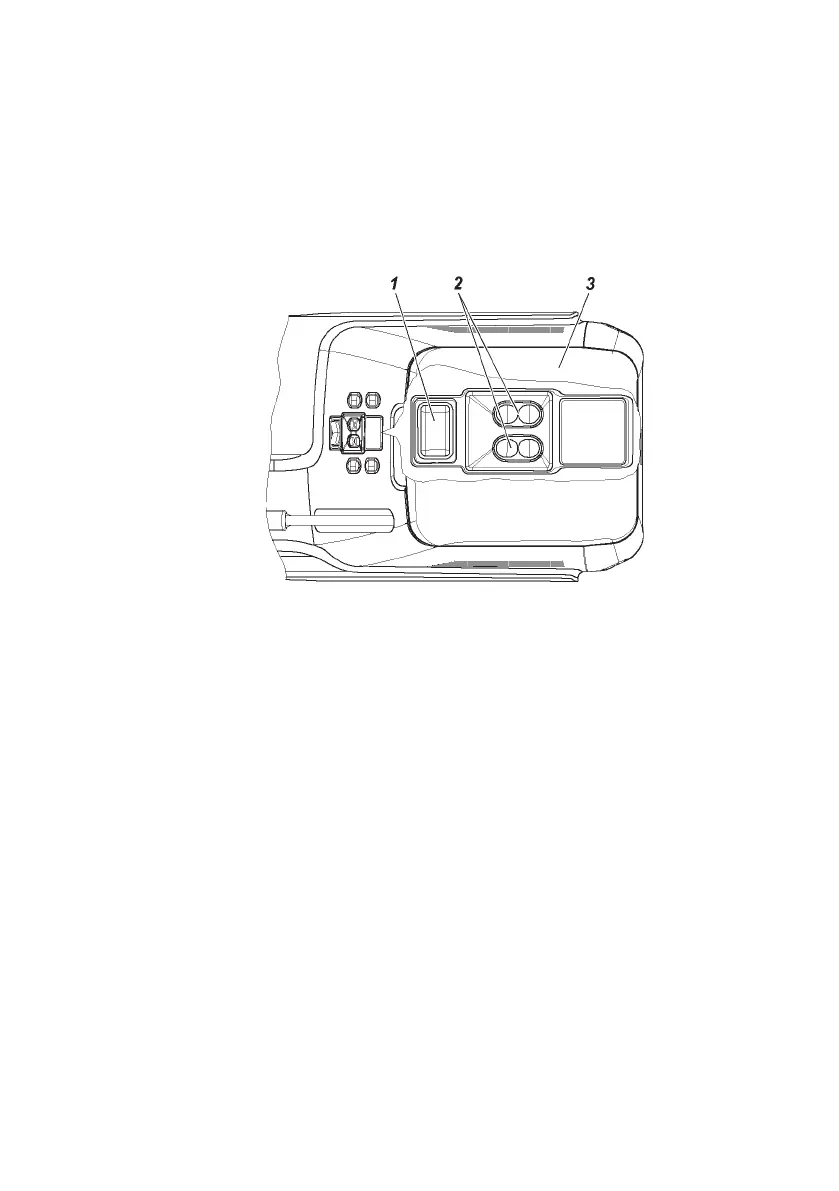

Fig. 3.12. Floor standing box with unit and keys control
(see item description in the text)
Floor standing box for motor vehicle
UAZ CARGO (Fig. 3.12)
1+ — rear wheel differentiallock switch.
2+ — front seat heater switches.
3 — glove box.
MOTOR VEHICLE’S ELECTRONIC ANTI-THEFT SYSTEM
WITH THE ENGINE CONTROL UNIT МЕ 17.9.71
The anti-theft system set includes three ignition keys, in whose
bows the transponders are embedded. The keys are equal in terms
of their functional capabilities. The system allows eight ignition
keys to be registered. The prerequisite for system operation is the
registration of three ignition keys.
The system can be in the ‘neutral’, ‘taught’ and ‘key upgrading’
states with respect to ignition key registration.
‘Neutral’ state — after replacing the engine control unit at a
service station, the system carries out automatic registration of the
ignition keys, for this purpose the ignition should be started up by
each key one by one.
