UAZ PICKUP - Steering Column, Ignition, and Driver Controls

44
Fig. 3.9. Understeering switch right lever:
1 — spacing interval rotary switch;
2 — rear screen washer rotary switch
STEERING COLUMN WITH THE STEERING WHEEL,
MULTI-FUNCTION UNDERSTEERING SWITCH
AND THE IGNITION STARTER SWITCH
Fig. 3.10 shows the steering column with the steering wheel,
the ignition starter switch and the steering wheel rake and reach
adjusting lever.
1 — horn switch. The horn switch is built into the steering
wheel lining, press it avoiding extreme effort, as the horn switch
is combined with the driver’s air bag module.
2 — ignition starter switch has three positions:
0 — parking (stable position);
I — ignition ON (stable position);
II — starter ON (unstable position).

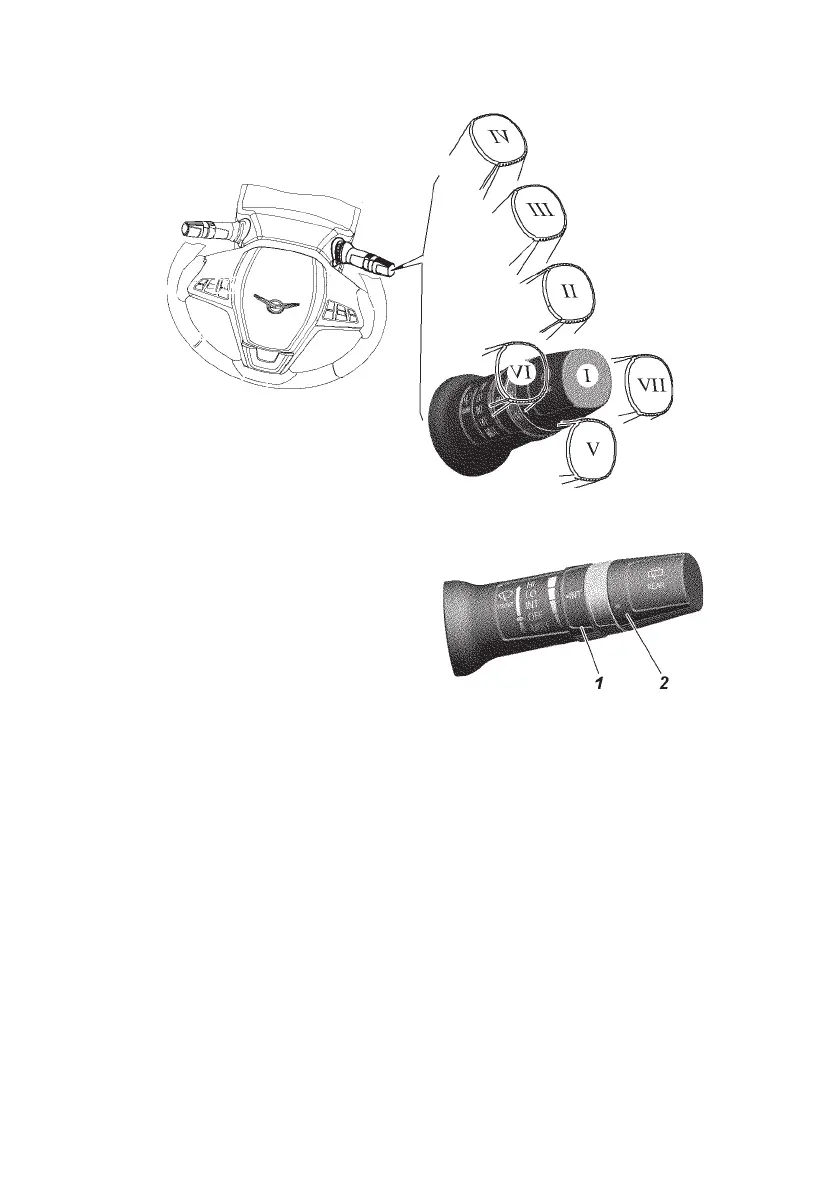

Fig. 3.8 Understeering switch right lever shift scheme at windshield wiper and
washer control (see items names in the relevant text)
