139

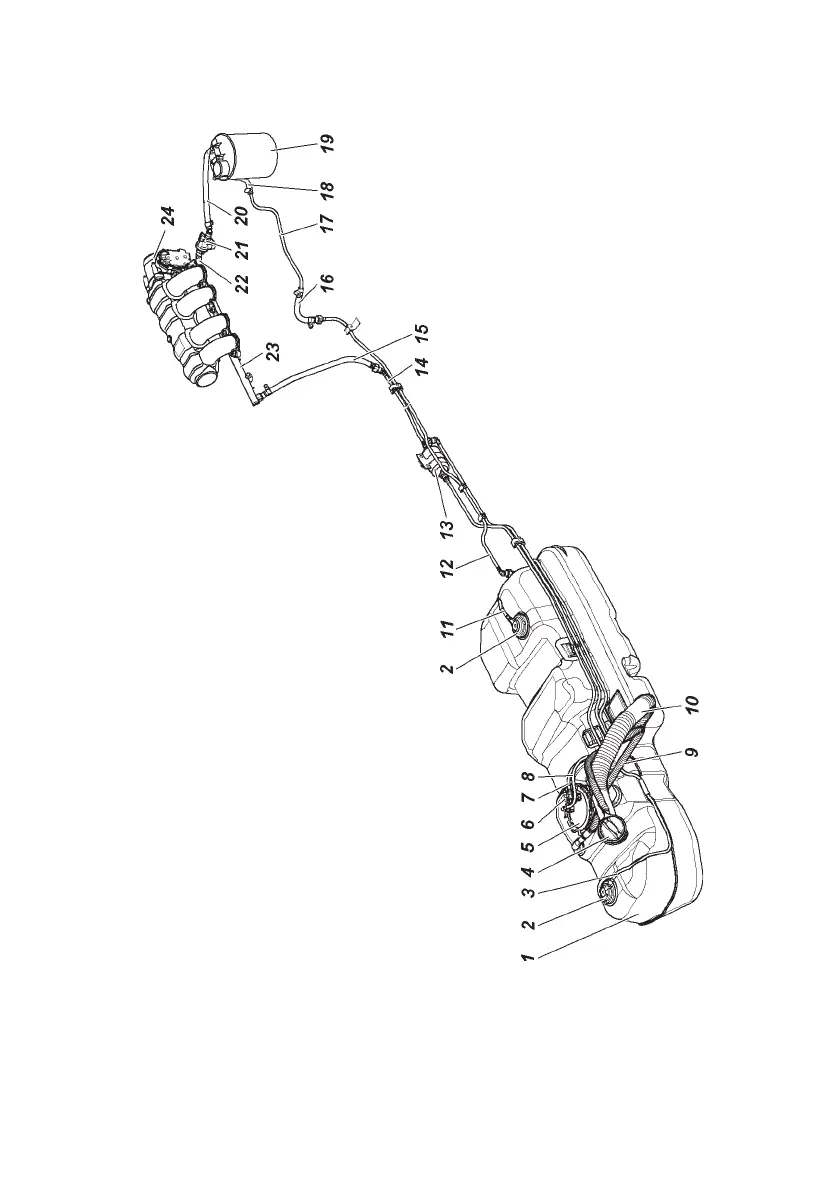

Fig.9.8. Feed system scheme
for Engine ZMZ-40906 by fuel:
1 — fuel tank; 2 — gravity valve; 3, 11, 12, 17 — steam tubes; 4 — fuel tank plug;
5 — submersible module; 6 — fuel supply intake into preheater; 7 — tube from electric
fuel pump to ne fuel lter; 8 — fuel drain tube from ne fuel lter to fuel module;
9, 16, 18, 20 — vapor diversion hoses; 10 — fuel tank ll pipe; 13 — ne fuel lter;
14 — fuel supply tube; 15 — fuel supply hose; 19 -absorber; 21 — absorber blowing
valve; 22 — vapor diversion tube; 23 — fuel rail; 24 — throttling device.
