UAZ PICKUP - Page 146

146

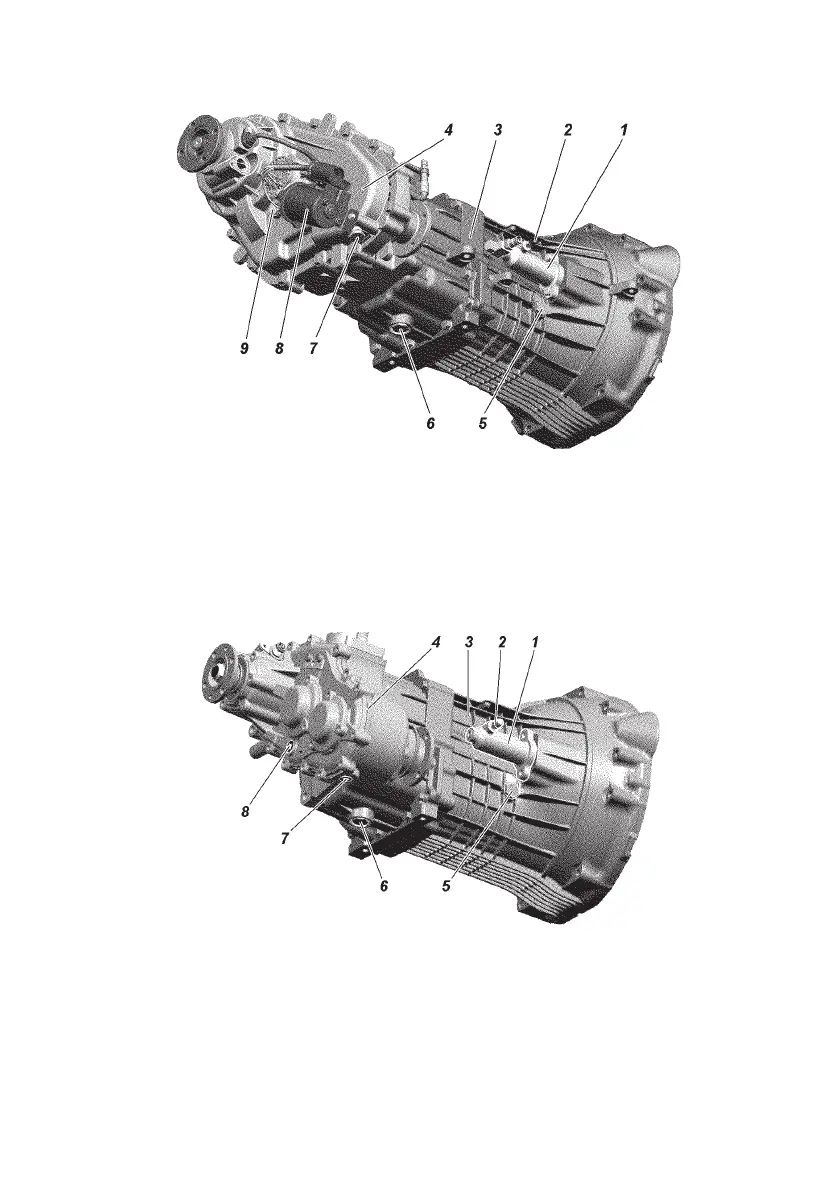

Fig. 9.12. Dymos 5-step gearbox,
Dymos transfer case and clutch release cylinder:
1 — clutch release cylinder; 2 — transfer valve; 3 — gearbox; 4 — transfer case;
5 — gearbox housing ller plug; 6 — gearbox housing drain plug; 7 — transfer case
housing drain plug; 8 — motor drive; 9 — transfer case housing ller plug.
Fig. 9.13. Dymos 5-step gearbox,
UAZ transfer case and clutch release cylinder:
1 — clutch release cylinder; 2 — transfer valve; 3 — gearbox; 4 — transfer case;
5 — gearbox housing ller plug; 6 — gearbox housing drain plug; 7 — transfer case
housing drain plug; 8 — transfer case housing ller plug.
