1 — tachometer with signal devices. The scale red range
indicates exceeding permissible rpm and engine operation in
emergency mode.
Indicators on the tachometer.
— rear wheel differential lock signal device (yellow).
— front parktronic switch signal device (yellow).
— accumulator battery discharge signal device (red).
If it is lit with engine on, it indicates a lack of accumulator battery
charge.
— oil pressure warning signal device of the motor
vehicle’s engine lubrication system (red). Signal device lights up
after starting up the ignition and goes out after starting the engine
at increased crankshaft rpm.

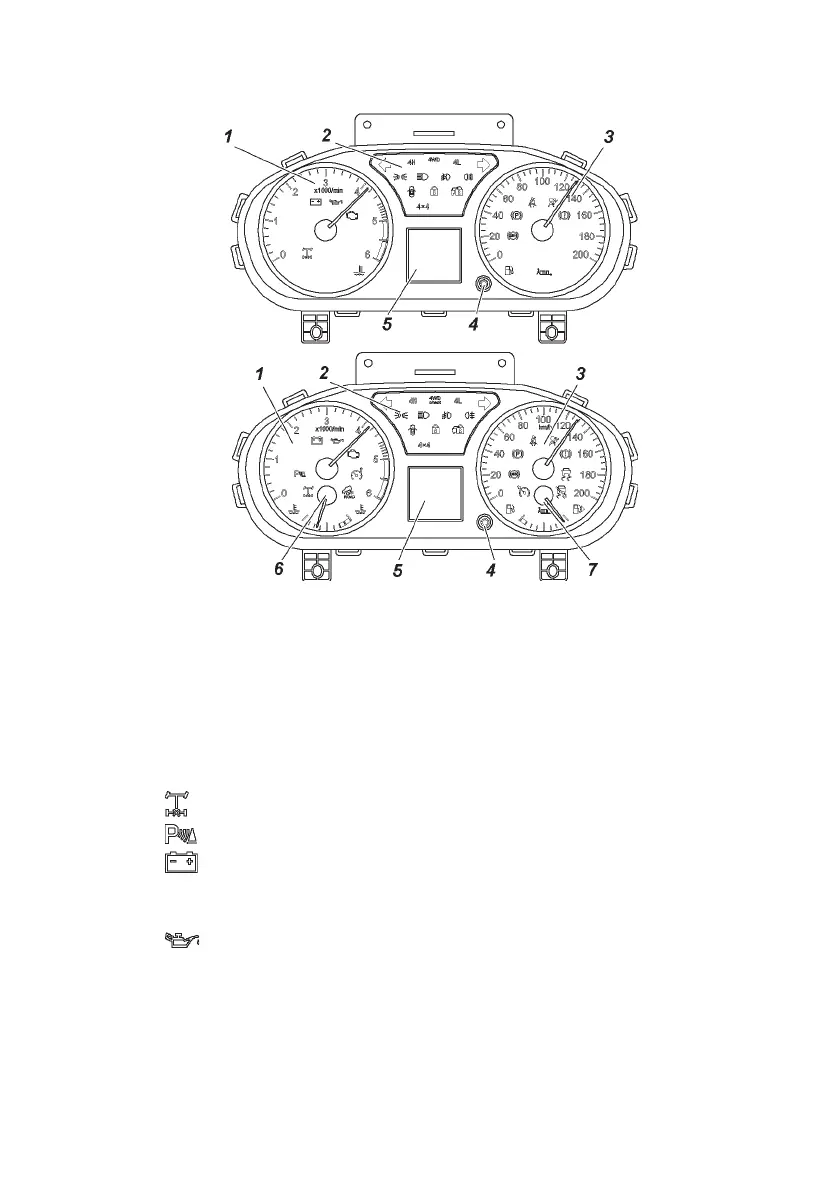

Fig. 3.5. Cluster (see item description in the text):
a — dual-needle; b — four-needle.
