38
IGNITION SWITCH AND METER PANEL (cont’d)
OPTIONAL MULTI-FUNCTION LCD DISPLAY (cont'd)
Meter Panel Explanation (cont'd)
5. Hour Meter Log
The letter presence near the hour meter shows which hour meter
is displayed.
t - total operating time of truck traction, pump or traction pump.
tr - traveling time equal to the total time that the traction motor is
operational.
p - loading time equal to the total time that the pump motor is
operational.

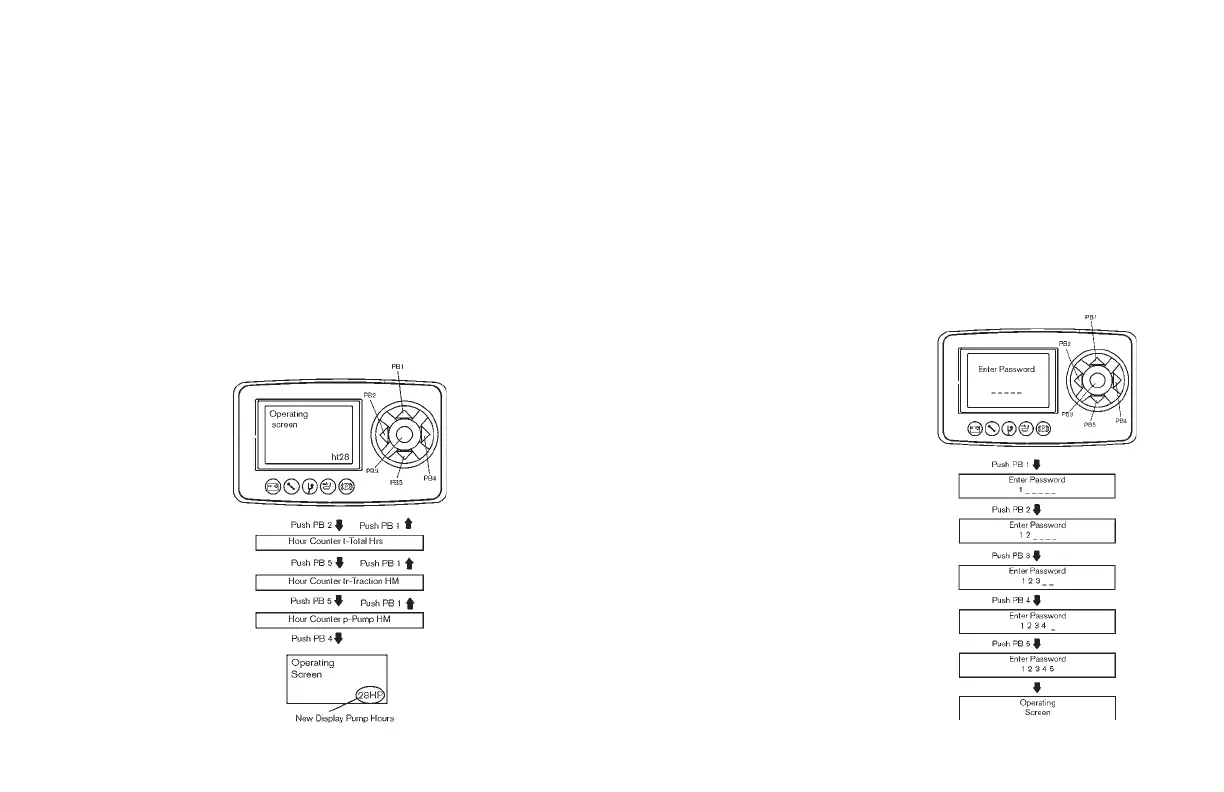

Change Hour Meter Total Hours to Pump
OPERATING CONTROLS AND FUNCTIONS
6. Acceleration Bar Graph
The acceleration level indication is displayed on the central top side
of the unit; it is shown by ten notches. When the acceleration level
is minimum only a notch is displayed, when the accelerator level
is maximum all ten notches are displayed. Each notch represents
1/10 of the difference between.
7. Speedometer
The number displayed under the accelerator notches on the center
of the unit shows the truck speed. The unit can be km/h or mph
depending on the "Speed Unit" parameter setting.
Driver Recognition
Contact your Local Authorized Dealer
to turn this feature on and set up
your driver codes. Once this feature
is on and set up they are very easy
to enter.
