2-1.
Connection of the signal input/output terminal block

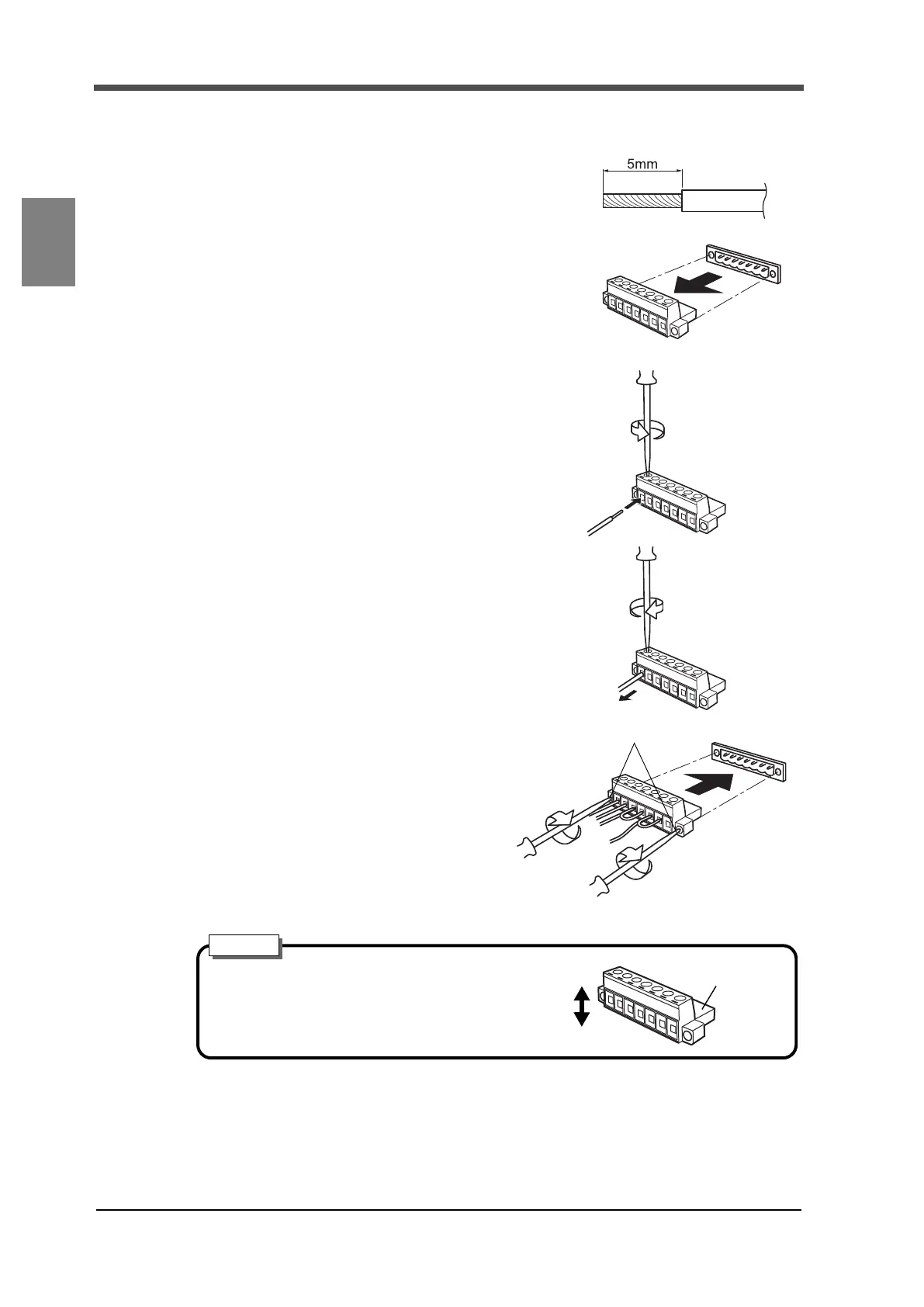

1. Peel the sheath of the wire to be connected 5mm,
and twist the end to such an extent that it will not
become loose.
2. Remove the terminal block from the F331 body
with a strong pull.
3. Loosen the screw with a screwdriver to open the
hole. A screwdriver with a shaft diameter of
3.0mm is recommendable.
(precision screwdriver, etc.)
4. Insert the wire into the hole so as not to loosen
the end.
5. Tighten the screw with the screwdriver.
6. Lightly pull the wire to check that it is clamped
securely.
* Connectable wires are 0.21 - 3.31mm
2
(AWG12 - 24).
Recommendable tightening torque is 0.2 to0.6 Nm.
7. Insert the wire-connected plug into the
F331 body, and tighten the screws
(two).
* The number of pins is 13.
Turn counterclockwise.
Hole
Turn clockwise.
Screws (two)
When mounting the terminal block to the
F331 body, check its vertical orientation.
(See the illustration on the right-hand side.)
Insertion side
UP
DOWN
Attention
