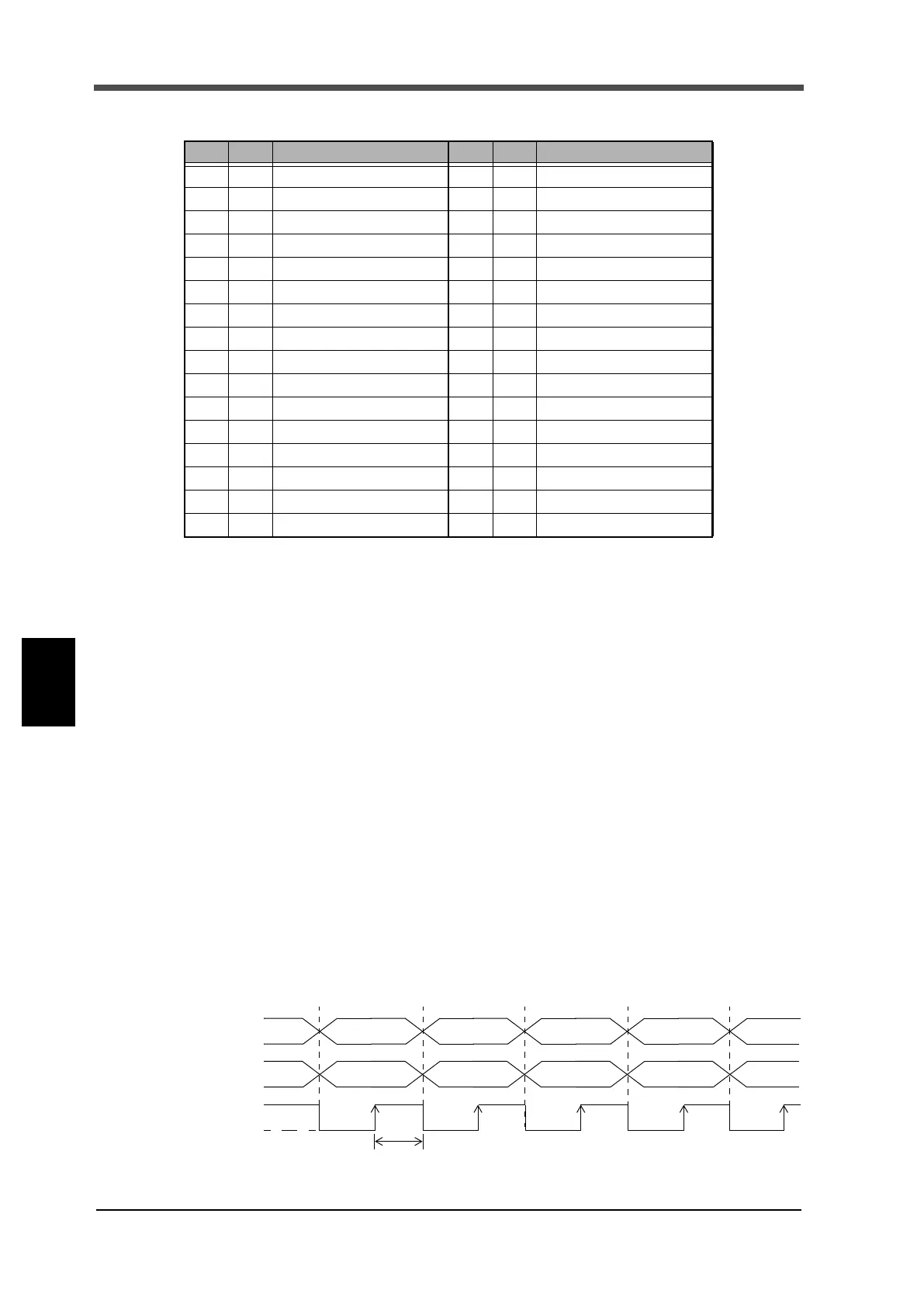

■Connector pin assignment
Compatible connector: FCN-361J032-AU (manufactured by Fujitsu Component or an equivalent)
Connector cover: FCN-360C032-B (manufactured by Fujitsu Component or an equivalent)
Output selection 1, Output selection 2 (Linked with indicated value)
Output signal can be assigned.
Select from OK, NG, HH, HI, LO, and LL.
NZ (Linked with indicated value)
The state of near zero is outputted.
Minus (polarity)
The polarity of the indicated value as BCD data is outputted.
OVER
It is outputted at the time of over scale(-LOAD, +LOAD, OFL1 or OFL2).
STROBE
Strobe pulses are outputted in synchronization with BCD data. Read data using the rising edges (1
→0) of the pulses. The setting of BCD data update rate can be changed.
No. Signal No. Signal
A1 *COMB1 *COM
A2 Out 1 B2 Out 1000
A3 Out 2 B3 Out 2000
A4 Out 4 B4 Out 4000
A5 Out 8 B5 Out 8000
A6 Out 10 B6 Out
A7 Out 20 B7 Out Output selection 1
A8 Out 40 B8 Out Output selection 2
A9 Out 80 B9 Out NZ
A10 Out 100 B10 Out Minus (polarity)
A11 Out 200 B11 Out OVER
A12 Out 400 B12 Out
A13 Out 800 B13 Out STROBE
A14 In BCD data hold B14 In Logic switching
A15 N.C. B15 N.C.
A16 N.C. B16 N.C.
Strobe Range
0
1
BCD data
OVER
STROBE
(duty 50%)
