5 SETTING OF FUNCTIONS
16
SETTING OF FUNCTIONS
Chapter
5

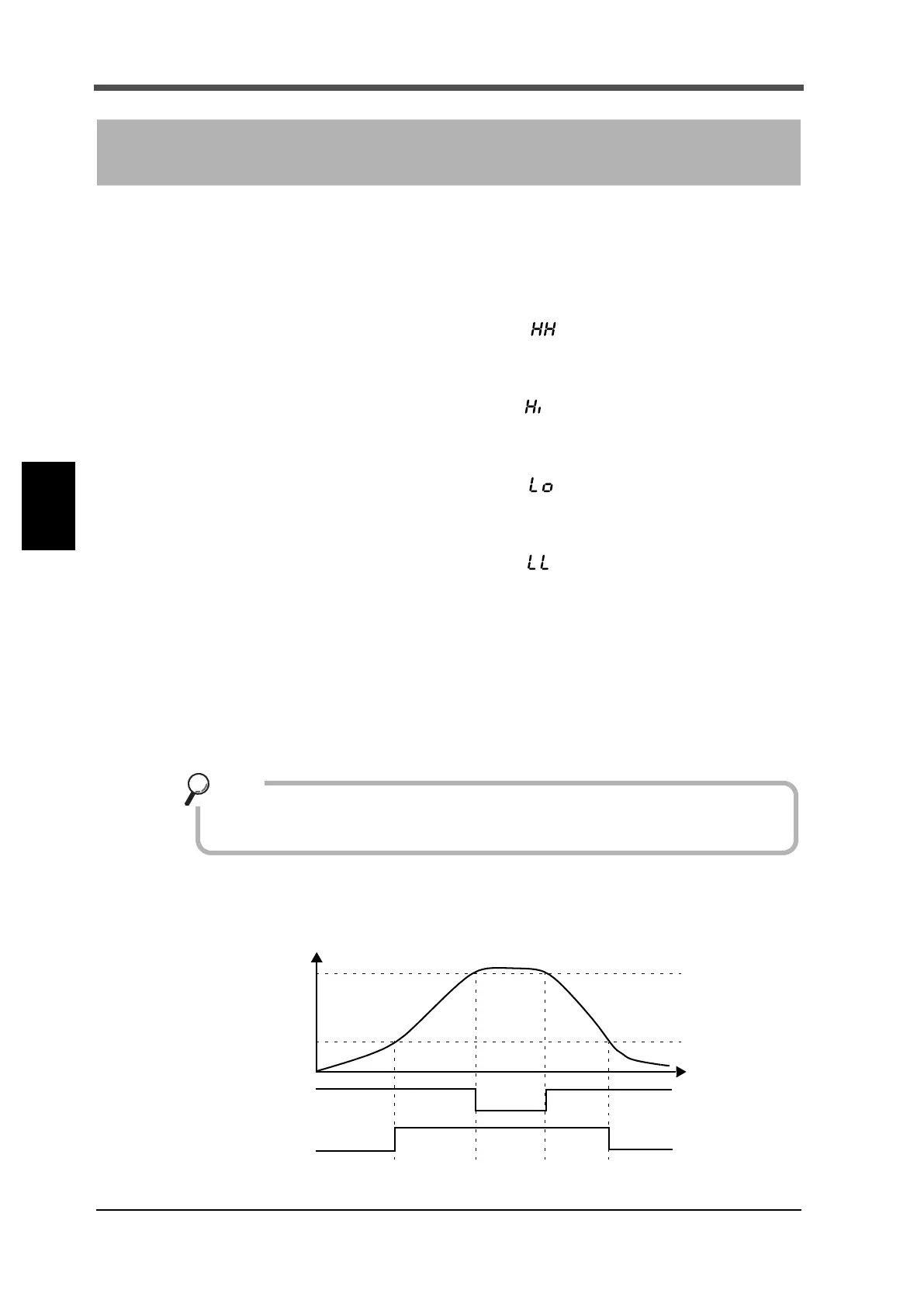

5-1. HI-LO limit comparison
< Comparison conditions >
- HH
ON condition: Indicated value > HH limit value ( ⇔Indicated value displayed alternately)
OFF condition: Indicated value ≦ HH limit value
- HI
ON condition: Indicated value > HI limit value ( ⇔Indicated value displayed alternately)
OFF condition: Indicated value ≦ HI limit value
- LO
ON condition: Indicated value < LO limit value ( ⇔Indicated value displayed alternately)
OFF condition: Indicated value ≧ LO limit value
- LL
ON condition: Indicated value < LL limit value ( ⇔Indicated value displayed alternately)
OFF condition: Indicated value ≧ LL limit value
- OK
ON condition: HH, HI, LO and LL are OFF. (OK lights up)
OFF condition: When either of HH, HI, LO or LL is ON.
- NG
ON condition: When OK is OFF. (OK lights turned off)
OFF condition: When OK is ON.
< The example of HI/LO limit output of operation >
5 SETTING OF FUNCTIONS
- Comparison conditions is a case where a setup of comparison timing is "always".
- Suiting ON condition immediately displays the messages.
Point
Time
Indicated value
HI limit
LO limit
HI
LO
OFF
ON
OFF
ON
