Unipulse F331 - BCD Data Output; 7 Option

24
7 OPTION
24
OPTION
Chapter
7
7-1. BCD data output
The BCD data output interface is used to obtain the indicated value of the F331 as BCD data. It is
convenient for connecting the F331 with a computer, process controller, PLC, etc., to perform
processing, such as controlling, aggregating, and recording.

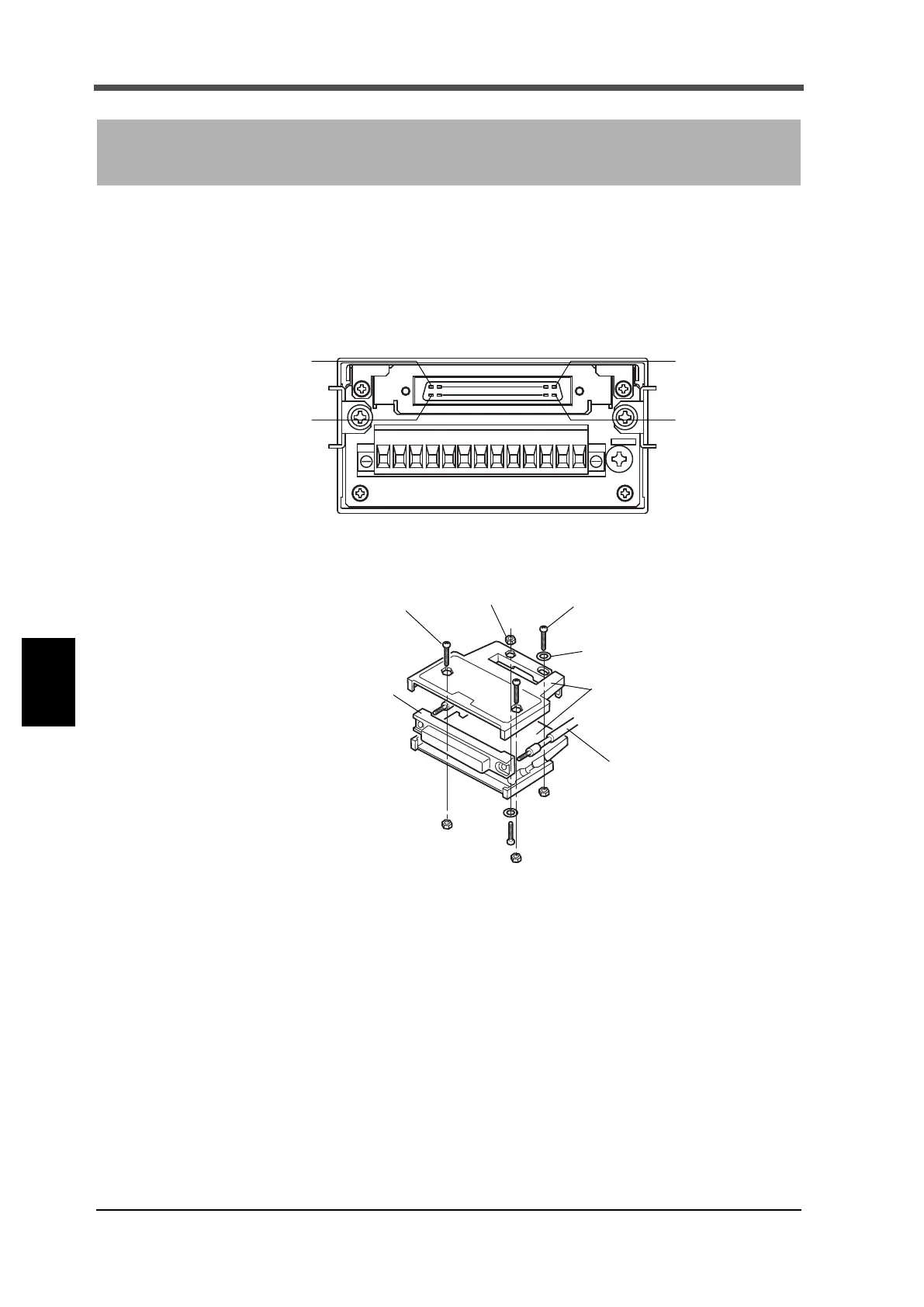

Assembling connector
1. Align the connector and each screw (two) in the groove in one case.
2. Put the other case on it, and fit the cases together.
3. Tighten each M2×8 pan-head machine screw (two).
Tighten each M2×10 pan-head machine screw (two).
Be aware that the M2×10 pan-head machine screw should be combined
with a washer.
7 OPTION
A16
B16
A1
B1
Case (two)
Screw (two)
Connector
M2×10 pan-head machinescrew
M2 nut (four)
Washer (two)
(short) (two) (long) (two)
M2×8 pan-head machine screw
