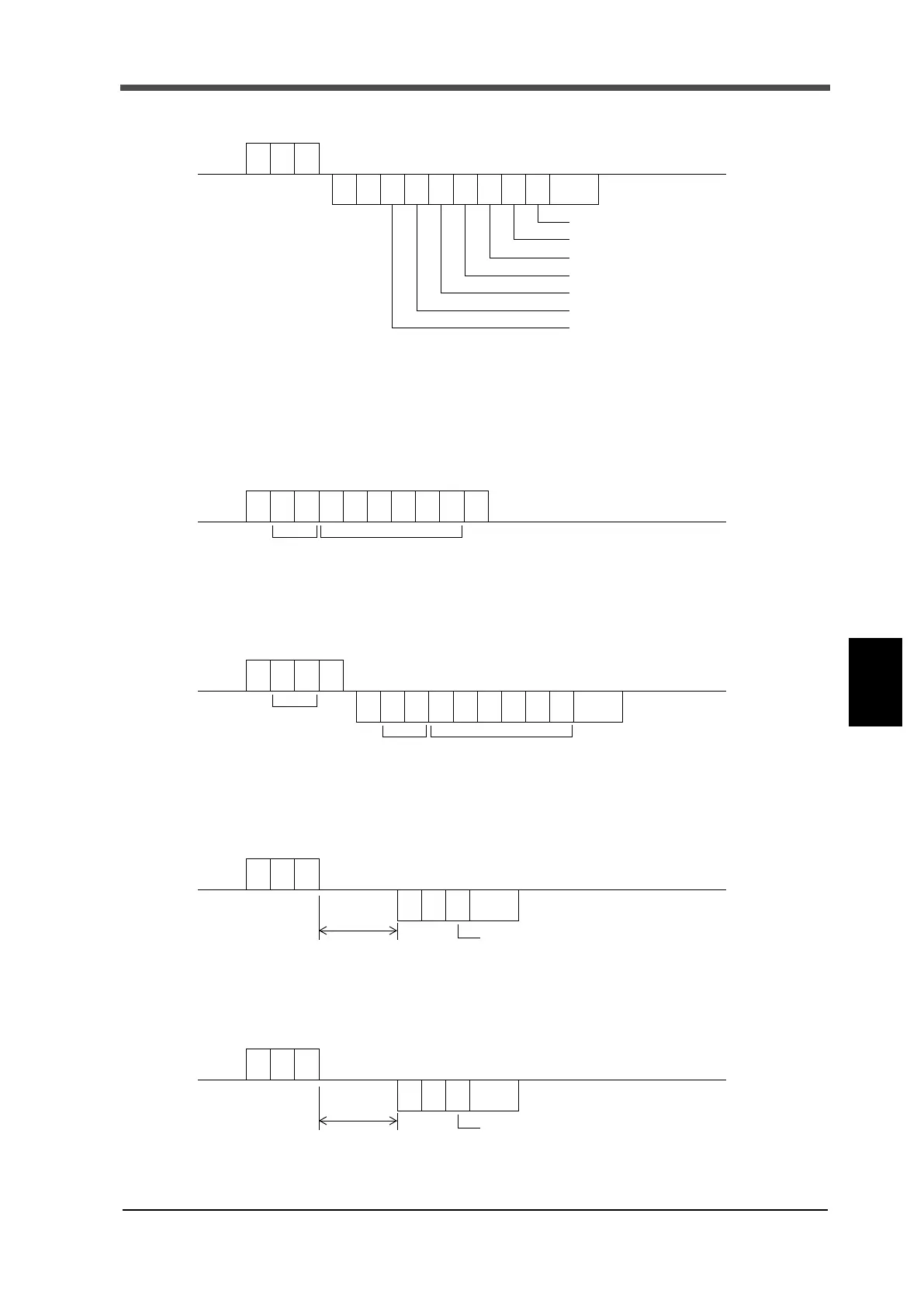

- Status 2
- Write the setting value
* For setting value No., see "■Setting value communication formats" on page 63.
- Read the setting value
* For setting value No., see "■Setting value communication formats" on page 63.
- Zero calibration
- Actual load calibration
Under a hold/ 0: OFF 1: ON
Under a judgment
Host
F331
RD 000 000
RCRD
Delimiter 0
Undefined
NZ
HI
OK
LO
LOCK
0
0: OFF 1: ON
0: OFF 1: ON
0: OFF 1: ON
0: OFF 1: ON
0: Setting value LOCK and calibration value LOCK OFF
1: Only setting value LOCK is turned ON
2: Only calibration value LOCK is turned ON
3: Setting value LOCK and calibration value LOCK ON
* See below
* LOCK
Host
F331
Ｗ
Setting value No. Setting value
CR
* No data returned
(sign, 5-digit, no decimal point)
Host
F331
Ｗ
Ｗ
CR
Setting value No.
Setting valueSetting value No.
(
sign, 5-digit, no decimal point)
Delimiter
Host
F331
CA
N0A
Calibration in progress
CR
0: Normal end
2 - 9: F331 error No.
L: Calibration disabled by calibration LOCK
R: Calibration in progress
Delimiter
Host
F331
CB
N0B
Calibration in progress
CR
0: Normal end
2 - 9: F331 error No.
L: Calibration disabled by calibration LOCK
R: Calibration in progress
Delimiter
