4 & 8 & 16 Channel DVR Operation manual Revision 1.0

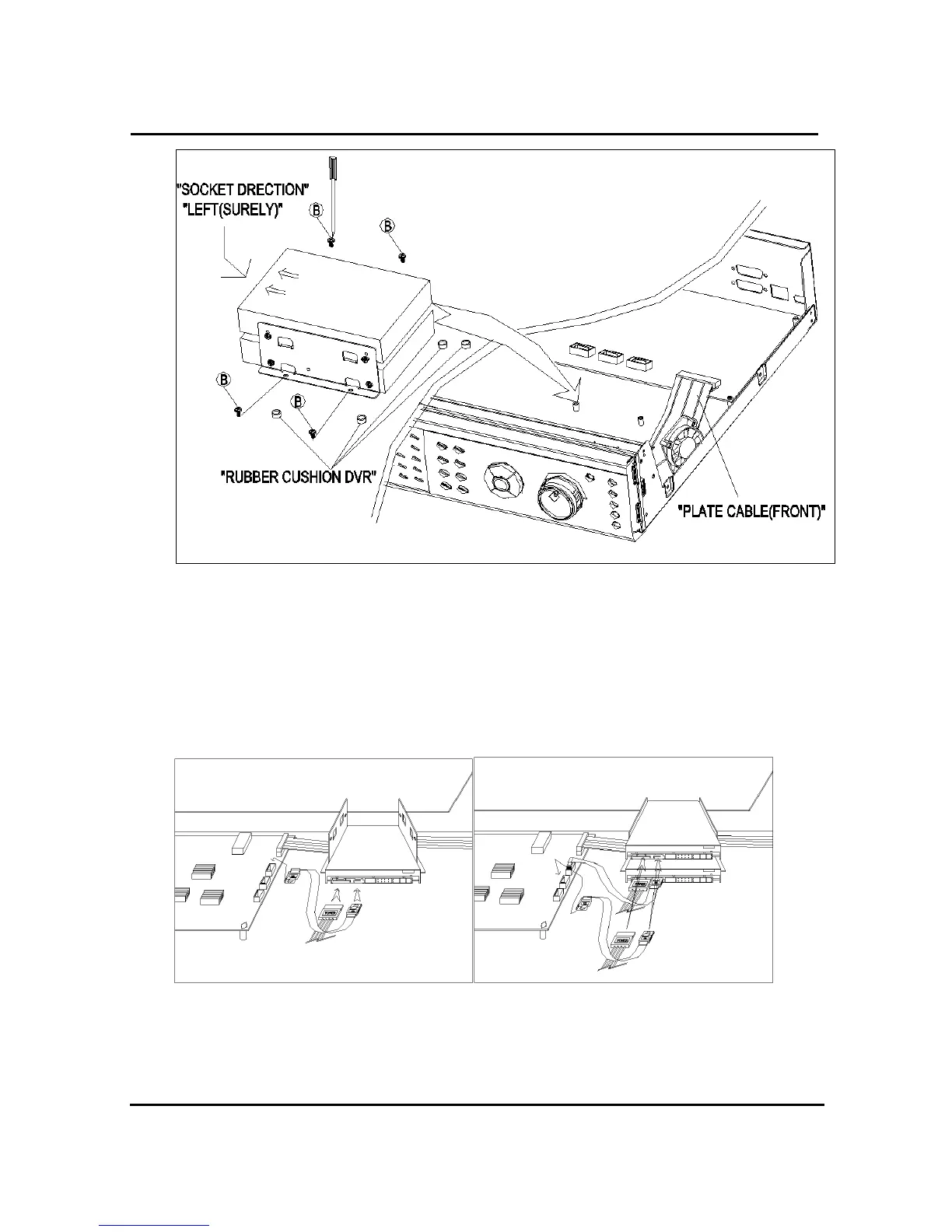

z When you finished to assemble HDD and BRACKET, install assembled HDD set in DVR.
z You can refer to above picture for HDD installation.
z Be careful the connector direction of HDD.
z When you install HDD in a set, be careful to be not hold the FRONT CABLE between HDD
set and DVR.
z You can use the bolt, which you bolt out, when you disassemble DVR.
z This shows installed HDD set in DVR. Be careful the direction.
