4 & 8 & 16 Channel DVR Operation manual Revision 1.0
3.3.3 Alarm input/ Output

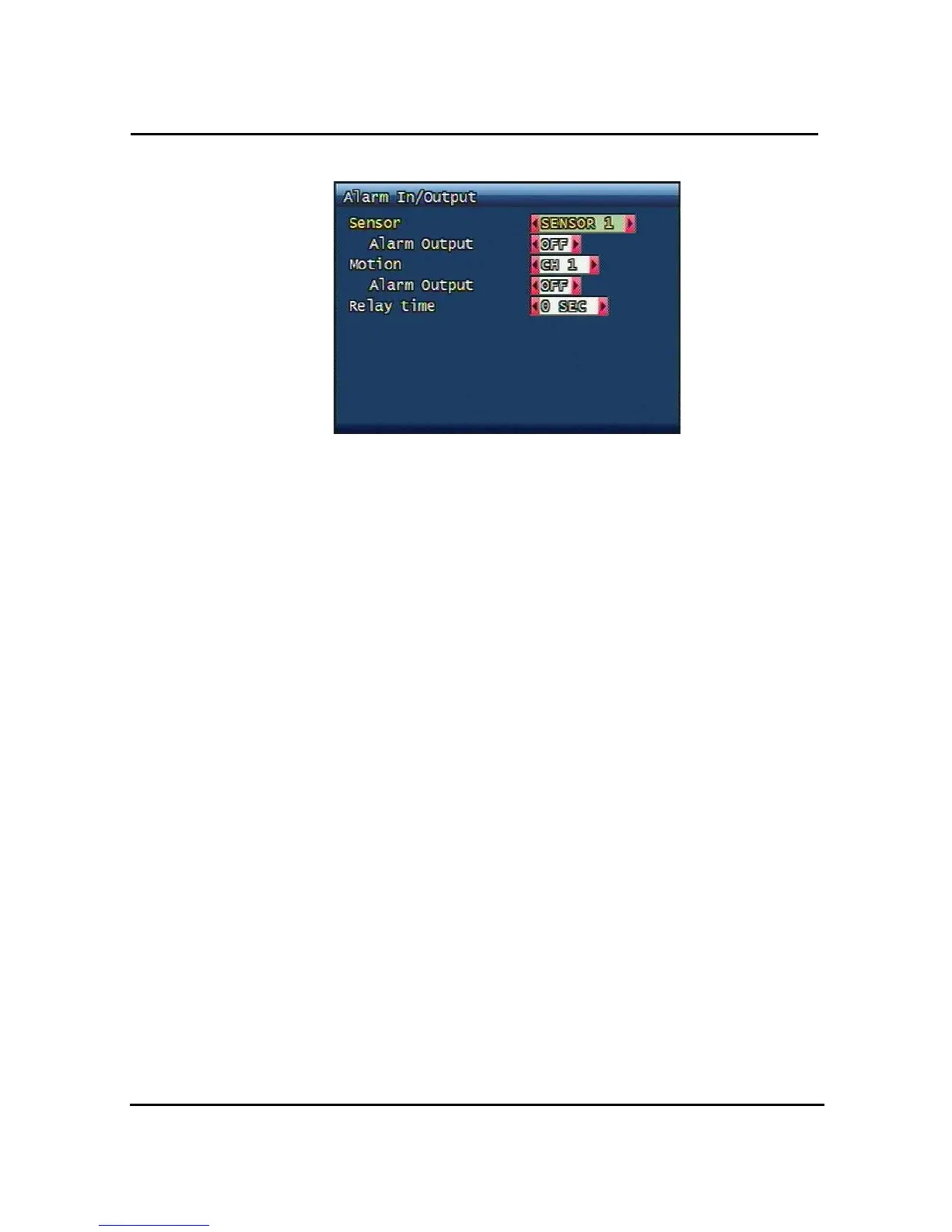

Figure. 3-14 Alarm Output Setting
3.3.3.1 Sensor
Configure the alarm out on/off activated by the sensor.
3.3.3.2 Motion
Configure the alarm out on/off triggered by the motion detection.
3.3.3.3 Relay Time
Configure the alarm duration time. It can be set up from 0 second to 60 seconds in the unit of
5 seconds.
3.3.4 Post Alarm Record Time
Configure the recording continuation time after starting an event recording. It can be set up
from 10 seconds to 60 seconds in the unit of 10 seconds.
3.3.5 E-Mail Address Setting
Transmits the content of an event log periodically through e-mail. Configure up to four e-mail
address to transmit under event status simultaneously.
You can set up to 4 person’s addresses and e-mails will be sent to all of these four at one
time. The e-mail address can contain maximum of 31 characters, and the event logs
transmitted through e-mail will be deleted in the DVR unit.
