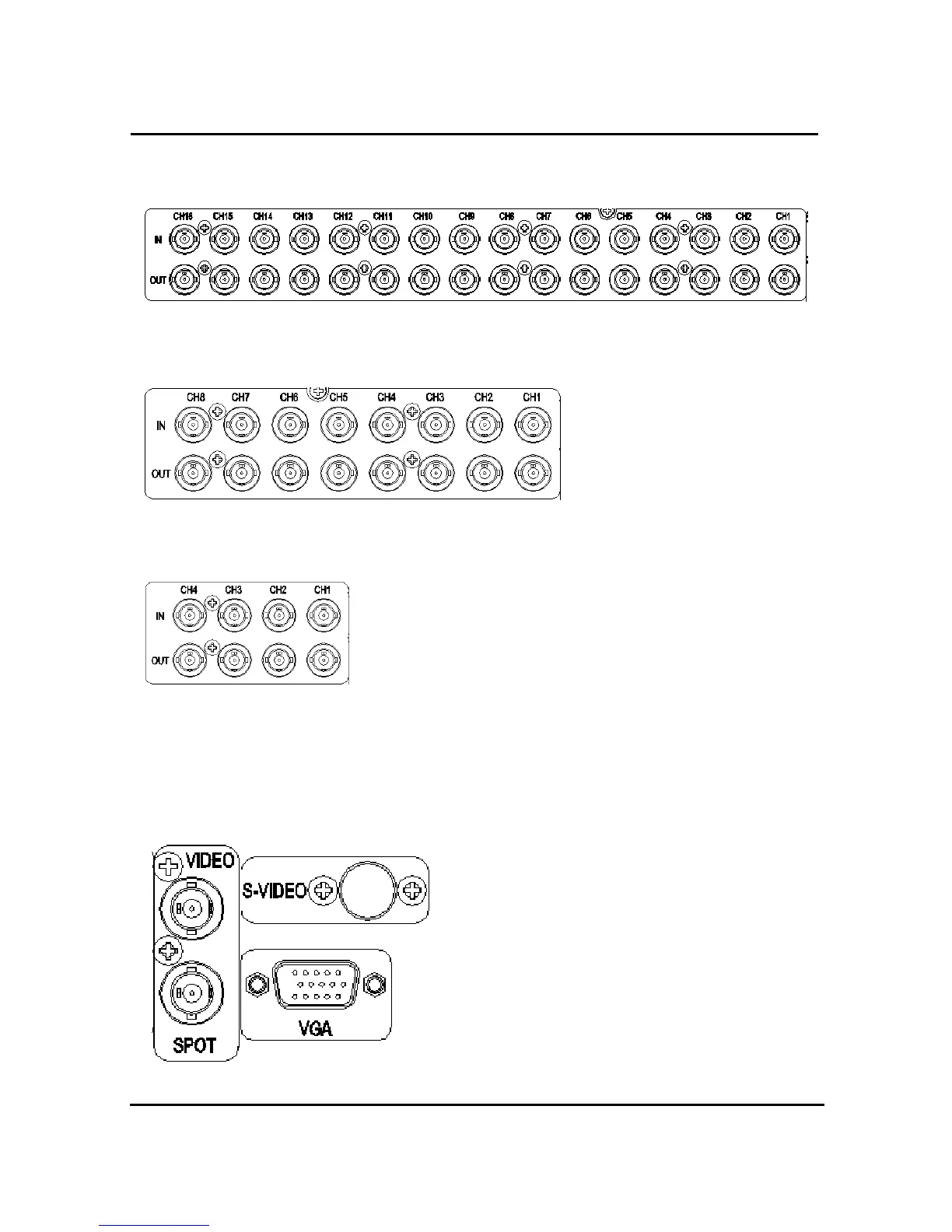

1.5.1.1 Camera

z UDR-416 : It supports 16channel’s Video Input. Upper side is Video Input terminal and

lower side is Loop Out terminal.

z UDR-408 : It supports 8channel Video Input. Upper side is Video Input terminal and

lower side is Loop out terminal.

z UDR-404 : It supports input. Upper side is Video Input terminal and lower side is Loop

Out terminal.

1.5.1.2 Video Out

UDR-404/408/416 models support various type’s output.. Simultaneous output of

CVBS signal, S-VIDEO signal and ANALOG RGB(VGA).

It makes users to select appropriate output type, as they

prefer. And SPOT output also allows to focus on

surveillance function. In addition, it is available to display multi

screen on SPOT function for 8/16 channels.
