Arrow Manual Console Reference 109
48V
When enabled, the 48V switch is red and 48 volts of phantom power is supplied
to the Arrow channel’s rear panel Mic input. Most modern condenser microphones
require 48V phantom power to operate. This option can only be activated when the
Mic/Line switch is set to Mic.
Caution: Activate 48V only with compatible equipment such as phantom powered
microphones. Incompatible equipment can be damaged by the applied voltage.
Depending on the current configuration of the Arrow and Console, there may be a
delay when changing the 48V state to minimize the clicks/pops that are inherent when
engaging phantom power. The +48V LED on Arrow’s top panel flashes during any delay.
Pad
When enabled, the PAD switch is yellow and the channel’s microphone input signal
level is attenuated by 20 dB. Pad does not effect the Line or Hi-Z inputs.
Pad is used to reduce signal levels when overload distortion is present at low
preamp gain levels, such as when particularly sensitive microphones are used on loud
instruments, and/or if the A/D converter is clipping.
Tip: Activate PAD when the input is clipping but preamp gain is at minimum.
Alternately, reduce the output level (if available) of the device connected to
Arrow’s input.
Polarity
When enabled, the polarity (aka “phase”) switch is yellow and the input channel’s
signal is inverted. Polarity affects the Mic, Line, and Hi-Z inputs.
Tip: Polarity inversion can help reduce phase cancellations when more than one
microphone is used to record a single source.

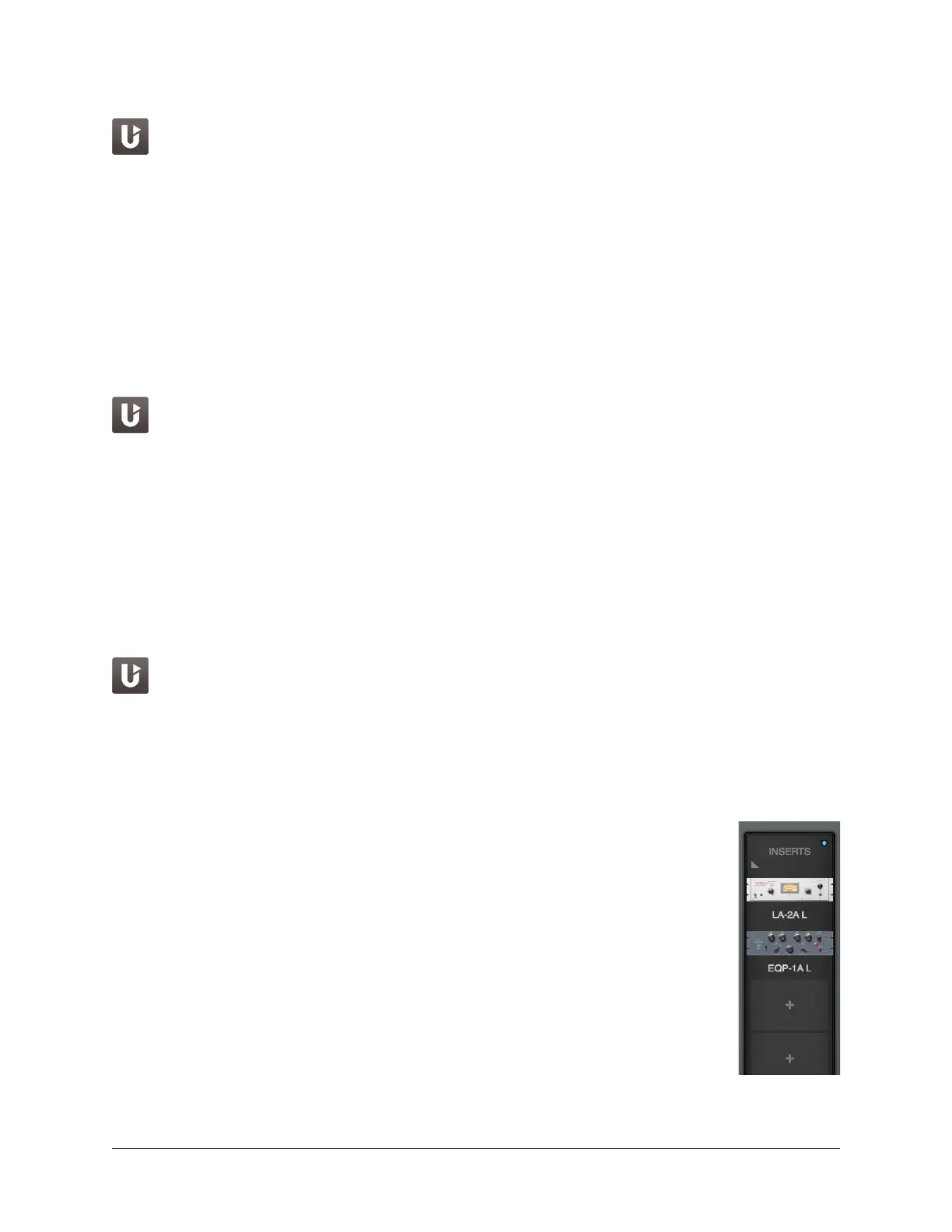

Console Plug-In Insert Controls
All Console plug-in insert slots operate the same way. For complete details
on all insert functionality and operations, see Console Plug-In Inserts.
Console’s
plug-in inserts
