Arrow Manual Console Plug-In Inserts 144
Channel Insert Effects
Note: See the Insert Effects Overview for details about the REC/MON functions.
Channel Insert Effects Switch
This switch determines whether or not Realtime UAD Processing occurring within an
individual Console input is routed to its associated DAW input.
Tip: Insert Effects can be switched for all channels simultaneously with the Global
Insert Effects switch.

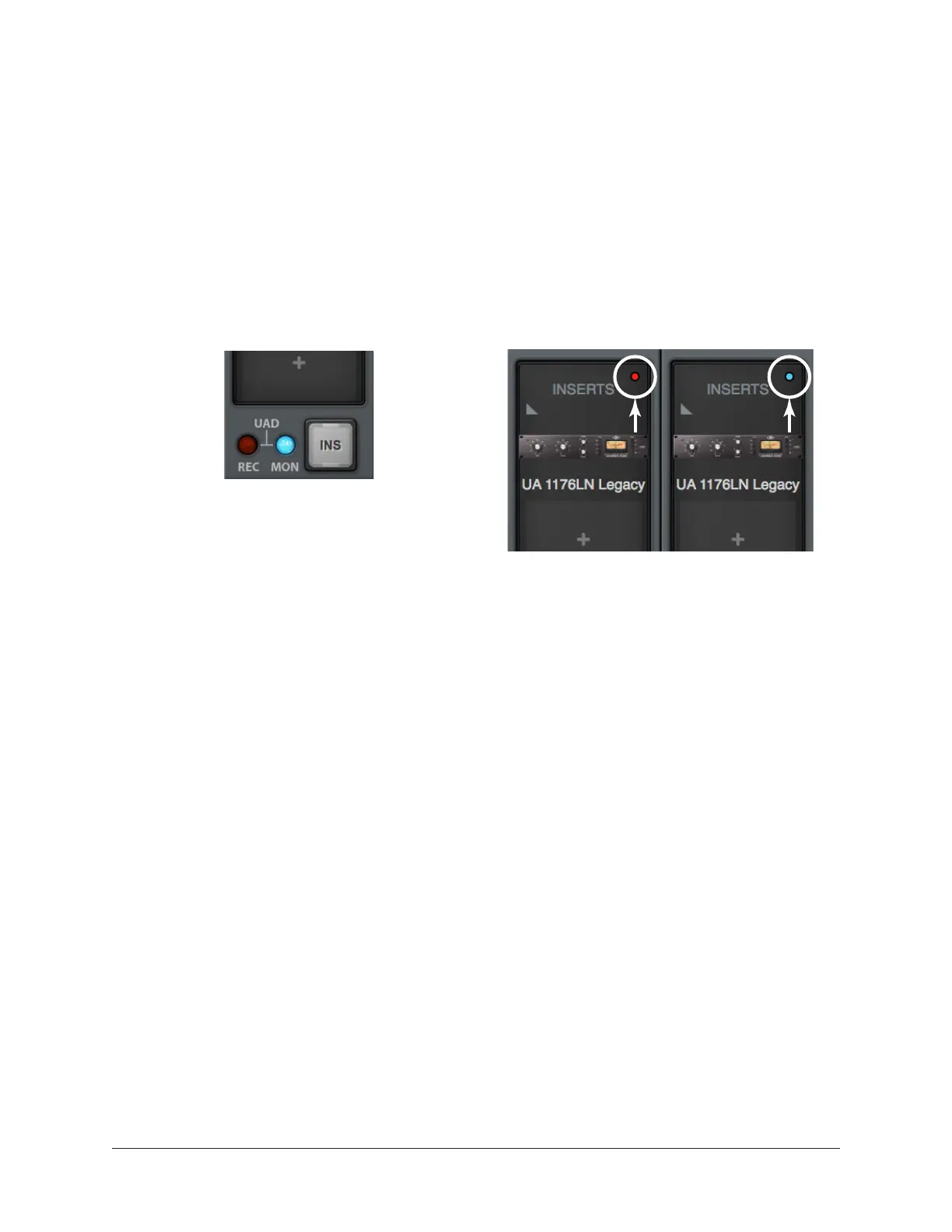

Two channel insert effects switches are available in Console’s inputs. The large channel
insert effects switch (above left) is visible when INSERTS view is selected in the
View Column. A smaller switch, in the form of a colored indicator dot (above right), is
available in both OVERVIEW and INSERTS views. For either type of switch, click the
switch to change the REC/MON state.
Switch Indicator Colors
REC (print wet) – The indicator is RED and UAD processing in all inserts in the channel
is routed to the DAW.
MON (print dry) – The indicator is BLUE and the unprocessed signal is routed to the
DAW and UAD processing is heard in monitor outputs only.
Important: UAD plug-in processing in Console’s Unison insert(s) is always routed
to the DAW regardless of the current Insert Effects setting (Unison processing is
always recorded).
Channel Insert Effects Switch
(INSERTS view only)
Channel Insert Effects Switch
(OVERVIEW & INSERTS views)
